Hexagon domed cap nut

15
.
09
NKO

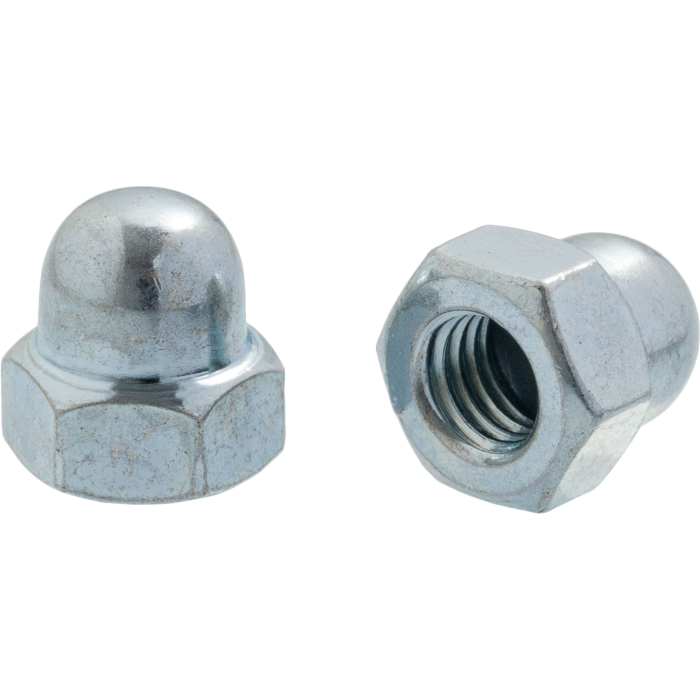

The Hexagon domed cap nut is a specially designed fastening component that is used in applications where both aesthetic and functional finishes are required. Its design allows for the concealment and protection of the connection, providing an attractive appearance.

Applications:

The Hexagon domed cap nut is ideal for applications where an aesthetically pleasing finish and protection of fastening elements are essential. It is widely used in industries such as manufacturing, construction, automotive, and other sectors where connections require enhanced visual appeal.

Features and Benefits:

  • The cap design conceals the connection and provides an attractive appearance.
  • The hexagonal shape facilitates easy installation, removal, and access to connections.
  • Provides an aesthetic and functional finish to the connection.
  • Made from durable materials, ensuring resistance to loads and environmental conditions.
  • Available in various sizes and strength grades to suit different applications.
  • Easy to install and integrate with other fastening components.
  • High-quality craftsmanship and long-lasting durability.
View in store
DOWNLOADABLE DOCUMENTS
Declarations of conformity

Recommended

Group
1509

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

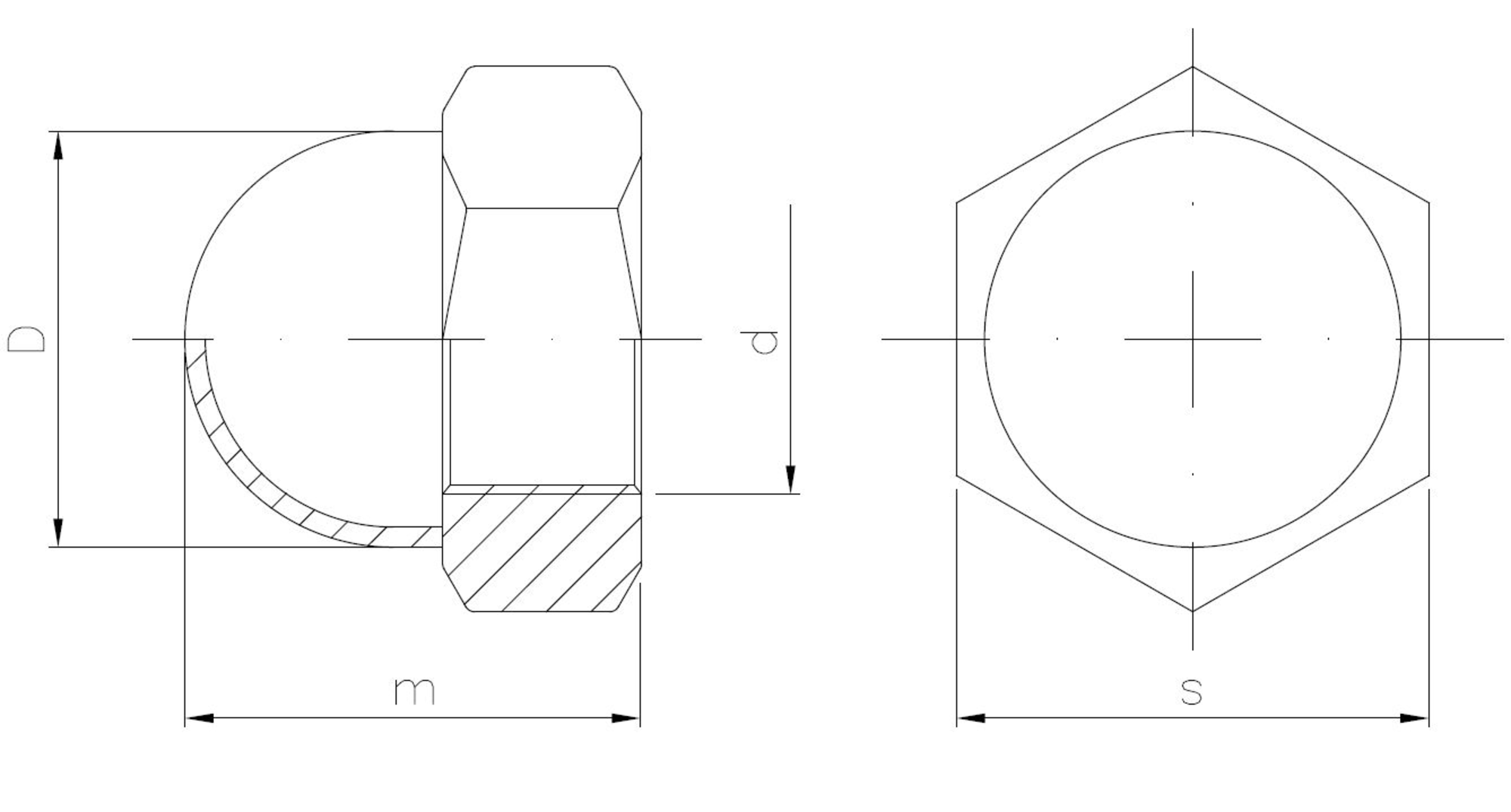

Thread diameter d [mm]
Height m [mm]
Class of mechanical properties
Type
Variety of coating
Key size s [mm]
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Thread diameter d [mm] Height m [mm] Class of mechanical properties Type Variety of coating Key size s [mm] Standard Unit of measure Availability Show More
1509030BT
M3 6.0 6 Ordinary white zinc plating 5.5 DIN 1587 THS
1509030MT
M3 6.0 6 Ordinary brass plating 5.5 DIN 1587 THS
1509040BT
M4 8.0 6 Ordinary white zinc plating 7.0 DIN 1587 THS
1509040MT
M4 8.0 6 Ordinary brass plating 7.0 DIN 1587 THS
1509040RCT
M4 8.0 6 Ordinary RC - black flake 7.0 DIN 1587 THS
1509040ST
M4 8.0 6 Ordinary raw 7.0 DIN 1587 THS
1509050B08D986T
M5 10.5 8 Self-counter white zinc plating 8.0 DIN 986 THS
1509050BD1587K
M5 10.0 6 Ordinary white zinc plating 8.0 DIN 1587 KG
1509050BT
M5 10.0 6 Ordinary white zinc plating 8.0 DIN 1587 THS
1509050MT
M5 10.0 6 Ordinary brass plating 8.0 DIN 1587 THS
1509050RCT
M5 10.0 6 Ordinary RC - black flake 8.0 DIN 1587 THS
1509060B08D986T
M6 12.0 8 Self-counter white zinc plating 10.0 DIN 986 THS
1509060BD1587K
M6 12.0 6 Ordinary white zinc plating 10.0 DIN 1587 KG
1509060BT
M6 12.0 6 Ordinary white zinc plating 10.0 DIN 1587 THS
1509060MT
M6 12.0 6 Ordinary brass plating 10.0 DIN 1587 THS
1509060RCT
M6 12.0 6 Ordinary RC - black flake 10.0 DIN 1587 THS
150906B08PPBD986T
M6 12.0 8 Ordinary white zinc plating 10.0 DIN 1587 THS
1509080B08D986T
M8 14.0 8 Self-counter white zinc plating 13.0 DIN 986 THS
1509080BD1587K
M8 15.0 6 Ordinary white zinc plating 13.0 DIN 1587 KG
1509080BT
M8 15.0 6 Ordinary white zinc plating 13.0 DIN 1587 THS
1509080MT
M8 15.0 6 Ordinary brass plating 13.0 DIN 1587 THS
1509080RCT
M8 15.0 6 Ordinary RC - black flake 13.0 DIN 1587 THS
1509100B08D986T
M10 18.1 8 Self-counter white zinc plating 17.0 DIN 986 THS
1509100BD1587K
M10 18.0 6 Ordinary white zinc plating 17.0 DIN 1587 KG
1509100BT
M10 18.0 6 Ordinary white zinc plating 17.0 DIN 1587 THS
1509100MT
M10 18.0 6 Ordinary brass plating 17.0 DIN 1587 THS
1509100RCT
M10 18.0 6 Ordinary RC - black flake 17.0 DIN 1587 THS
1509100SD1587T
M10 18.0 6 Ordinary raw 17.0 DIN 1587 THS
1509120B08D986T
M12 22.5 8 Self-counter white zinc plating 19.0 DIN 986 THS
1509120BD1587K
M12 22.0 6 Ordinary white zinc plating 19.0 DIN 1587 KG
1509120BT
M12 22.0 6 Ordinary white zinc plating 19.0 DIN 1587 THS
1509120MT
M12 22.0 6 Ordinary brass plating 19.0 DIN 1587 THS
1509120RCT
M12 22.0 6 Ordinary RC - black flake 19.0 DIN 1587 THS
1509140BS
M14 25.0 6 Ordinary white zinc plating 22.0 DIN 1587 PCS
1509140BT
M14 25.0 6 Ordinary white zinc plating 22.0 DIN 1587 THS
1509160B08D986T
M16 27.5 8 Self-counter white zinc plating 24.0 DIN 986 THS
1509160BS
M16 28.0 6 Ordinary white zinc plating 24.0 DIN 1587 PCS
1509160BT
M16 28.0 6 Ordinary white zinc plating 24.0 DIN 1587 THS
1509160MT
M16 28.0 6 Ordinary brass plating 24.0 DIN 1587 THS
1509200BD1587S
M20 34.0 6 Ordinary white zinc plating 30.0 DIN 1587 PCS
1509200BT
M20 34.0 6 Ordinary white zinc plating 30.0 DIN 1587 THS
1509200SD1587S
M20 34.0 6 Ordinary raw 30.0 DIN 1587 PCS
1509240BT
M24 42.0 6 Ordinary white zinc plating 36.0 DIN 1587 THS
1509240SD1587S
M24 42.0 6 Ordinary raw 36.0 DIN 1587 PCS
1509300BT
M30 50.0 6 Ordinary white zinc plating 46.0 DIN 1587 THS
1509300SD1587S
M30 50.0 6 Ordinary raw 46.0 DIN 1587 PCS
1509300SD917T
M30 50.0 6 Blind raw 46.0 DIN 917 THS
