Hexagon socket lowered socket cap screw INOX

I11

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

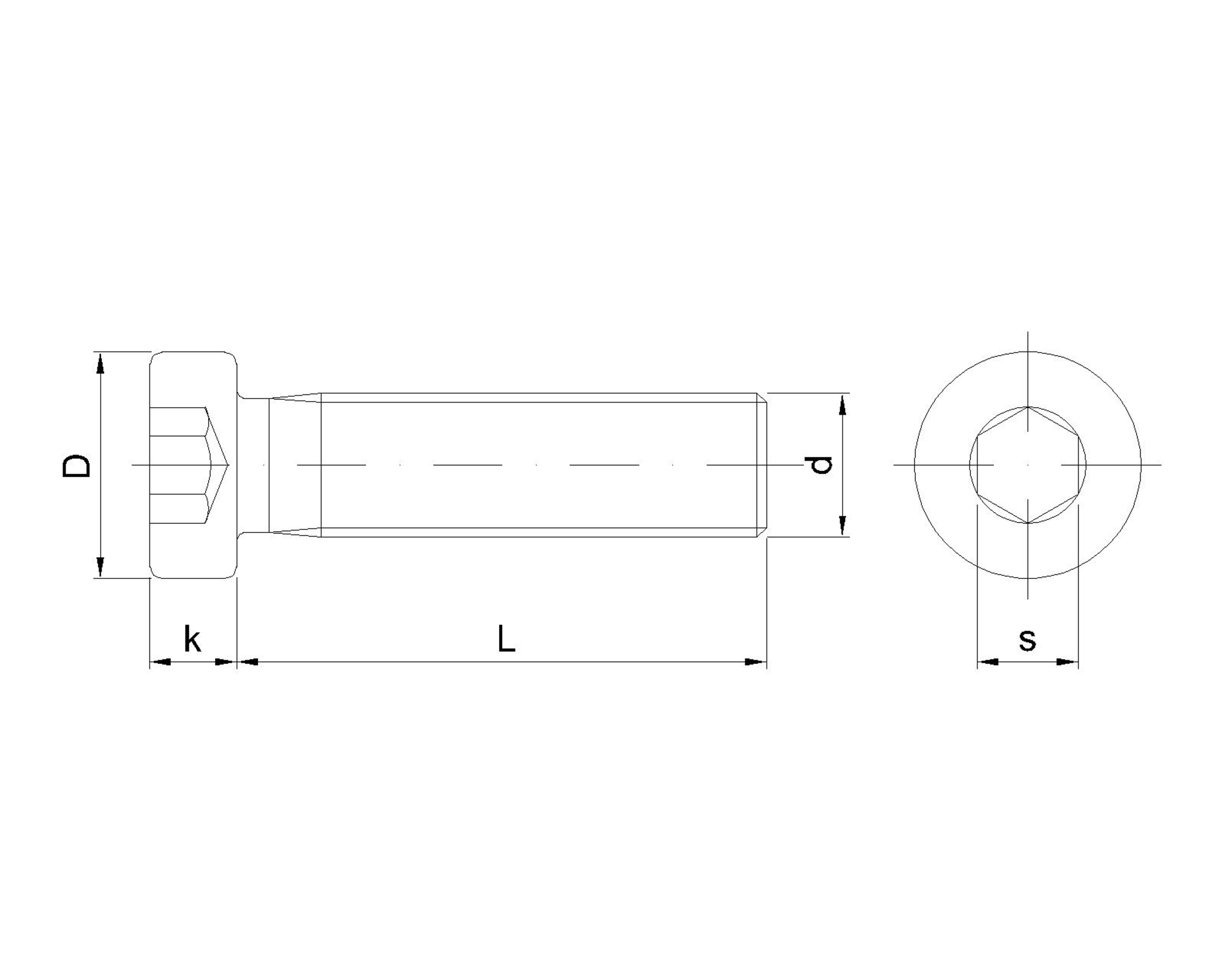

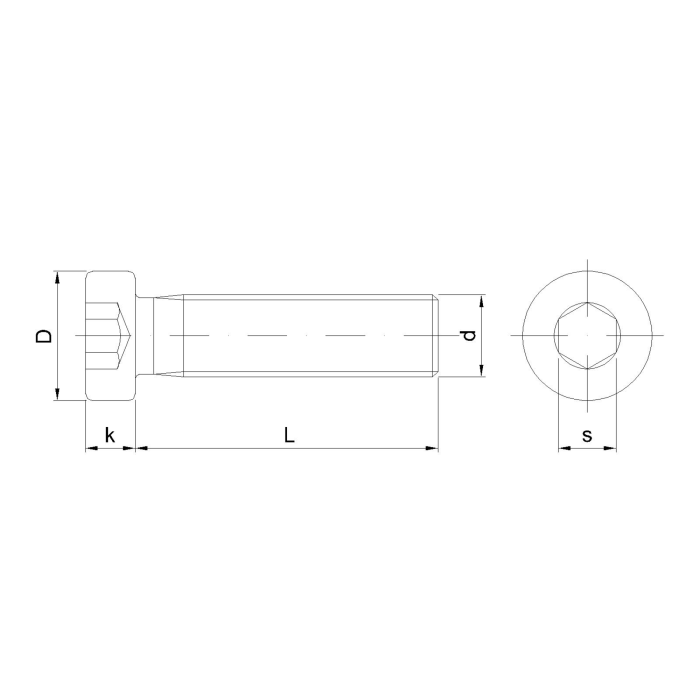

Dimension d [mm]

Dimension L [mm]

Dimension s [mm]

Dimension k [mm]

Dimension D [mm]

Threading

Standard

Material

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension L [mm]	Dimension s [mm]	Dimension k [mm]	Dimension D [mm]	Threading	Standard	Material	Unit of measure	Availability

I1124030006A47984T	M3	6	2	2	5.5	Over the whole	DIN 7984	A4-70	THS	Product on request
I1124040006A27984T	M4	6	2.5	2.8	7	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124040008A27984T	M4	8	2.5	2.8	7	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124040010A27984T	M4	10	2.5	2.8	7	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124040010A47984T	M4	10	2.5	2.8	7	Over the whole	DIN 7984	A4-70	THS	Product on request
I1124040012A27984T	M4	12	2.5	2.8	7	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124040016A27984T	M4	16	2.5	2.8	7	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124040016A47984T	M4	16	2.5	2.8	7	Over the whole	DIN 7984	A4-70	THS	Product on request
I1124040020A27984T	M4	20	2.5	2.8	7	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124050008A27984T	M5	8	3	3.5	8.5	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124050010A27984T	M5	10	3	3.5	8.5	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124050012A27984T	M5	12	3	3.5	8.5	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124050016A27984T	M5	16	3	3.5	8.5	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124050020A27984T	M5	20	3	3.5	8.5	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124060010A27984T	M6	10	4	4	10	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124060012A27984T	M6	12	4	4	10	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124060016A27984T	M6	16	4	4	10	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124060020A27984T	M6	20	4	4	10	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124060025A27984T	M6	25	4	4	10	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124080016A27984T	M8	16	5	5	13	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124080016A47984T	M8	16	5	5	13	Over the whole	DIN 7984	A4-70	THS	Product on request
I1124080020A27984T	M8	20	5	5	13	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124080025A27984T	M8	25	5	5	13	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124080030A27984T	M8	30	5	5	13	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124080035A27984T						Over the whole	DIN 7984		PCS	Product on request
I1124100016A27984T	M10	16	7	6	16	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124100020A27984T	M10	20	7	6	16	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124100030A27984T	M10	30	7	6	16	Over the whole	DIN 7984	A2-70	THS	Product on request
I1124100040A27984T	M10	40	7	6	16	Over the whole	DIN 7984	A2-70	THS	Product on request
