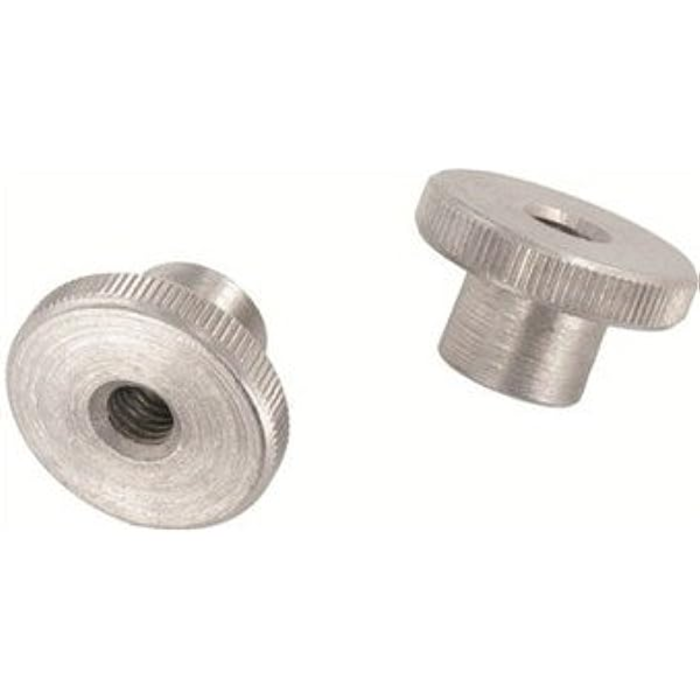

High knurled nut

The high knurled nut is a fastening component with a taller profile, featuring knurled edges that ensure a firm grip and facilitate handling during assembly. The increased height allows for stronger connections, making it ideal for applications requiring durability and stability. The knurled surface enhances friction, further preventing accidental loosening.

Application:

Mechanical Engineering: Used in mechanical constructions where higher clamping force and connection stability are required, such as in industrial machinery.
Electronics: Employed in electronic devices where strong, reliable connections are necessary, while still allowing ease of manual tightening and removal.
Construction: Perfect for use in structural steel applications, railing fastenings, and other elements that demand strong, stable connections.

Benefits:

Strength: The higher profile allows for stronger connections, crucial in more demanding applications.
Firm Grip: Knurled edges provide an easier grip and handling, facilitating manual tightening.
Enhanced Stability: The knurled surface increases friction, further securing the connection against loosening.

Send product inquiry

Product:

Inquiry:

Firstname and lastname:

Company:

Country:

Phone:

E‑mail:

Attachment:

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Dimension d [mm]

Dimension m [mm]

Class of mechanical properties

Variety of coating

Dimension D [mm]

Dimension D1 [mm]

Dimension k [mm]

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension m [mm]	Class of mechanical properties	Variety of coating	Dimension D [mm]	Dimension D1 [mm]	Dimension k [mm]	Standard	Unit of measure	Availability

1572030BD466T	M3	7.5	5	white zinc plating	12	6	2.5	DIN 466	THS	Product on request
1572030MD466T	M3	7.5	5	brass plating	12	6	2.5	DIN 466	THS	Product on request
1572030SD466T	M3	7.5	5	raw	12	6	2.5	DIN 466	THS	Product on request
1572040BD466T	M4	9.5	5	white zinc plating	16	8	3.5	DIN 466	THS	Product on request
1572040MD466T	M4	9.5	5	brass plating	16	8	3.5	DIN 466	THS	Product on request
1572040SD466T	M4	9.5	5	raw	16	8	3.5	DIN 466	THS	Product on request
1572050BD466T	M5	11.5	5	white zinc plating	20	10	4	DIN 466	THS	Product on request
1572050MD466T	M5	11.5	5	brass plating	20	10	4	DIN 466	THS	Product on request
1572050SD466T	M5	11.5	5	raw	20	10	4	DIN 466	THS	Product on request
1572060BD466T	M6	15	5	white zinc plating	24	12	5	DIN 466	THS	Product on request
1572060MD466T	M6	15	5	brass plating	24	12	5	DIN 466	THS	Product on request
1572060SD466T	M6	15	5	raw	24	12	5	DIN 466	THS	Product on request
1572080BD466T	M8	18	5	white zinc plating	30	16	6	DIN 466	THS	Product on request
1572080MD466T	M8	18	5	brass plating	30	16	6	DIN 466	THS	Product on request
1572080SD466T	M8	18	5	raw	30	16	6	DIN 466	THS	Product on request
1572100BD466T	M10	23	5	white zinc plating	36	20	8	DIN 466	THS	Product on request
1572100MD466T	M10	23	5	brass plating	36	20	8	DIN 466	THS	Product on request
1572100SD466T	M10	23	5	raw	36	20	8	DIN 466	THS	Product on request
1572120BD466T	M12	23	5	white zinc plating	35	20	8	DIN 466	THS	Product on request
