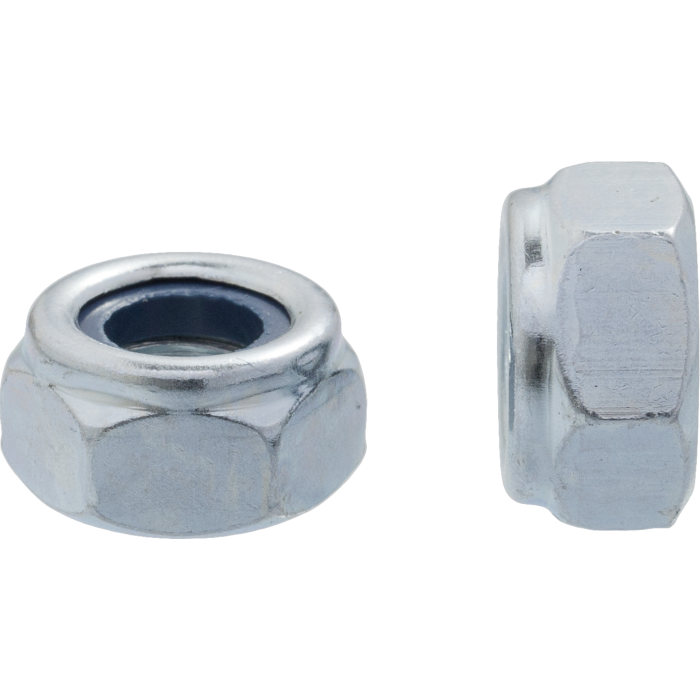

High self-locking nut with polyamide insert

15
.
43

The high lock nut with nylon insert is an advanced fastening element designed to provide high stability and safety in various applications. The use of a nylon insert offers excellent resistance to loosening due to vibrations and shocks. The high design of the nut allows for better fitting to bolts, increasing the contact surface and enhancing the fastening properties.

Application:
The high lock nut with nylon insert finds use in many industries, including:

  • Automotive Industry: Used in connections subjected to intense vibrations, such as engines or suspensions.

  • Construction: Ideal for securing steel structures where the reliability of connections is critical.

  • Machinery and Energy: Applied in industrial equipment that requires high stability in challenging conditions.

Benefits:

  • Resistance to Loosening: The nylon insert effectively prevents the nut from loosening, enhancing the safety of connections.

  • Durability: High-quality materials ensure corrosion resistance, guaranteeing long-lasting performance in tough environments.

  • Versatility: The nut can be used in various applications, making it a universal fastening element.

Recommended

Group
1543

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

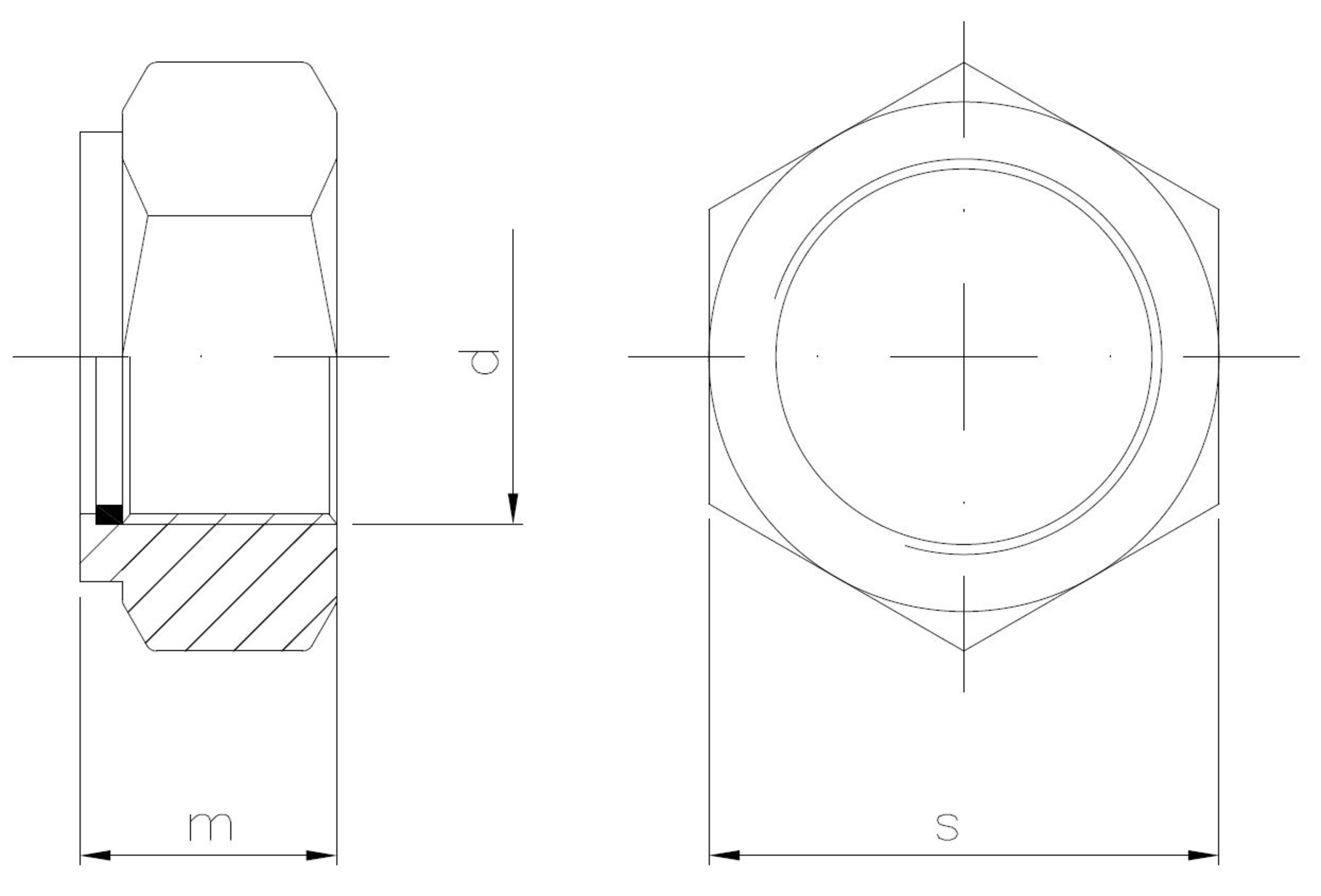

Dimension d [mm]
Dimension m [mm]
Class of mechanical properties
Variety of coating
Dimension s [mm]
Thread pitch
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension m [mm] Class of mechanical properties Variety of coating Dimension s [mm] Thread pitch Standard Unit of measure Availability Show More
1543100100B10D982T
DIN 982 THS
1543100125B10D982T
M10 11.5 10 white zinc plating 17 1.25 DIN 982 THS
1543120125B10D982T
M12 14 10 white zinc plating 19 1.25 DIN 982 THS
1543120150B10D982T
M12 14 10 white zinc plating 19 1.5 DIN 982 THS
1543140150B10D982T
M14 16 10 white zinc plating 22 1.5 DIN 982 THS
1543160150B10D982T
M16 18 10 white zinc plating 24 1.5 DIN 982 THS
1543180150B10D982T
M18 10 white zinc plating 1.5 DIN 982 THS
1543200150B10D982T
M20 22 10 white zinc plating 30 1.5 DIN 982 THS
1543240150B10D982T
M24 28 10 white zinc plating 36 1.5 DIN 982 THS
1543240200B10D982T
M24 28 10 white zinc plating 36 2.0 DIN 982 THS
