Highbond dynamic anchor FHB-A Fischer

The performance class amongst dynamic anchors

Advantages

• During the setting process, the injection mortar FIS HB fills the annular gap in the fixture, and ensures optimum load distribution. This allows for the absorption of dynamic alternating loads.
• The cone shape of the FHB-Adyn anchor rod ensures a controlled expansion under dynamic stress, thus allowing for use in cracked concrete.
• The anchor rod FHB-A dyn is also available made from highly corrosion-resistant steel. This makes it suitable for use in aggressive atmospheres, for example in tunnels.
• The Highbond anchor dynamic system can achieve even greater shear loads thanks to the additional sleeve of the anchor rod FHB-A dyn, and therefore provides an increased level of safety.
• The ETA for static and quasi-static loads allows the use of sizes M12 and M16 also for the anchoring base steel fiber concrete.

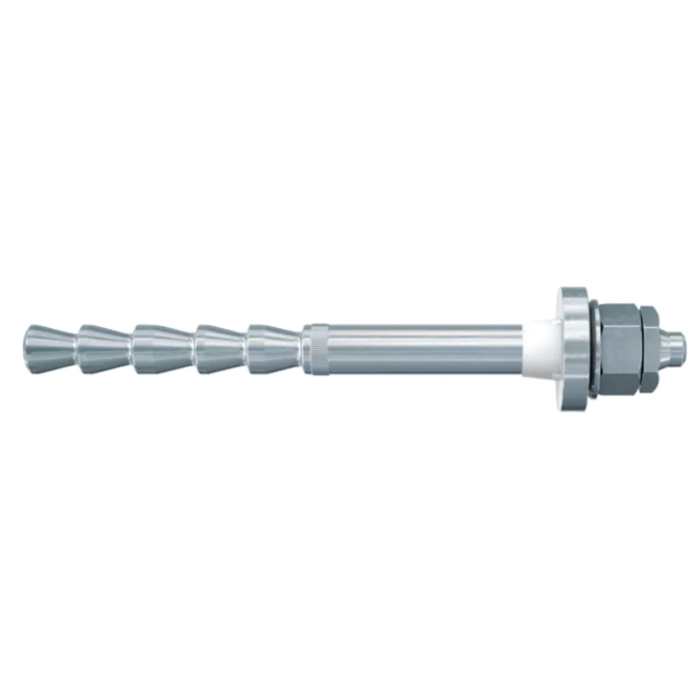

The fischer Highbond anchor dynamic FHB-A dyn is made of highly corrosion-resistant steel. The torque-controlled composite anchor can be processed with the Highbond special mortar FIS HB. When tightening the hexagon nut, the anchor rod cones are pulled into the mortar shell, which expands against the drill hole wall. During the setting process, the injection mortar FIS HB fills the annular gap in the fixture, and guarantees optimum load distribution. This allows for the absorption of dynamic alternating loads. The fischer Highbond anchor dynamic FHB-A dyn is, for example, ideally suited for fixing bridges for traffic signs or tunnel ventilators in tunnels.
