Hollow wall anchor

51
.
04
MHD

The hollow wall anchor is a fastening element used in the construction and assembly of various building structures. This specialized anchor is designed for installation in hollow spaces, such as holes in concrete, bricks, or other building materials, where a durable and secure connection is necessary.

It is suitable for securing constructions in drywall, gypsum, particleboard, laminates, and plywood, allowing for the attachment of elements that may need to be disassembled repeatedly.

Applications:

Hollow wall anchors find use in many areas of construction and assembly, including:

  • Securing Metal Structures: Used for mounting metal frameworks, railings, barriers, stairs, and other structural elements.
  • Securing Pipes and Ducts: Employed for fastening pipes, ventilation ducts, and other installations within buildings.
  • Mounting Brackets: Suitable for mounting brackets, hangers, and other mounting elements on walls and ceilings.
  • Concrete Constructions: Utilized in concrete construction for fastening various components such as beams, columns, and slabs.

Benefits:

  • Durability: Hollow wall anchors are made from durable materials, ensuring a long lifespan.
  • Versatility: They are suitable for various types of materials and constructions.
  • Easy Installation: Anchors are relatively easy to install and do not require specialized tools.

Recommended

Group
5104

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

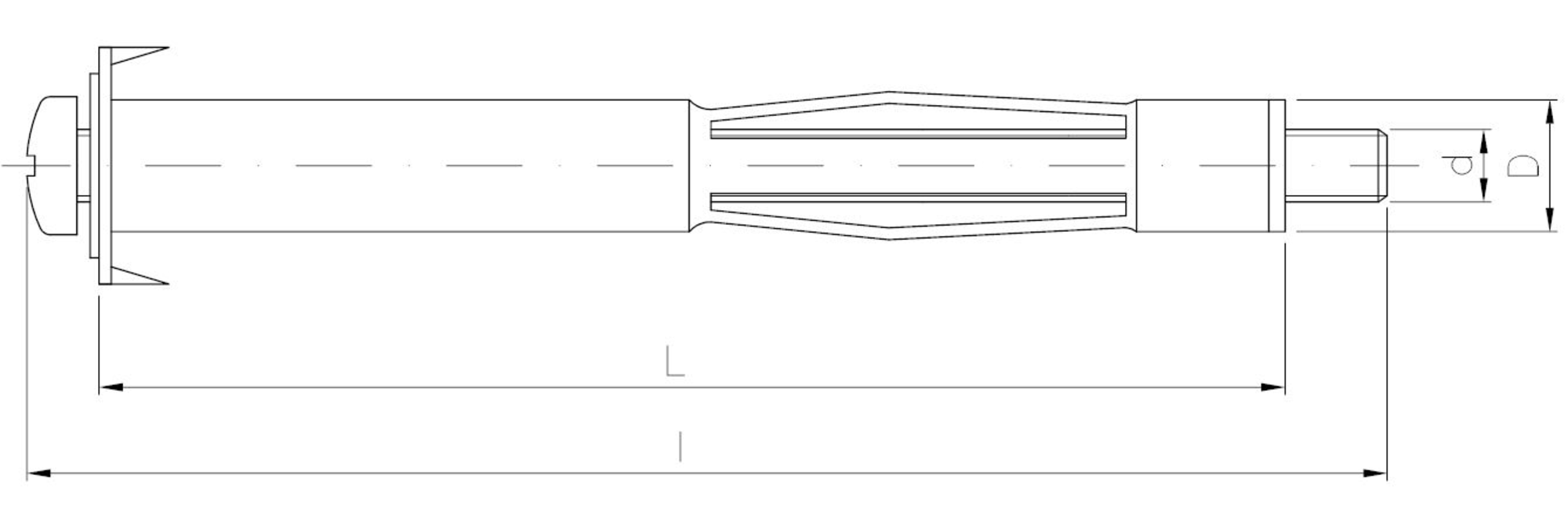

Dimension d [mm]
Dimension L [mm]
Packaging type
Dimension D [mm]
Dimension l [mm]
Variety of coating
Designation
Brand
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Packaging type Dimension D [mm] Dimension l [mm] Variety of coating Designation Brand Unit of measure Availability Show More
5104040012S
M4 32.5 6.5 42.5 white zinc plating MHD M4x12 Marcopol PCS
5104040016S
M4 39.0 6.5 49.0 white zinc plating MHD M4x16 Marcopol PCS
51040400241QO
M4 47.0 Blister 6.5 58.0 white zinc plating MHD M4x24 Marcopol BOX
5104040024S
M4 47.0 6.5 58.0 white zinc plating MHD M4x24 Marcopol PCS
5104040032FISS
M4 32 white zinc plating HM-S Fischer PCS
5104040045FISS
M4 45 white zinc plating HM-S Fischer PCS
5104040060FISS
M4 60 white zinc plating HM-S Fischer PCS
5104050012S
M5 37.0 8.8 49.0 white zinc plating MHD M5x12 Marcopol PCS
5104050016S
M5 51.0 8.8 63.0 white zinc plating MHD M5x16 Marcopol PCS
5104050037FISS
M5 37 white zinc plating HM-S Fischer PCS
5104050052FISS
M5 52 white zinc plating HM-S Fischer PCS
5104050065FISS
M5 65 white zinc plating HM-S Fischer PCS
5104060012S
M6 36.0 10.5 49.0 white zinc plating MHD M6x12 Marcopol PCS
51040600161QO
M6 53.0 Blister 10.5 63.0 white zinc plating MHD M6x16 Marcopol BOX
5104060016S
M6 53.0 10.5 63.0 white zinc plating MHD M6x16 Marcopol PCS
5104060037FISS
M6 37 white zinc plating HM-S Fischer PCS
5104060052FISS
M6 52 white zinc plating HM-S Fischer PCS
5104060065FISS
M6 65 white zinc plating HM-S Fischer PCS
5104060080FISS
M6 80 white zinc plating HM-S Fischer PCS
