Joist hanger

62
.
14
WB

A joist hanger is a structural element used across various fields to suspend and support beams, frames, or other structural components. It is characterized by a bent shape that allows for effective suspension and secure support of heavy objects.

Applications:

  • Construction: Joist hangers are used in construction to suspend beams, frames, and elements of suspended ceiling systems, among other structural components.
  • Industry: They are applied in industrial settings to support heavy objects, machinery, devices, and other industrial projects.
  • Load-Bearing Structures: Used in load-bearing constructions, such as industrial halls, warehouses, stores, and more.

Benefits:

  • The bent shape provides a secure and stable suspension and support of objects.
  • Durable material ensures exceptional strength, allowing for the suspension of heavy objects.
  • Available in various sizes to accommodate specific needs.
  • Pre-drilled holes or clamps make installation and attachment to beams or other structural elements easier.

Recommended

Group
6214

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

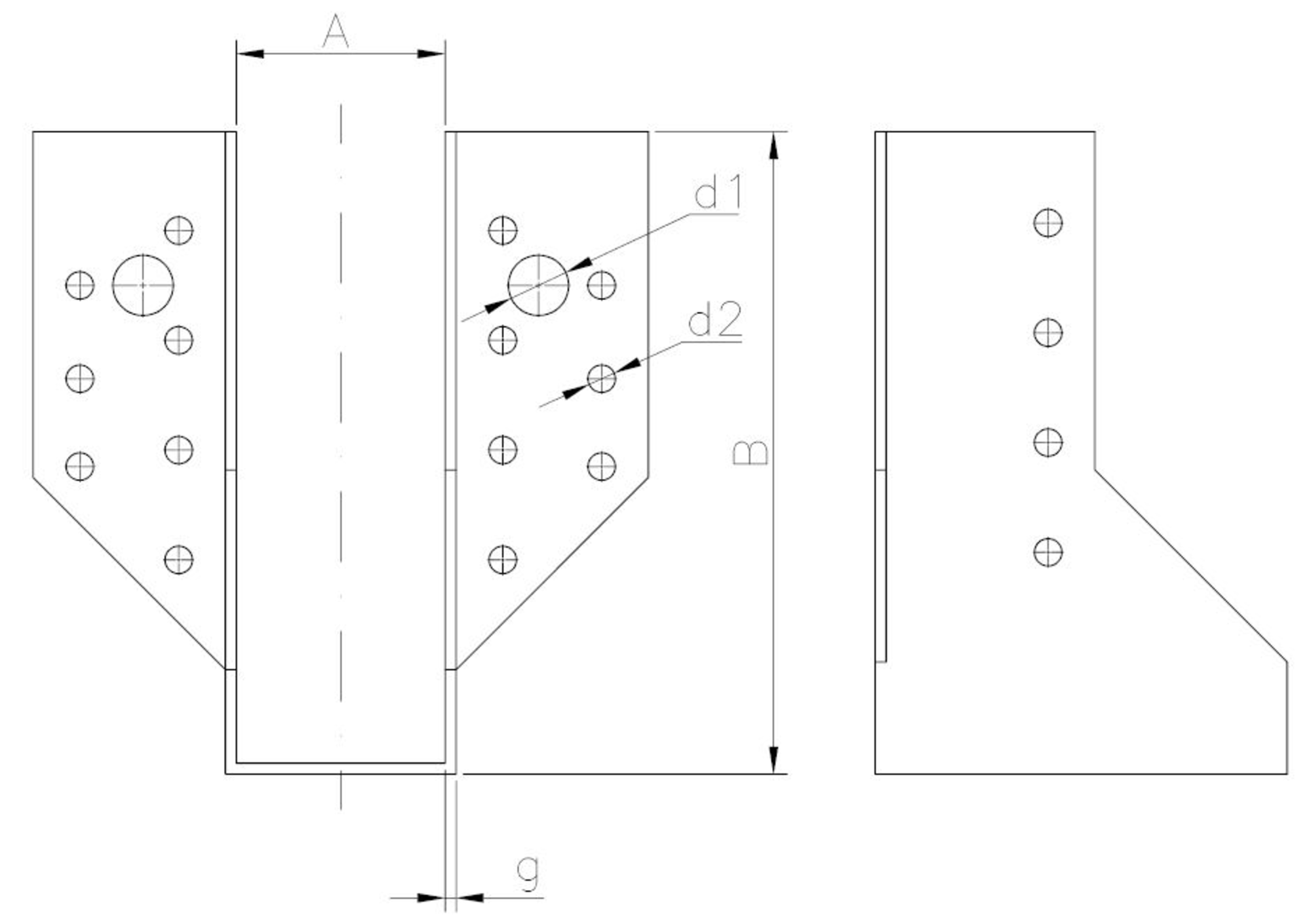

Designation
Dimension A [mm]
Dimension B [mm]
Variety of coating
Dimension d1 [mm]
Dimension d2 [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Designation Dimension A [mm] Dimension B [mm] Variety of coating Dimension d1 [mm] Dimension d2 [mm] Unit of measure Availability Show More
6214PL04040S
white zinc plating PCS
6214PL06060S
white zinc plating PCS
6214WB05041110S
WB5 41 110 white zinc plating 2 x Ø11 22 x Ø5 PCS
6214WB09045138S
WB9 45 138 white zinc plating 4 x Ø11 28 x Ø5 PCS
6214WB10051105S
WB10 51 105 white zinc plating 2 x Ø11 22 x Ø5 PCS
6214WB11051135S
WB11 51 135 white zinc plating 4 x Ø11 28 x Ø5 PCS
6214WB13051195S
WB13 51 195 white zinc plating 6 x Ø11 40 x Ø5 PCS
6214WB14060100S
WB14 60 100 white zinc plating 2 x Ø11 22 x Ø5 PCS
6214WB15060130S
WB15 60 130 white zinc plating 4 x Ø11 28 x Ø5 PCS
6214WB16060160S
WB16 60 160 white zinc plating 4 x Ø11 34 x Ø5 PCS
6214WB21070125S
WB21 70 125 white zinc plating 4 x Ø11 28 x Ø5 PCS
6214WB26080120S
WB26 80 120 white zinc plating 4 x Ø11 28 x Ø5 PCS
6214WB27080150S
WB27 80 150 white zinc plating 4 x Ø11 34 x Ø5 PCS
6214WB28080180S
WB28 80 180 white zinc plating 6 x Ø11 40 x Ø5 PCS
6214WB30100140S
WB30 100 140 white zinc plating 4 x Ø11 34 x Ø5 PCS
6214WB31100170S
WB31 100 170 white zinc plating 6 x Ø11 40 x Ø5 PCS
