Large flat head blind rivet, aluminum-steel

24
.
03
Nit ASL

Large flat head blind rivet, aluminum-steel are a type of mechanical fastening. These products consist of a sleeve and a pin.

Break-off rivets are very effective for joining two or more components. They can easily connect surfaces made from the same material as the rivets as well as from completely different materials. A significant advantage of break-off rivets is that they can be used effortlessly in situations where access to the joined elements is difficult.

Using rivets allows for a quick yet solid solution to problems related to connecting elements. Additionally, break-off rivets are made from various materials and come in different head shapes, enabling a wide range of applications.

Rivets with a large flange are used to fasten thin materials to a hard substrate. The large flange also effectively conceals oversized holes, ensuring the integrity of the construction.

Recommended

Group
2403

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

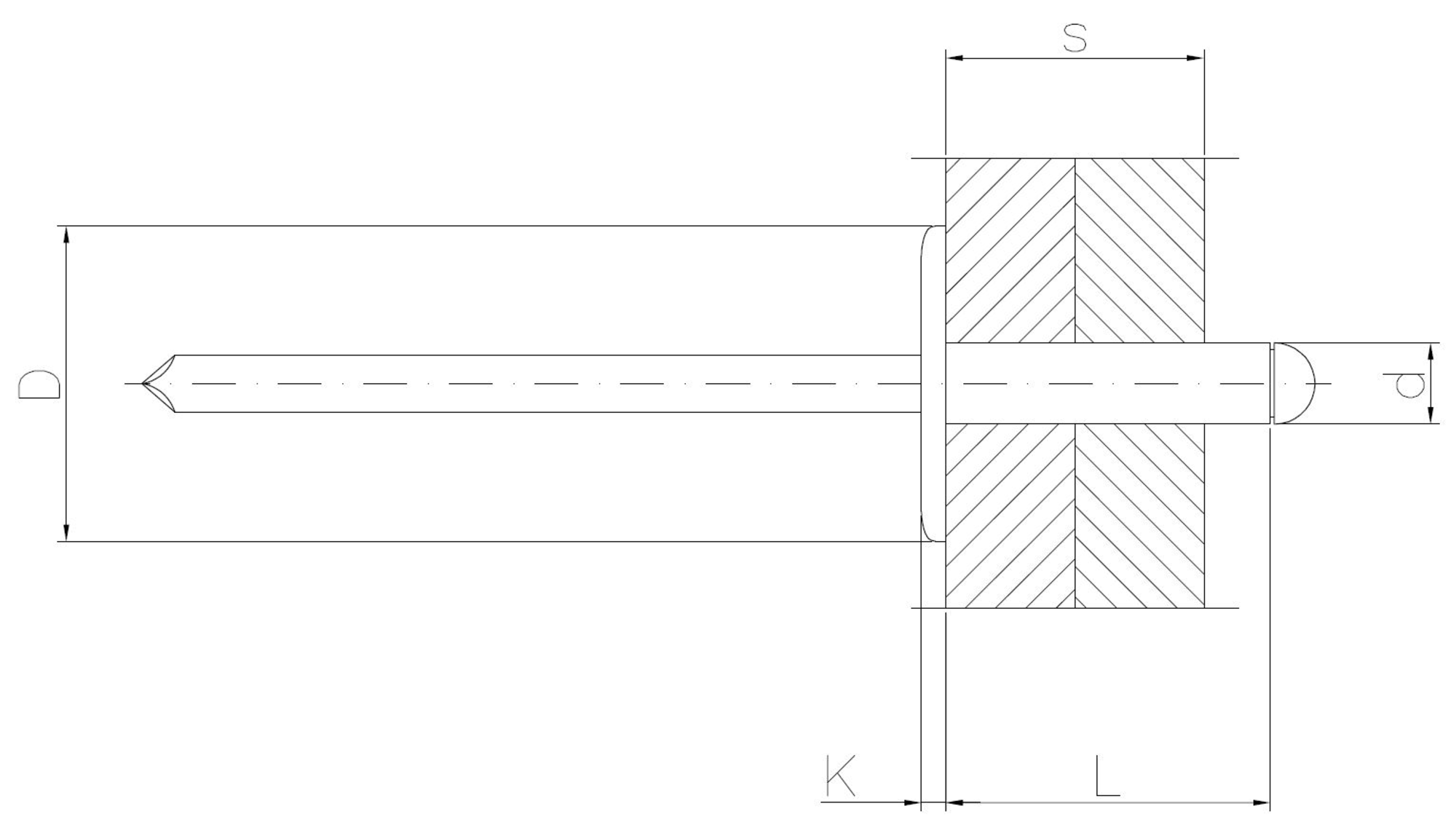

Diameter d [mm]
Length L [mm]
Flange diameter D [mm]
Riveting range s [mm]
Flange thickness k [mm]
Combined materials
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Diameter d [mm] Length L [mm] Flange diameter D [mm] Riveting range s [mm] Flange thickness k [mm] Combined materials Unit of measure Availability Show More
2403032060AS95T
3.2 6 9.5 1.0-3.5 2.0 Alu / Steel THS
2403032080AS95T
3.2 8 9.5 3.5-5.0 2.0 Alu / Steel THS
2403032100AS95T
3.2 10 9.5 5.0-7.0 2.0 Alu / Steel THS
2403032120AS95T
3.2 12 9.5 7.0-9.0 2.0 Alu / Steel THS
2403040080AS12T
4.0 8 12.0 3.0-5.0 2.5 Alu / Steel THS
2403040100AS12T
4.0 10 12.0 5.0-6.5 2.5 Alu / Steel THS
2403040120AS12T
4.0 12 12.0 6.5-8.5 2.5 Alu / Steel THS
2403040120SS12T
4.0 12 12.0 Steel / Steel THS
2403040140AS12T
4.0 14 12.0 9.0-10.5 2.5 Alu / Steel THS
2403040160AS12T
4.0 16 12.0 10.5-12.5 2.5 Alu / Steel THS
2403040180AS12T
4.0 18 12.0 12.5-14.5 2.5 Alu / Steel THS
2403040200AS12T
4.0 20 12.0 14.5-16.5 2.5 Alu / Steel THS
2403048100AS16T
4.8 10 16.0 4.0-6.0 2.5 Alu / Steel THS
2403048100SS14T
4.8 10 14.0 3.0-6.0 1.8 Steel / Steel THS
2403048120AS14T
4.8 12 14.0 6.0-8.0 2.5 Alu / Steel THS
2403048120AS16T
4.8 12 16.0 6.0-8.0 2.5 Alu / Steel THS
2403048120SS14T
4.8 12 14.0 6.0-8.0 1.8 Steel / Steel THS
2403048140AS14T
4.8 14 14.0 8.0-10.0 2.5 Alu / Steel THS
2403048140AS1610T
4.8 14 16.0 8.0-10.0 2.5 Alu / Steel THS
2403048140AS16T
4.8 14 16.0 8.0-10.0 2.5 Alu / Steel THS
2403048140SS14T
4.8 14 14.0 8.0-10.0 1.8 Steel / Steel THS
2403048160AA14T
4.8 16 14.3 10.0-12.0 1.8 Alu / Alu THS
2403048160AS14T
4.8 16 14.0 10.0-12.0 2.5 Alu / Steel THS
2403048160AS16T
4.8 16 16.0 10.0-12.0 2.5 Alu / Steel THS
2403048160SS14T
4.8 16 14.0 10.0-12.0 1.8 Steel / Steel THS
2403048180AS14T
4.8 18 14.0 12.0-14.0 2.5 Alu / Steel THS
2403048180AS16T
4.8 18 16.0 12.0-14.0 2.5 Alu / Steel THS
2403048180SS14T
4.8 18 14.0 12.0-14.0 1.8 Steel / Steel THS
2403048210AA14T
4.8 21 14.3 14.0-17.0 1.8 Alu / Alu THS
2403048210AS14T
4.8 21 14.0 14.0-16.5 2.5 Alu / Steel THS
2403048210AS16T
4.8 21 16.0 14.0-16.5 2.5 Alu / Steel THS
2403048210SS14T
4.8 21 14.0 14.0-16.0 1.8 Steel / Steel THS
2403048240AA14T
4.8 24 14.3 17.0-20.0 1.8 Alu / Alu THS
2403048240AS14716T
4.8 24 14.0 17.0-19.0 2.5 Alu / Steel THS
2403048240AS14T
4.8 24 14.0 17.0-19.0 2.5 Alu / Steel THS
2403048240AS16T
4.8 24 16.0 17.0-19.0 2.5 Alu / Steel THS
2403048240SS14T
4.8 24 14.0 16.0-18.0 1.8 Steel / Steel THS
2403048300AS14T
4.8 30 14.0 23.0-25.0 2.5 Alu / Steel THS
2403048300AS16T
4.8 30 16.0 23.0-25.0 2.5 Alu / Steel THS
2403048300SS14T
4.8 30 14.0 23.0-25.0 1.8 Steel / Steel THS
2403048400AS16T
4.8 40 16.0 2.5 Alu / Steel THS
2403050120AS14T
5.0 12 14.0 6.0-8.0 1.8 Alu / Steel THS
2403050160AS14T
5.0 16 14.0 10.0-12.0 1.8 Alu / Steel THS
2403050180AS14T
5.0 18 14.0 12.0-14.0 1.8 Alu / Steel THS
2403050200AS14T
5.0 20 14.0 14.0-16.0 1.8 Alu / Steel THS
2403050250AS14T
5.0 25 14.0 16.0-21.0 1.8 Alu / Steel THS
2403050300AS14T
5.0 30 14.0 21.0-25.0 1.8 Alu / Steel THS
2403064160SS19T
6.4 16 19.0 7.0-9.0 2.5 Steel / Steel THS
2403064200SS19T
6.4 20 19.0 9.0-11.0 2.5 Steel / Steel THS
2403064250SS19T
6.4 25 19.0 13.0-18.0 2.5 Steel / Steel THS
2403064300SS19T
6.4 30 19.0 18.0-23.0 2.5 Steel / Steel THS
