Large flat head blind rivet INOX

I24
.
03

The Blind Rivet with Countersunk Head (inox) is a durable and reliable connecting element designed for permanent fastening of various materials in applications requiring corrosion resistance. Made from high-quality stainless steel, this rivet features a countersunk head that increases the contact area and allows for better load distribution. It is an ideal solution across many industries, including construction, automotive, and furniture.

Applications:

Blind Rivets with Countersunk Heads (inox) are used in various sectors, including:

  • Construction: Employed in steel structures, fencing, facades, and the assembly of aluminum constructions where solid and durable connections are required.
  • Automotive Industry: Utilized in the production of cars and special vehicles for fastening body elements and other components.
  • Furniture Industry: Used for joining components made from wood, metal, and plastics, providing an aesthetic finish.
  • Aerospace Industry: Applied in the construction and maintenance of aviation equipment that requires high corrosion resistance.

Benefits:

  • Corrosion Resistance: Made from stainless steel, these rivets offer high resistance to corrosion, making them ideal for use in harsh weather conditions.
  • Durability: The solid construction and high-quality materials ensure long-lasting and reliable connections, even in demanding environments.
  • Improved Load Distribution: The countersunk head increases the contact area, minimizing the risk of material damage and enhancing joint stability.
  • Aesthetic Appeal: The design provides a neat appearance, making them an excellent choice for applications where visual appeal is important.
Send product inquiry

Product inquiry form

Recommended

Group
I2403

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

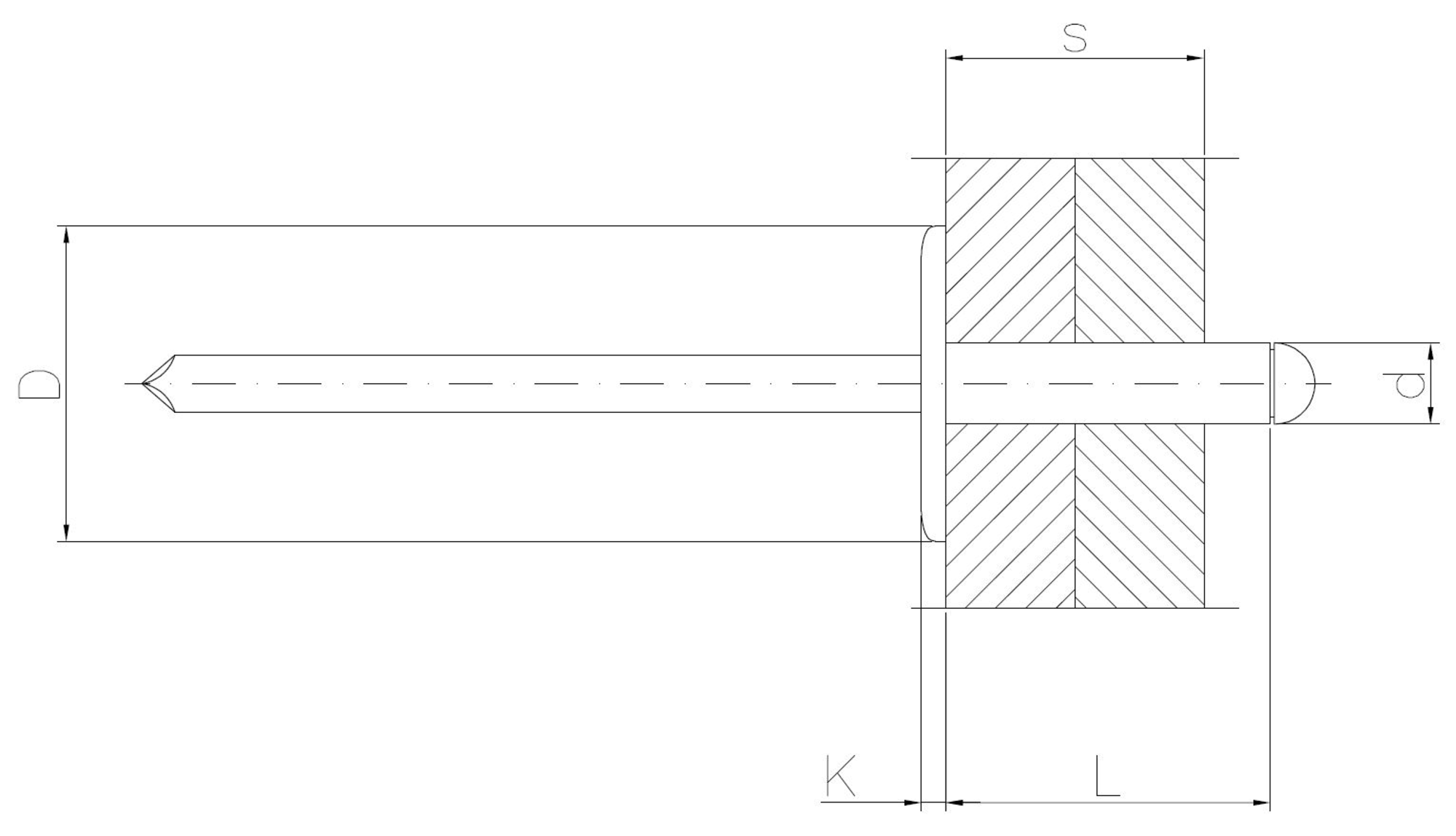

Dimension d [mm]
Dimension L [mm]
Dimension D [mm]
Dimension s [mm]
Dimension k [mm]
Combined materials
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Dimension D [mm] Dimension s [mm] Dimension k [mm] Combined materials Unit of measure Availability Show More
I2403032100A2A295T
3.2 10 9.5 5.0-7.0 2.0 A2 / A2 THS
I2403040100A2A212T
4.0 10 12.0 5.0-6.5 2.5 A2 / A2 THS
I2403040130A2A212T
4.0 13 12.0 6.5-8.5 2.5 A2 / A2 THS
I2403048100A2A216T
4.8 10 16.0 4.0-6.0 2.5 A2 / A2 THS
I2403048120A2A216T
4.8 12 16.0 6.0-8.0 2.5 A2 / A2 THS
I2403048160A2A214T
4.8 16 14.0 8.0-12.0 2.5 A2 / A2 THS
I2403048160A2A216T
4.8 16 16.0 8.0-12.0 2.5 A2 / A2 THS
I2403048200AA2169T
4.8 20 16.0 2.5 Al / A2 THS
I2403048200AA216T
4.8 20 16.0 2.5 Al / A2 THS
I2403048300A216BT
4.8 30 16.0 2.5 THS
I2403050120AA214T
5.0 12 14.0 6.0-8.0 2.5 Al / A2 THS
I2403050160AA214T
5.0 16 14.0 8.0-12.0 2.5 Al / A2 THS
