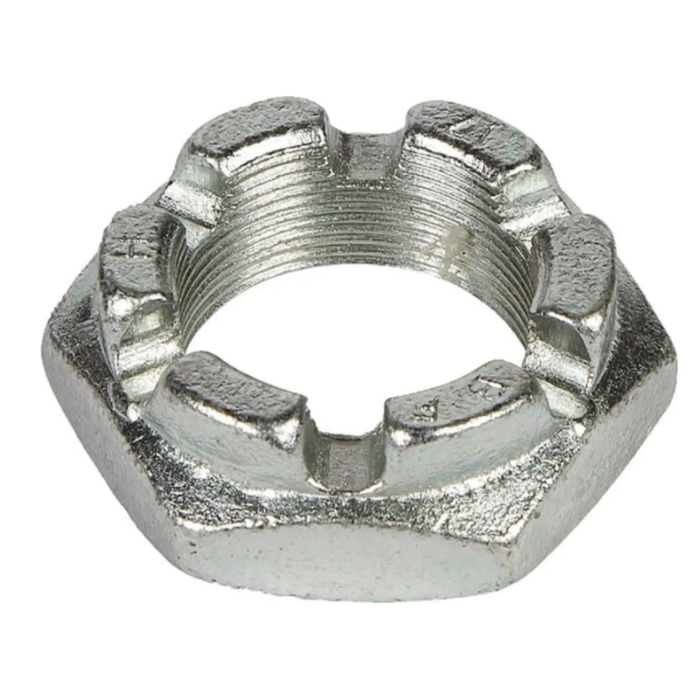

Low crown nut with fine thread thread

The low crown nut with fine thread is a specialized fastening component characterized by its low profile and fine-thread design. This type of nut is engineered to provide a secure fastening in spaces with limited room, while also allowing for precise adjustment. Used across various industries, including automotive, furniture, and electronics, it offers stability and durability in connections.

Application:

Automotive Industry: Utilized in applications where a low height and precise fit are required, such as in suspension systems or engines.
Furniture Industry: Ideal for assembling furniture, where aesthetics and space-saving are crucial.
Electronics Industry: Employed in electronic device enclosures, ensuring low height and secure connections.

Benefits:

Compact Size: The low design allows the nut to be used in confined spaces, enhancing design flexibility.
Connection Stability: The fine thread ensures better fitting and minimizes the risk of loosening, leading to long-lasting and reliable connections.
Versatility: The low crown nut with fine thread can be used in various applications, making it a versatile solution across many industries.

Send product inquiry

Product:

Inquiry:

Firstname and lastname:

Company:

Country:

Phone:

E‑mail:

Attachment:

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Dimension d [mm]

Dimension m [mm]

Class of mechanical properties

Variety of coating

Dimension s [mm]

Thread pitch

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension m [mm]	Class of mechanical properties	Variety of coating	Dimension s [mm]	Thread pitch	Standard	Unit of measure	Availability

1578120150B17H937T	M12	10	17H	white zinc plating	19	1.50	DIN 937	THS	Product on request
1578140150B17H937T	M14	11	17H	white zinc plating	22	1.50	DIN 937	THS	Product on request
1578160150B17H937T	M16	12	17H	white zinc plating	24	1.50	DIN 937	THS	Product on request
1578180150B17H937T	M18	13	17H	white zinc plating	27	1.50	DIN 937	THS	Product on request
1578200150B17H937T	M20	13	17H	white zinc plating	30	1.50	DIN 937	THS	Product on request
1578200150S17H937T	M20	13	17H	white zinc plating	30	1.50	DIN 937	THS	Product on request
1578220150B17H937T	M22	15	17H	white zinc plating	32	1.50	DIN 937	THS	Product on request
1578240150B17H937T	M24	15	17H	white zinc plating	36	1.50	DIN 937	THS	Product on request
1578240150S17H937T	M24	15	17H	raw	36	1.50	DIN 937	THS	Product on request
1578240200B17H937T	M24	15	17H	white zinc plating	36	2.00	DIN 937	THS	Product on request
1578240200S17H937T	M24	15	17H	raw	36	2.00	DIN 937	THS	Product on request
1578270150B17H937T	M27	17	17H	white zinc plating	41	1.50	DIN 937	THS	Product on request
1578270200B17H937T	M27	17	17H	white zinc plating	41	2.00	DIN 937	THS	Product on request
1578300150B17H937T	M30	18	17H	white zinc plating	46	1.50	DIN 937	THS	Product on request
1578300200B17H937T	M30	18	17H	white zinc plating	46	2.00	DIN 937	THS	Product on request
1578300200S05D937T	M30	18	5	raw	46	2.00	DIN 937	THS	Product on request
1578300200S17H937T	M30	18	17H	raw	46	2.00	DIN 937	THS	Product on request
1578330200B17H937T	M33	20	17H	white zinc plating	50	2.00	DIN 937	THS	Product on request
1578360150B17H937T	M36	20	17H	white zinc plating	55	1.50	DIN 937	THS	Product on request
1578360150S17H937T	M36	20	17H	raw	55	1.50	DIN 937	THS	Product on request
1578360300S17H937T	M36	20	17H	raw	55	3.00	DIN 937	THS	Product on request
1578420300B17H937T	M42	23	17H	white zinc plating	65	3.00	DIN 937	THS	Product on request
1578480300B17H937T	M48	25	17H	white zinc plating	75	3.00	DIN 937	THS	Product on request
