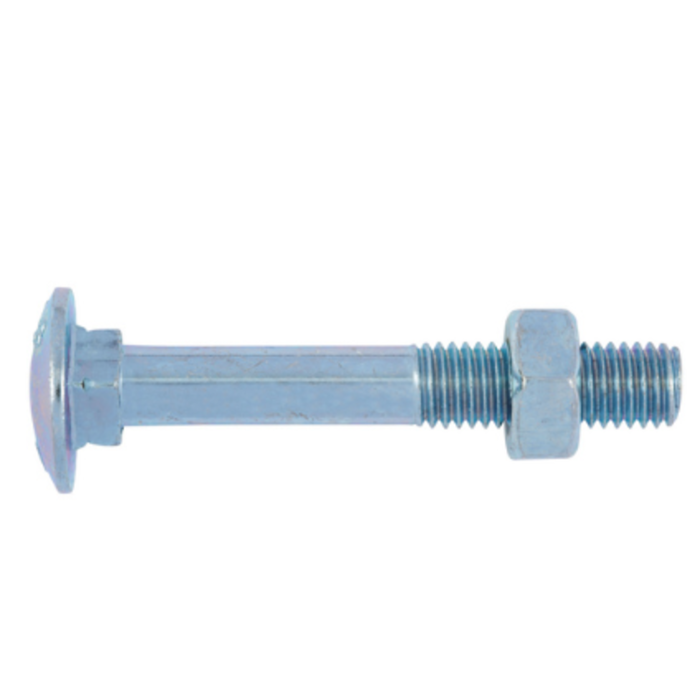

Mushroom head carriage bolt with hexagon nut

11
.
20
Ask for product

Product inquiry form

Contact: +48 58 55 40 410 export@marcopol.eu

Recommended

Group
1120

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

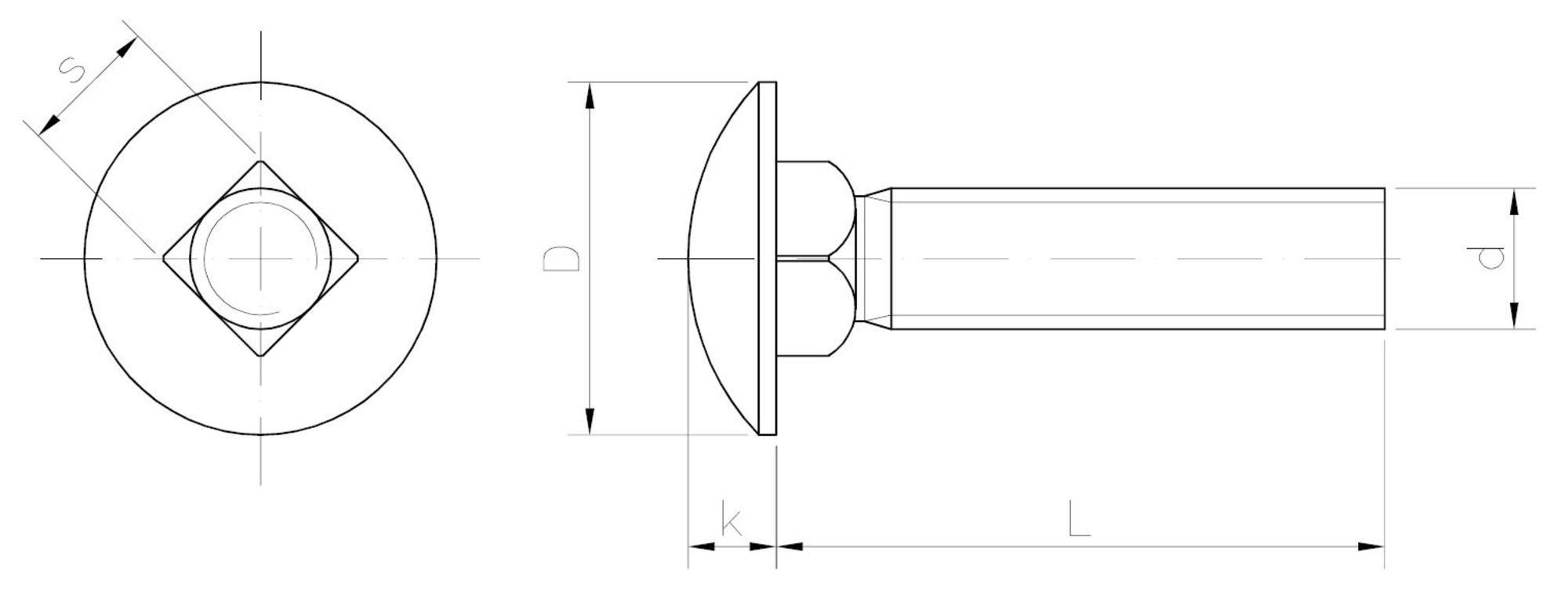

Dimension d [mm]
Dimension L [mm]
Variety of coating
Dimension k [mm]
Dimension b [mm]
Dimension D [mm]
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Variety of coating Dimension k [mm] Dimension b [mm] Dimension D [mm] Availability Show More
1120050016BD603P
M5 16 white zinc plating 3.3 13.5
1120050016SD603P
M5 16 raw 3.3 13.5
1120050020BD603P
M5 20 white zinc plating 3.3 13.5
1120050020SD603P
M5 20 raw 3.3 13.5
1120050025BD603P
M5 25 white zinc plating 3.3 13.5
1120050025SD603P
M5 25 raw 3.3 13.5
1120050030BD603P
M5 30 white zinc plating 3.3 13.5
1120050030SD603P
M5 30 raw 3.3 13.5
1120050035BD603P
M5 35 white zinc plating 3.3 16 13.5
1120050035SD603P
M5 35 raw 3.3 16 13.5
1120050040BD603P
M5 40 white zinc plating 3.3 16 13.5
1120050040SD603P
M5 40 raw 3.3 16 13.5
1120050045BD603P
M5 45 white zinc plating 3.3 16 13.5
1120050045SD603P
M5 45 raw 3.3 16 13.5
1120050050BD603P
M5 50 white zinc plating 3.3 16 13.5
1120050050SD603P
M5 50 raw 3.3 16 13.5
1120050055BD603P
M5 55 white zinc plating 3.3 16 13.5
1120050060BD603P
M5 60 white zinc plating 3.3 16 13.5
1120050060SD603P
M5 60 raw 3.3 16 13.5
1120050065BD603P
M5 65 white zinc plating 3.3 16 13.5
1120050070BD603P
M5 70 white zinc plating 3.3 16 13.5
1120050070SD603P
M5 70 raw 3.3 16 13.5
1120050080BD603P
M5 80 white zinc plating 3.3 16 13.5
1120050090BD603P
M5 90 white zinc plating 3.3 16 13.5
1120060016BD603P
M6 16 white zinc plating 3.88 16.55
1120060016SD603P
M6 16 raw 3.88 16.55
1120060020BD603P
M6 20 white zinc plating 3.88 16.55
1120060020SD603P
M6 20 raw 3.88 16.55
1120060025BD603P
M6 25 white zinc plating 3.88 16.55
1120060025SD603P
M6 25 raw 3.88 16.55
1120060030BD603P
M6 30 white zinc plating 3.88 16.55
1120060030SD603P
M6 30 raw 3.88 16.55
1120060035BD603P
M6 35 white zinc plating 3.88 18 16.55
1120060035SD603P
M6 35 raw 3.88 18 16.55
1120060040BD603P
M6 40 white zinc plating 3.88 18 16.55
1120060040SD603P
M6 40 raw 3.88 18 16.55
1120060045BD603P
M6 45 white zinc plating 3.88 18 16.55
1120060045SD603P
M6 45 raw 3.88 18 16.55
1120060050BD603P
M6 50 white zinc plating 3.88 18 16.55
1120060050SD603P
M6 50 raw 3.88 18 16.55
1120060055BD603P
M6 55 white zinc plating 3.88 18 16.55
1120060055SD603P
M6 55 raw 3.88 18 16.55
1120060060BD603P
M6 60 white zinc plating 3.88 18 16.55
1120060060SD603P
M6 60 raw 3.88 18 16.55
1120060065BD603P
M6 65 white zinc plating 3.88 18 16.55
1120060065SD603P
M6 65 raw 3.88 18 16.55
1120060070BD603P
M6 70 white zinc plating 3.88 18 16.55
1120060070SD603P
M6 70 raw 3.88 18 16.55
1120060075BD603P
M6 75 white zinc plating 3.88 18 16.55
1120060080BD603P
M6 80 white zinc plating 3.88 18 16.55
1120060080SD603P
M6 80 raw 3.88 18 16.55
1120060090BD603P
M6 90 white zinc plating 3.88 18 16.55
1120060090SD603P
M6 90 raw 3.88 18 16.55
1120060100BD603P
M6 100 white zinc plating 3.88 18 16.55
1120060100SD603P
M6 100 raw 3.88 18 16.55
1120060110BD603P
M6 110 white zinc plating 3.88 18 16.55
1120060110SD603P
M6 110 raw 3.88 18 16.55
1120060120BD603P
M6 120 white zinc plating 3.88 18 16.55
1120060120SD603P
M6 120 raw 3.88 18 16.55
1120060130BD603P
M6 130 white zinc plating 3.88 24 16.55
1120060130SD603P
M6 130 raw 3.88 24 16.55
1120060140BD603P
M6 140 white zinc plating 3.88 24 16.55
1120060150BD603P
M6 150 white zinc plating 3.88 24 16.55
1120080016BD603P
M8 16 white zinc plating 4.88 20.65
1120080016SD603P
M8 16 raw 4.88 20.65
1120080020BD603P
M8 20 white zinc plating 4.88 20.65
1120080020SD603P
M8 20 raw 4.88 20.65
1120080025BD603P
M8 25 white zinc plating 4.88 20.65
1120080025SD603P
M8 25 raw 4.88 20.65
1120080030BD603P
M8 30 white zinc plating 4.88 20.65
1120080030SD603P
M8 30 raw 4.88 20.65
1120080035BD603P
M8 35 white zinc plating 4.88 20.65
1120080035SD603P
M8 35 raw 4.88 20.65
1120080040BD603P
M8 40 white zinc plating 4.88 22 20.65
1120080040SD603P
M8 40 raw 4.88 22 20.65
1120080045BD603P
M8 45 white zinc plating 4.88 22 20.65
1120080045SD603P
M8 45 raw 4.88 22 20.65
1120080050BD603P
M8 50 white zinc plating 4.88 22 20.65
1120080050SD603P
M8 50 raw 4.88 22 20.65
1120080055BD603P
M8 55 white zinc plating 4.88 22 20.65
1120080055SD603P
M8 55 raw 4.88 22 20.65
1120080060BD603P
M8 60 white zinc plating 4.88 22 20.65
1120080060SD603P
M8 60 raw 4.88 22 20.65
1120080065BD603P
M8 65 white zinc plating 4.88 22 20.65
1120080065SD603P
M8 65 raw 4.88 22 20.65
1120080070BD603P
M8 70 white zinc plating 4.88 22 20.65
1120080070SD603P
M8 70 raw 4.88 22 20.65
1120080070SP
M8 70 raw 4.88 22 20.65
1120080075BD603P
M8 75 white zinc plating 4.88 22 20.65
1120080075SD603P
M8 75 raw 4.88 22 20.65
1120080080BD603P
M8 80 white zinc plating 4.88 22 20.65
1120080080SD603P
M8 80 raw 4.88 22 20.65
1120080090BD603P
M8 90 white zinc plating 4.88 22 20.65
1120080090SD603P
M8 90 raw 4.88 22 20.65
1120080100BD603P
M8 100 white zinc plating 4.88 22 20.65
1120080100SD603P
M8 100 raw 4.88 22 20.65
1120080110BD603P
M8 110 white zinc plating 4.88 22 20.65
1120080110SD603P
M8 110 raw 4.88 22 20.65
1120080120BD603P
M8 120 white zinc plating 4.88 22 20.65
1120080120SD603P
M8 120 raw 4.88 22 20.65
1120080130BD603P
M8 130 white zinc plating 4.88 28 20.65
1120080130SD603P
M8 130 raw 4.88 28 20.65
1120080140BD603P
M8 140 white zinc plating 4.88 28 20.65
1120080140SD603P
M8 140 raw 4.88 28 20.65
1120080150BD603P
M8 150 white zinc plating 4.88 28 20.65
1120080150SD603P
M8 150 raw 4.88 28 20.65
1120080160BD603P
M8 160 white zinc plating 4.88 28 20.65
1120080160SD603P
M8 160 raw 4.88 28 20.65
1120080170BD603P
M8 170 white zinc plating 4.88 28 20.65
1120080170SD603P
M8 170 raw 4.88 28 20.65
1120080180BD603P
M8 180 white zinc plating 4.88 28 20.65
1120080180SD603P
M8 180 raw 4.88 28 20.65
1120080190BD603P
M8 190 white zinc plating 4.88 28 20.65
1120080200BD603P
M8 200 white zinc plating 4.88 28 20.65
1120100020BD603P
M10 20 white zinc plating 5.38 24.65
1120100020SD603P
M10 20 raw 5.38 24.65
1120100025BD603P
M10 25 white zinc plating 5.38 24.65
1120100025SD603P
M10 25 raw 5.38 24.65
1120100030BD603P
M10 30 white zinc plating 5.38 24.65
1120100030SD603P
M10 30 raw 5.38 24.65
1120100035BD603P
M10 35 white zinc plating 5.38 24.65
1120100035SD603P
M10 35 raw 5.38 24.65
1120100040BD603P
M10 40 white zinc plating 5.38 24.65
1120100040SD603P
M10 40 raw 5.38 24.65
1120100045BD603P
M10 45 white zinc plating 5.38 26 24.65
1120100045SD603P
M10 45 raw 5.38 26 24.65
1120100050BD603P
M10 50 white zinc plating 5.38 26 24.65
1120100050SD603P
M10 50 raw 5.38 26 24.65
1120100055BD603P
M10 55 white zinc plating 5.38 26 24.65
1120100055SD603P
M10 55 raw 5.38 26 24.65
1120100060BD603P
M10 60 white zinc plating 5.38 26 24.65
1120100060SD603P
M10 60 raw 5.38 26 24.65
1120100065BD603P
M10 65 white zinc plating 5.38 26 24.65
1120100065SD603P
M10 65 raw 5.38 26 24.65
1120100070BD603P
M10 70 white zinc plating 5.38 26 24.65
1120100070SD603P
M10 70 raw 5.38 26 24.65
1120100075BD603P
M10 75 white zinc plating 5.38 26 24.65
1120100080BD603P
M10 80 white zinc plating 5.38 26 24.65
1120100080SD603P
M10 80 raw 5.38 26 24.65
1120100090BD603P
M10 90 white zinc plating 5.38 26 24.65
1120100090SD603P
M10 90 raw 5.38 26 24.65
1120100100BD603P
M10 100 white zinc plating 5.38 26 24.65
1120100100SD603P
M10 100 raw 5.38 26 24.65
1120100110BD603P
M10 110 white zinc plating 5.38 26 24.65
1120100110SD603P
M10 110 raw 5.38 26 24.65
1120100120BD603P
M10 120 white zinc plating 5.38 26 24.65
1120100120SD603P
M10 120 raw 5.38 26 24.65
1120100130BD603P
M10 130 white zinc plating 5.38 32 24.65
1120100130SD603P
M10 130 raw 5.38 32 24.65
1120100140BD603P
M10 140 white zinc plating 5.38 32 24.65
1120100140SD603P
M10 140 raw 5.38 32 24.65
1120100150BD603P
M10 150 white zinc plating 5.38 32 24.65
1120100150SD603P
M10 150 raw 5.38 32 24.65
1120100160BD603P
M10 160 white zinc plating 5.38 32 24.65
1120100160SD603P
M10 160 raw 5.38 32 24.65
1120100170BD603P
M10 170 white zinc plating 5.38 32 24.65
1120100170SD603P
M10 170 raw 5.38 32 24.65
1120100180BD603P
M10 180 white zinc plating 5.38 32 24.65
1120100180SD603P
M10 180 raw 5.38 32 24.65
1120100190BD603P
M10 190 white zinc plating 5.38 32 24.65
1120100190SD603P
M10 190 raw 5.38 32 24.65
1120100200BD603P
M10 200 white zinc plating 5.38 32 24.65
1120100200SD603P
M10 200 raw 5.38 32 24.65
1120100220BD603P
M10 220 white zinc plating 5.38 45 24.65
1120100220SD603P
M10 220 raw 5.38 45 24.65
1120100240BD603P
M10 240 white zinc plating 5.38 45 24.65
1120100240SD603P
M10 240 raw 5.38 45 24.65
1120100260BD603P
M10 260 white zinc plating 5.38 45 24.65
1120100260SD603P
M10 260 raw 5.38 45 24.65
1120100280BD603P
M10 280 white zinc plating 5.38 45 24.65
1120100280SD603P
M10 280 raw 5.38 45 24.65
1120100300BD603P
M10 300 white zinc plating 5.38 45 24.65
1120100300SD603P
M10 300 raw 5.38 45 24.65
1120120025SD603P
M12 25 raw 6.95 30.65
1120120030BD603P
M12 30 white zinc plating 6.95 30.65
1120120030SD603P
M12 30 raw 6.95 30.65
1120120035BD603P
M12 35 white zinc plating 6.95 30.65
1120120035SD603P
M12 35 raw 6.95 30.65
1120120040BD603P
M12 40 white zinc plating 6.95 30.65
1120120040SD603P
M12 40 raw 6.95 30.65
1120120045BD603P
M12 45 white zinc plating 6.95 30.65
1120120045SD603P
M12 45 raw 6.95 30.65
1120120050BD603P
M12 50 white zinc plating 6.95 30.65
1120120050SD603P
M12 50 raw 6.95 30.65
1120120055BD603P
M12 55 white zinc plating 6.95 30 30.65
1120120055SD603P
M12 55 raw 6.95 30 30.65
1120120060BD603P
M12 60 white zinc plating 6.95 30 30.65
1120120060SD603P
M12 60 raw 6.95 30 30.65
1120120065BD603P
M12 65 white zinc plating 6.95 30 30.65
1120120065SD603P
M12 65 raw 6.95 30 30.65
1120120070BD603P
M12 70 white zinc plating 6.95 30 30.65
1120120070SD603P
M12 70 raw 6.95 30 30.65
1120120075BD603P
M12 75 white zinc plating 6.95 30 30.65
1120120075SD603P
M12 75 raw 6.95 30 30.65
1120120080BD603P
M12 80 white zinc plating 6.95 30 30.65
1120120080SD603P
M12 80 raw 6.95 30 30.65
1120120090BD603P
M12 90 white zinc plating 6.95 30 30.65
1120120090SD603P
M12 90 raw 6.95 30 30.65
1120120100BD603P
M12 100 white zinc plating 6.95 30 30.65
1120120100SD603P
M12 100 raw 6.95 30 30.65
1120120110BD603P
M12 110 white zinc plating 6.95 30 30.65
1120120110SD603P
M12 110 raw 6.95 30 30.65
1120120120BD603P
M12 120 white zinc plating 6.95 30 30.65
1120120120SD603P
M12 120 raw 6.95 30 30.65
1120120130BD603P
M12 130 white zinc plating 6.95 36 30.65
1120120130SD603P
M12 130 raw 6.95 36 30.65
1120120140BD603P
M12 140 white zinc plating 6.95 36 30.65
1120120140SD603P
M12 140 raw 6.95 36 30.65
1120120150BD603P
M12 150 white zinc plating 6.95 36 30.65
1120120150SD603P
M12 150 raw 6.95 36 30.65
1120120160BD603P
M12 160 white zinc plating 6.95 36 30.65
1120120160SD603P
M12 160 raw 6.95 36 30.65
1120120170BD603P
M12 170 white zinc plating 6.95 36 30.65
1120120170SD603P
M12 170 raw 6.95 36 30.65
1120120180BD603P
M12 180 white zinc plating 6.95 36 30.65
1120120180SD603P
M12 180 raw 6.95 36 30.65
1120120190BD603P
M12 190 white zinc plating 6.95 36 30.65
1120120190SD603P
M12 190 raw 6.95 36 30.65
1120120200BD603P
M12 200 white zinc plating 6.95 36 30.65
1120120200SD603P
M12 200 raw 6.95 36 30.65
1120120220BD603P
M12 220 white zinc plating 6.95 49 30.65
1120120220SD603P
M12 220 raw 6.95 49 30.65
1120120240BD603P
M12 240 white zinc plating 6.95 49 30.65
1120120240SD603P
M12 240 raw 6.95 49 30.65
1120120250BD603P
M12 250 white zinc plating 6.95 49 30.65
1120120250SD603P
M12 250 raw 6.95 49 30.65
1120120260BD603P
M12 260 white zinc plating 6.95 49 30.65
1120120260SD603P
M12 260 raw 6.95 49 30.65
1120120280BD603P
M12 280 white zinc plating 6.95 49 30.65
1120120280SD603P
M12 280 raw 6.95 49 30.65
1120120300BD603P
M12 300 white zinc plating 6.95 49 30.65
1120120300SD603P
M12 300 raw 6.95 49 30.65
1120120320BD603P
M12 320 white zinc plating 6.95 49 30.65
1120120320SD603P
M12 320 raw 6.95 49 30.65
1120120340BD603P
M12 340 white zinc plating 6.95 49 30.65
1120120340SD603P
M12 340 raw 6.95 49 30.65
1120120360BD603P
M12 360 white zinc plating 6.95 49 30.65
1120120360SD603P
M12 360 raw 6.95 49 30.65
1120120380BD603P
M12 380 white zinc plating 6.95 49 30.65
1120120380SD603P
M12 380 raw 6.95 49 30.65
1120120400BD603P
M12 400 white zinc plating 6.95 49 30.65
1120120400SD603P
M12 400 raw 6.95 49 30.65
1120160035BD603P
M16 35 white zinc plating 8.95 38.8
1120160040BD603P
M16 40 white zinc plating 8.95 38.8
1120160040SD603P
M16 40 raw 8.95 38.8
1120160045BD603P
M16 45 white zinc plating 8.95 38.8
1120160045SD603P
M16 45 raw 8.95 38.8
1120160050BD603P
M16 50 white zinc plating 8.95 38.8
1120160050SD603P
M16 50 raw 8.95 38.8
1120160055BD603P
M16 55 white zinc plating 8.95 38.8
1120160055SD603P
M16 55 raw 8.95 38.8
1120160060BD603P
M16 60 white zinc plating 8.95 38.8
1120160060SD603P
M16 60 raw 8.95 38.8
1120160065BD603P
M16 65 white zinc plating 8.95 38 38.8
1120160065SD603P
M16 65 raw 8.95 38 38.8
1120160070BD603P
M16 70 white zinc plating 8.95 38 38.8
1120160070SD603P
M16 70 raw 8.95 38 38.8
1120160075BD603P
M16 75 white zinc plating 8.95 38 38.8
1120160075SD603P
M16 75 raw 8.95 38 38.8
1120160080BD603P
M16 80 white zinc plating 8.95 38 38.8
1120160080SD603P
M16 80 raw 8.95 38 38.8
1120160090BD603P
M16 90 white zinc plating 8.95 38 38.8
1120160090SD603P
M16 90 raw 8.95 38 38.8
1120160100BD603P
M16 100 white zinc plating 8.95 38 38.8
1120160100SD603P
M16 100 raw 8.95 38 38.8
1120160110BD603P
M16 110 white zinc plating 8.95 38 38.8
1120160110SD603P
M16 110 raw 8.95 38 38.8
1120160120BD603P
M16 120 white zinc plating 8.95 38 38.8
1120160120SD603P
M16 120 raw 8.95 38 38.8
1120160130BD603P
M16 130 white zinc plating 8.95 44 38.8
1120160130SD603P
M16 130 raw 8.95 44 38.8
1120160140BD603P
M16 140 white zinc plating 8.95 44 38.8
1120160140SD603P
M16 140 raw 8.95 44 38.8
1120160150BD603P
M16 150 white zinc plating 8.95 44 38.8
1120160150SD603P
M16 150 raw 8.95 44 38.8
1120160160BD603P
M16 160 white zinc plating 8.95 44 38.8
1120160160SD603P
M16 160 raw 8.95 44 38.8
1120160170BD603P
M16 170 white zinc plating 8.95 44 38.8
1120160170SD603P
M16 170 raw 8.95 44 38.8
1120160180BD603P
M16 180 white zinc plating 8.95 44 38.8
1120160180SD603P
M16 180 raw 8.95 44 38.8
1120160190BD603P
M16 190 white zinc plating 8.95 44 38.8
1120160200BD603P
M16 200 white zinc plating 8.95 44 38.8
1120160200SD603P
M16 200 raw 8.95 44 38.8
1120160220BD603P
M16 220 white zinc plating 8.95 57 38.8
1120160220SD603P
M16 220 raw 8.95 57 38.8
1120160240BD603P
M16 240 white zinc plating 8.95 57 38.8
1120160240SD603P
M16 240 raw 8.95 57 38.8
1120160260BD603P
M16 260 white zinc plating 8.95 57 38.8
1120160260SD603P
M16 260 raw 8.95 57 38.8
1120160280BD603P
M16 280 white zinc plating 8.95 57 38.8
1120160280SD603P
M16 280 raw 8.95 57 38.8
1120160300BD603P
M16 300 white zinc plating 8.95 57 38.8
1120160300SD603P
M16 300 raw 8.95 57 38.8
1120160320BD603P
M16 320 white zinc plating 8.95 57 38.8
1120160320SD603P
M16 320 raw 8.95 57 38.8
1120160340BD603P
M16 340 white zinc plating 8.95 57 38.8
1120160340SD603P
M16 340 raw 8.95 57 38.8
1120160360BD603P
M16 360 white zinc plating 8.95 57 38.8
1120160360SD603P
M16 360 raw 8.95 57 38.8
1120160380BD603P
M16 380 white zinc plating 8.95 57 38.8
1120160400BD603P
M16 400 white zinc plating 8.95 57 38.8
1120160400SD603P
M16 400 raw 8.95 57 38.8
1120200080BD603P
M20 80 white zinc plating 11.05 46 46.8
1120200080SD603P
M20 80 raw 11.05 46 46.8
1120200100BD603P
M20 100 white zinc plating 11.05 46 46.8
1120200100SD603P
M20 100 raw 11.05 46 46.8
1120200120BD603P
M20 120 white zinc plating 11.05 46 46.8
1120200120SD603P
M20 120 raw 11.05 46 46.8
1120200140BD603P
M20 140 white zinc plating 11.05 52 46.8
1120200140SD603P
M20 140 raw 11.05 52 46.8
1120200160SD603P
M20 160 raw 11.05 52 46.8
1120200180BD603P
M20 180 white zinc plating 11.05 52 46.8
1120200180SD603P
M20 180 raw 11.05 52 46.8
1120200200BD603P
M20 200 white zinc plating 11.05 52 46.8
1120200200SD603P
M20 200 raw 11.05 52 46.8
1120200220SD603P
M20 220 raw 11.05 65 46.8
1120200240BD603P
M20 240 white zinc plating 11.05 65 46.8
1120200240SD603P
M20 240 raw 11.05 65 46.8
1120200280BD603P
M20 280 white zinc plating 11.05 65 46.8
1120200280SD603P
M20 280 raw 11.05 65 46.8
1120200300BD603P
M20 300 white zinc plating 11.05 65 46.8
1120200300SD603P
M20 300 raw 11.05 65 46.8
Welcome to our innovative product configurator!
This interactive way of personalization allows you to create the perfect product tailored to your own preferences. Simply choose from various options such as size, material or coating and watch live as your product takes on a unique character. Thanks to this tool, you have control over every detail, ensuring that the final product will meet all your expectations. Browse through a wide range of options, play with personalization and enjoy the final effect - a product created especially for you!
Choose category
śruby i wkręty bolts and screws
szpilki i pręty gwintowane Threaded studs and rods
nity rivets
Search results Close
