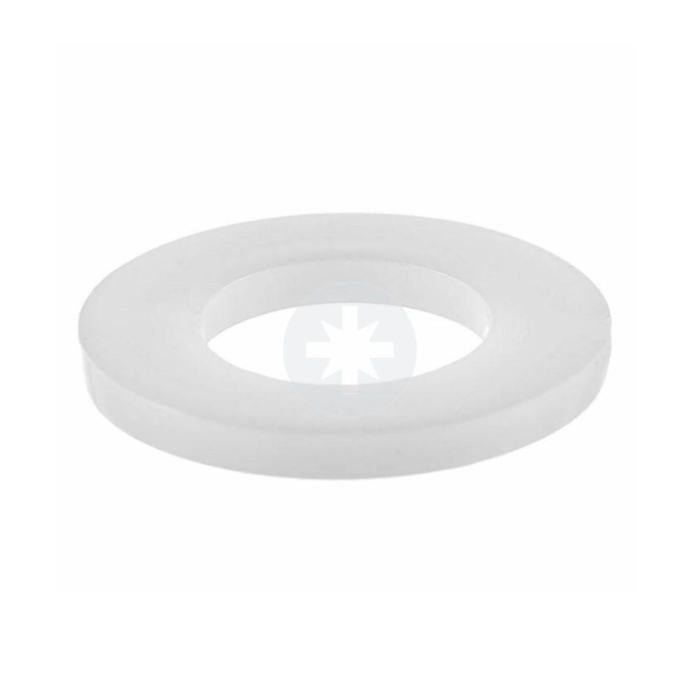

PA6 Round Washer (Polyamide)

Name: PA6 Round Washer (Polyamide)
Price: 1 PLN
Availability: InStock

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Hole diameter M [mm]

Outer diameter D [mm]

Inner diameter d [mm]

Thickness h [mm]

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Hole diameter M [mm]	Outer diameter D [mm]	Inner diameter d [mm]	Thickness h [mm]	Standard	Unit of measure	Availability

1435030PAD34815T	M3	7	3.2	0.5	DIN 34815	THS	Product on request
1435040PAD34815T					DIN 34815	THS	Product on request
1435050PAD34815T					DIN 34815	THS	Product on request
1435060PAD34815T					DIN 34815	THS	Product on request
1435080PAD34815T					DIN 34815	THS	Product on request
1435100PAD34815T					DIN 34815	THS	Product on request
1435120PAD34815T	M12	24	13	2.5	DIN 34815	THS	Product on request
1435140PAD34815T	M14	28	15	2.5	DIN 34815	THS	Product on request
1435160PAD34815T	M16	30	17	3.0	DIN 34815	THS	Product on request
1435200PAD34815T	M20	37	21	3.0	DIN 34815	THS	Product on request
1435240PAD34815T	M24	44	25	4.0	DIN 34815	THS	Product on request
