Pan head euro screw

34
.
04
EK

Pan head Euro screw is a versatile fastening element widely used in various fields, especially in construction and industry. Its specially designed structure enables effective joining of different materials, ensuring durability and reliability under various conditions.

Applications:

The pan head Euro screw is widely used in construction, the furniture industry, automotive applications, and many other fields. It can be used for assembling metal structures, wood, plastics, and other materials.

Benefits:

  • Durability and reliability.
  • Versatility – ideal for various applications.
  • Evenly distributed thread along the entire length.
  • Corrosion resistance due to proper coating.
  • Easy installation and removal.
View in store

Recommended

Group
3404

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

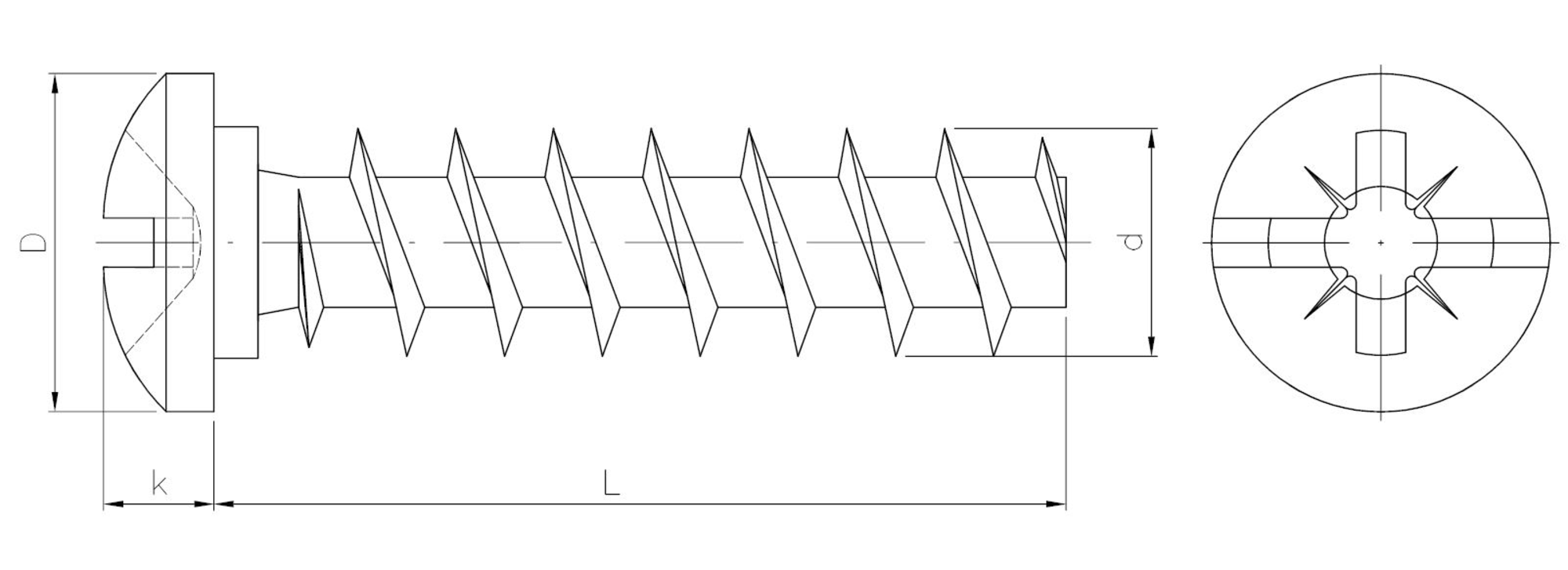

Dimension d [mm]
Dimension L [mm]
Dimension D [mm]
Recess
Dimension k [mm]
Packaging type
Variety of coating
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Dimension D [mm] Recess Dimension k [mm] Packaging type Variety of coating Unit of measure Availability Show More
34040630115PZBT
6.3 11.5 9.3 PZ 2 3 Cardboard white zinc plating THS
34040630130PZBF16T
PK Cardboard white zinc plating THS
34040630130PZBT
6.3 13.0 9.3 PZ 2 3 Cardboard white zinc plating THS
34040630160PZBF16T
PK Cardboard white zinc plating THS
34040630160PZBK
PK Cardboard white zinc plating KG
34040630160PZBT
6.3 16.0 9.3 PZ 2 3 Cardboard white zinc plating THS
34040630200PZBT
6.3 20.0 9.3 PZ 2 3 Cardboard white zinc plating THS
34040630240PZBT
6.3 24.0 9.3 PZ 2 3 Cardboard white zinc plating THS
34040630300PZBT
6.3 30.0 9.3 PZ 2 3 Cardboard white zinc plating THS
34040630330PKBT
PK Cardboard white zinc plating THS
34040630450PKBT
6.3 45.0 9.3 PK 3 Cardboard white zinc plating THS
