Pan head screw with pilot for plastics

33
.
07
TW

The plastic screw with a cylinder head and insert is a specially designed assembly element that is widely used in connecting various types of plastics. This innovative screw allows for effective and durable assembly without the need to drill holes in the materials, which significantly speeds up assembly processes.

Application:

The plastic screw with a cylinder head and insert is ideal for connecting various types of plastics, such as PVC, polypropylene, polyethylene and others. It is especially useful in projects that require quick assembly without the need to drill holes.

Features and benefits:

Quick and easy assembly without drilling holes.
Easy-to-insert thread for secure and durable connections.
The cylinder head with insert makes it easy to start screwing.
Corrosion resistance thanks to a protective coating or material.
Ideal for projects that require precise connections in plastics.

DOWNLOADABLE DOCUMENTS

Recommended

Group
3307

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

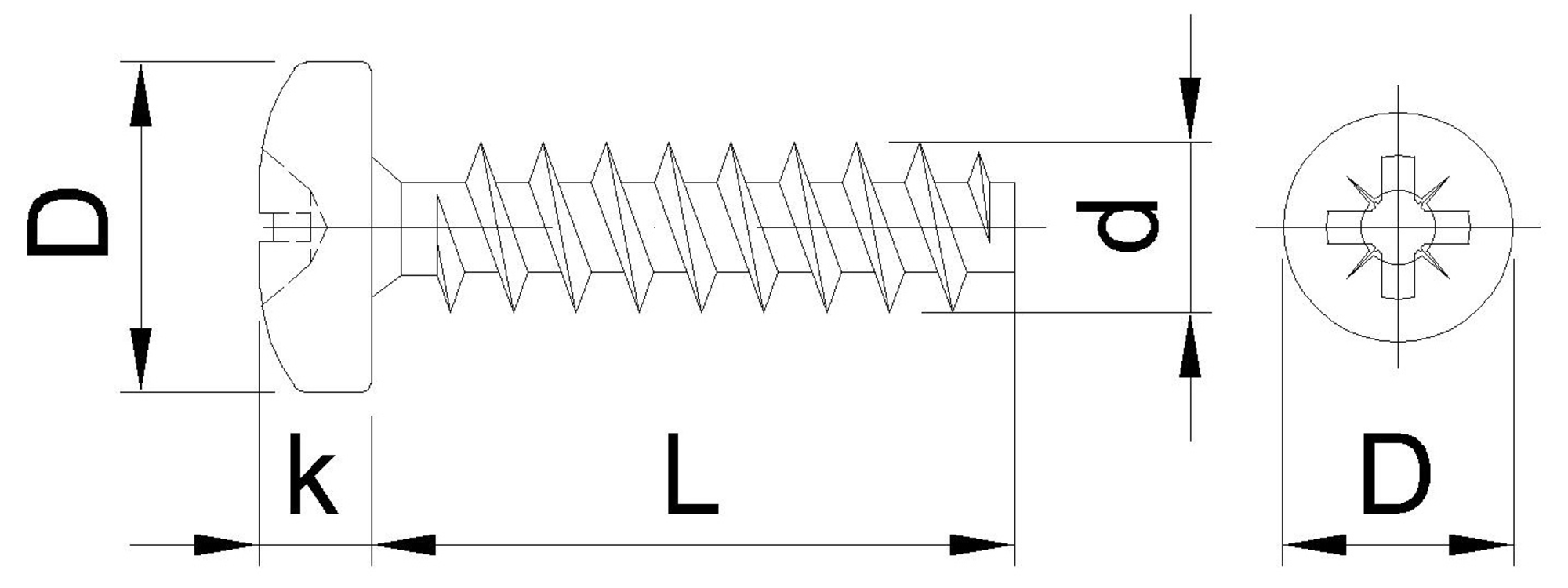

Dimension d [mm]
Dimension L [mm]
Dimension D [mm]
Recess
Variety of coating
Dimension k [mm]
Thread ending
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Dimension D [mm] Recess Variety of coating Dimension k [mm] Thread ending Unit of measure Availability Show More
3307025005TXBSAT
2.5 5 4.4 TX 10 white zinc plating 1.9 Cut THS
3307025006TXBSAT
2.5 6 4.4 TX 10 white zinc plating 1.9 Cut THS
3307025006TXBST
2.5 6 4.4 THS
3307025008TXBSAT
2.5 8 4.4 TX 10 white zinc plating 1.9 Cut THS
3307025008TXBST
2.5 8 4.4 TX 10 white zinc plating Cut THS
3307025010TXBSAT
2.5 10 4.4 TX 10 white zinc plating 1.9 Cut THS
3307030006TXBSAT
3.0 6 5.6 TX 10 white zinc plating 2.4 Cut THS
3307030008TXBSAT
3.0 8 5.6 TX 10 white zinc plating 2.4 Cut THS
3307030010TXBSAT
3.0 10 5.6 TX 10 white zinc plating 2.4 Cut THS
3307030012TXBBN65T
3.0 12 5.6 TX 10 white zinc plating THS
3307030012TXBSAT
3.0 12 5.6 TX 10 white zinc plating 2.4 Cut THS
3307030014TXBSAT
3.0 14 5.6 TX 10 white zinc plating 2.4 Cut THS
3307030016TXBSAT
3.0 16 5.6 TX 10 white zinc plating 2.4 Cut THS
3307030020TXBSAT
3.0 20 5.6 TX 10 white zinc plating 2.4 Cut THS
3307030025TXBSAT
3.0 25 5.6 TX 10 white zinc plating 2.4 Cut THS
3307031010TXBST
3.1 10 5.9 TX 10 white zinc plating Cut THS
3307031012PCBVF14T
3.1 12 5.9 PH 1 white zinc plating With pilot THS
3307031016PZSVT
3.1 16 5.9 PZ 1 raw With pilot THS
3307035008TXBST
3.5 8 6.9 TX 15 white zinc plating Cut THS
3307035010TXBSAT
3.5 10 6.9 TX 15 white zinc plating 2.7 Cut THS
3307035012TXBSAT
3.5 12 6.9 TX 15 white zinc plating 2.7 Cut THS
3307035014TXBSAT
3.5 14 6.9 TX 15 white zinc plating 2.7 Cut THS
3307035020TXBSAT
3.5 20 6.9 TX 15 white zinc plating 2.7 Cut THS
3307036035TXBVT
3.6 35 TX 15 white zinc plating With pilot THS
3307040008TXBSAT
4.0 8 7.5 TX 20 white zinc plating 3.1 Cut THS
3307040010TXBSAT
4.0 10 7.5 TX 20 white zinc plating 3.1 Cut THS
3307040012TXBSAT
4.0 12 7.5 TX 20 white zinc plating 3.1 Cut THS
3307040014TXBSAT
4.0 14 7.5 TX 20 white zinc plating 3.1 Cut THS
3307040014TXBT
4.0 14 7.5 TX 20 white zinc plating Cut THS
3307040016TXBSAT
4.0 16 7.5 TX 20 white zinc plating 3.1 Cut THS
3307040018TXBSAT
4.0 18 7.5 TX 20 white zinc plating 3.1 Cut THS
3307040020TXBSAT
4.0 20 7.5 TX 20 white zinc plating 3.1 Cut THS
3307040025TXBSAT
4.0 25 7.5 TX 20 white zinc plating 3.1 Cut THS
3307040030TXBSAT
4.0 30 7.5 TX 20 white zinc plating 3.1 Cut THS
3307050010TXBSAT
5.0 10 8.2 TX 25 white zinc plating 3.8 Cut THS
3307050012TXBSAT
5.0 12 8.2 TX 25 white zinc plating 3.8 Cut THS
3307050014TXBSAT
5.0 14 8.2 TX 25 white zinc plating 3.8 Cut THS
3307050016TXBSAT
5.0 16 8.2 TX 25 white zinc plating 3.8 Cut THS
3307050020TXBSAT
5.0 20 8.2 TX 25 white zinc plating 3.8 Cut THS
3307051020PHCST
5.1 20 9.6 PH 2 black zinc plating Cut THS
3307061020PZBVT
6.1 20 PZ 3 white zinc plating With pilot THS
3307025005TXBST
2.5 5 4.4 THS
3307025010TXBST
2.5 10 4.4 THS
3307030008TXBVT
3.0 8 5.6 THS
3307030010TXBVT
3.0 10 5.6 THS
3307030012TXBVT
3.0 12 5.6 THS
3307030014TXBVT
3.0 14 5.6 THS
3307030016TXBVT
3.0 16 5.6 THS
3307030020TXBVT
3.0 20 5.6 THS
3307030025TXBVT
3.0 25 5.6 THS
3307035010TXBVT
3.5 10 THS
3307035012TXBVT
3.5 12 THS
3307035014TXBVT
3.5 14 THS
3307035016TXBVT
3.5 16 THS
3307035018TXBVT
3.5 18 THS
3307035020TXBVT
3.5 20 THS
3307040006TXBVT
4.0 6 7.5 THS
3307040008TXBVT
4.0 8 7.5 THS
3307040010TXBVT
4.0 10 7.5 THS
3307040012TXBVT
4.0 12 7.5 THS
3307040014TXBVT
4.0 14 7.5 THS
3307040016TXBVT
4.0 16 7.5 THS
3307040018TXBVT
4.0 18 7.5 THS
3307040020TXBVT
4.0 20 7.5 THS
3307040025TXBVT
4.0 25 7.5 THS
3307040030TXBVT
4.0 30 7.5 THS
3307050010TXBVT
5.0 10 THS
3307050012TXBVT
5.0 12 THS
3307050014TXBVT
5.0 14 THS
3307050016TXBVT
5.0 16 THS
3307050020TXBVT
5.0 20 THS
3307050025TXBVT
5.0 25 TX 25 white zinc plating With pilot THS
3307060014TXBVT
6.0 14 TX 30 white zinc plating With pilot THS
3307060016TXBVT
6.0 16 TX 30 white zinc plating With pilot THS
3307060020TXBVT
6.0 20 TX 30 white zinc plating With pilot THS
3307060025TXBVT
6.0 25 TX 30 white zinc plating With pilot THS
3307030008TXCVT
3.0 8 TX 10 black zinc plating With pilot THS
3307030010TXCVT
3.0 10 TX 10 black zinc plating With pilot THS
3307035010TXCVT
3.5 10 TX 15 black zinc plating With pilot THS
3307035012TXCVT
3.5 12 TX 15 black zinc plating With pilot THS
3307035014TXCVT
3.5 14 TX 15 black zinc plating With pilot THS
3307035016TXCVT
3.5 16 TX 15 black zinc plating With pilot THS
3307035020TXCVT
3.5 20 TX 15 black zinc plating With pilot THS
3307050012TXCVT
5.0 12 TX 25 black zinc plating With pilot THS
3307050016TXCVT
5.0 16 TX 25 black zinc plating With pilot THS
3307031014PZBSAAT
THS
