Peeled blind rivet, aluminum-steel

24
.
10
Nit ASR

The peeled blind rivet is a fastener with particularly useful properties, allowing for a solid connection between materials such as aluminum and steel. With its flat head, it enables easy and stable fastening, making it ideal for applications where a durable and reliable connection between two different materials is essential.

Applications:

  • Aluminum Structures: Perfect for assembling aluminum constructions, such as profiles, frames, and plates, as well as steel elements like sheets, pipes, or steel profiles.
  • Furniture Manufacturing: Used in the assembly of furniture structures, especially where a connection between aluminum and steel is required, as well as ease of disassembly.
  • Construction Industry: Applied in the assembly of both light and heavy structures, where the durability and reliability of the connection are crucial.
  • Automotive Applications: Ideal for mounting aluminum and steel components in vehicle structures.

Benefits:

  • Excellent Aluminum and Steel Connection: Ensures durability and strength of the joint.
  • Easy Disassembly: The rivet’s peelability allows for easy removal when necessary, facilitating maintenance and servicing.
  • Flat Head Design: Simplifies installation and ensures even distribution of force across the joined materials.
  • High-Quality Materials: Provide durability and corrosion resistance, translating to long-lasting use.
  • Versatile Applications: Suitable for a wide range of uses, ensuring versatility and flexibility in application.
Ask for product

Product inquiry form

Recommended

Group
2410

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

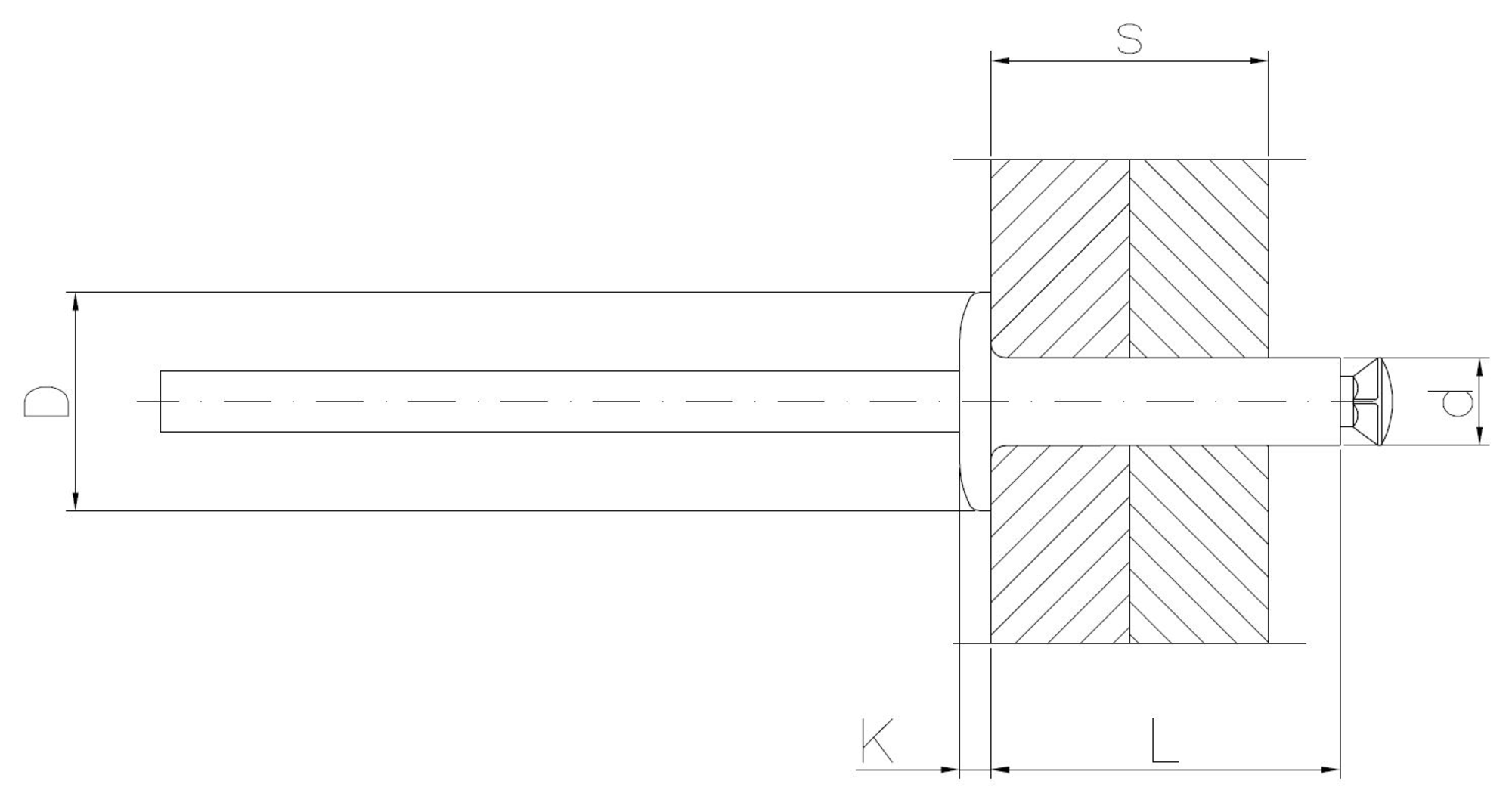

Diameter d [mm]
Length L [mm]
Flange diameter D [mm]
Riveting range s [mm]
Flange thickness k [mm]
Combined materials
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Diameter d [mm] Length L [mm] Flange diameter D [mm] Riveting range s [mm] Flange thickness k [mm] Combined materials Unit of measure Availability Show More
2410040100AST
4.0 10 8.0 1.5-5.0 1.7 Alu / Steel THS
2410040120AST
4.0 12 8.0 4.0-6.5 1.7 Alu / Steel THS
2410040160AST
4.0 16 8.0 6.0-9.0 1.7 Alu / Steel THS
2410040180AST
4.0 18 Alu / Steel THS
2410040200AST
4.0 20 8.0 12.0-15.0 1.7 Alu / Steel THS
2410048120AST
4.8 12 Alu / Steel THS
2410048160AST
4.8 16 10.0 5.0-8.5 2.0 Alu / Steel THS
2410048180AST
4.8 18 10.0 8.0-12.0 2.0 Alu / Steel THS
2410048210AST
4.8 21 10.0 11.0-15.0 2.0 Alu / Steel THS
2410048240AST
4.8 24 10.0 16.0-19.0 2.0 Alu / Steel THS
2410048300AST
4.8 30 Alu / Steel THS
2410048320AST
4.8 32 Alu / Steel THS
