Perforated plate

62
.
03
PP

A perforated plate is a specialized element used in construction and other fields, characterized by perforations or holes arranged at regular intervals on its surface. These holes give the plate lightness while allowing it to effectively reinforce and be utilized in various construction projects.

Applications:

  • Construction: Perforated plates are used in construction to reinforce structures, floors, ceilings, and other structural elements.
  • Industry: They are utilized in industry as structural components in machines, equipment, platforms, and other industrial projects.
  • Architecture: Employed in architecture to create decorative facades, railings, ornamental elements, and other constructions.

Benefits:

  • Perforations provide lightness to the plate, facilitating handling and installation.
  • Ability to customize the size and arrangement of holes for specific applications.
  • Corrosion resistance and durability depending on the construction material used.
  • Ease of processing allows the plate to be tailored to specific project requirements.

Recommended

Group
6203

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

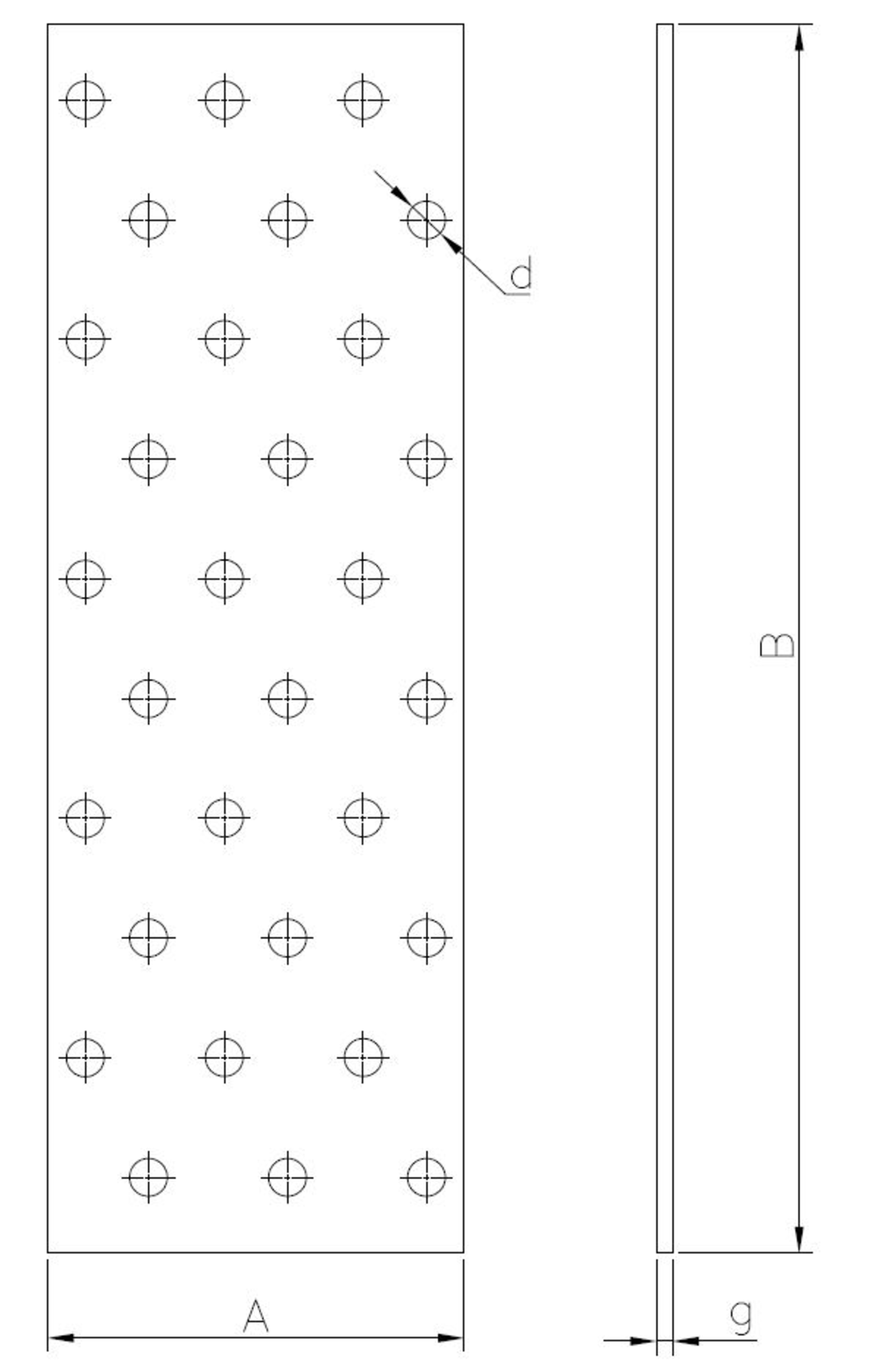

Designation
Width A [mm]
Dimension B [mm]
Dimension d [mm]
Variety of coating
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Material index
More attributes
Designation Width A [mm] Dimension B [mm] Dimension d [mm] Variety of coating Unit of measure Availability Show More
6203PP000400120S
white zinc plating PCS
6203PP000401200S
PP0 40 1200 white zinc plating PCS
6203PP000601200S
PP0 60 1200 white zinc plating PCS
6203PP000801200S
PP0 80 1200 white zinc plating PCS
6203PP001000240S
white zinc plating PCS
6203PP001001200S
white zinc plating PCS
6203PP002001200S
PP 200 1200 white zinc plating PCS
6203PP010400080S
PP1 40 80 8 x Ø5 white zinc plating PCS
6203PP020400100S
PP2 40 100 10 x Ø5 white zinc plating PCS
6203PP030400120S
PP3 40 120 12 x Ø5 white zinc plating PCS
6203PP040400160S
PP4 40 160 16 x Ø5 white zinc plating PCS
6203PP050600140S
PP5 60 140 21 x Ø5 white zinc plating PCS
6203PP060600160S
PP6 60 160 24 x Ø5 white zinc plating PCS
6203PP070600200S
PP7 60 200 30 x Ø5 white zinc plating PCS
6203PP080600240S
PP8 60 240 36 x Ø5 white zinc plating PCS
6203PP090800200S
PP9 80 200 40 x Ø5 white zinc plating PCS
6203PP100800240S
PP10 80 240 48 x Ø5 white zinc plating PCS
6203PP110800300S
PP11 80 300 60 x Ø5 white zinc plating PCS
6203PP121000200S
PP12 100 200 50 x Ø5 white zinc plating PCS
6203PP131000240S
PP13 100 240 60 x Ø5 white zinc plating PCS
6203PP141000260S
PP14 100 260 65 x Ø5 white zinc plating PCS
6203PP151000300S
PP15 100 300 75 x Ø5 white zinc plating PCS
6203PP161000400S
PP16 100 400 100 x Ø5 white zinc plating PCS
6203PP171000500S
PP17 100 500 125 x Ø5 white zinc plating PCS
6203PP181200200S
PP18 120 200 60 x Ø5 white zinc plating PCS
6203PP191200240S
PP19 120 240 72 x Ø5 white zinc plating PCS
6203PP201200260S
PP20 120 260 78 x Ø5 white zinc plating PCS
6203PP211200300S
PP21 120 300 90 x Ø5 white zinc plating PCS
6203PP221400400S
PP22 140 400 140 x Ø5 white zinc plating PCS
6203PP231600400S
PP23 160 400 160 x Ø5 white zinc plating PCS
6203PP242000300S
PP24 200 300 150 x Ø5 white zinc plating PCS
