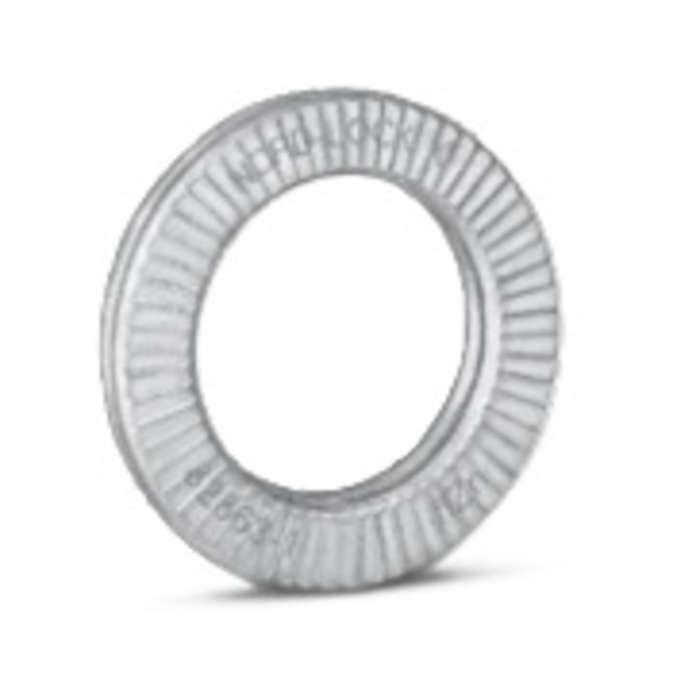

Nord Lock NLX Self-Locking Washer

14
.
54

To ensure the unique mechanical locking function of Nord-Lock X-series washers, the hardness of the mating surfaces must be lower than the hardness of the Nord-Lock X-series washers.

Material Standard: Steel EN 1.7225

Hardening: Hardened

Coating: Base Coat: Delta Protekt® KL100 zinc flake coating Top Coat: VH 302 GZ

Corrosion Resistance: Minimum 1,000 hours in salt spray according to ISO 9227

Temperature Range: -40°C to 150°C

Send product inquiry

Product inquiry form

Recommended

Group
1454

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Size
Dimension D [mm]
Dimension d [mm]
T [mm]
Variety of coating
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes

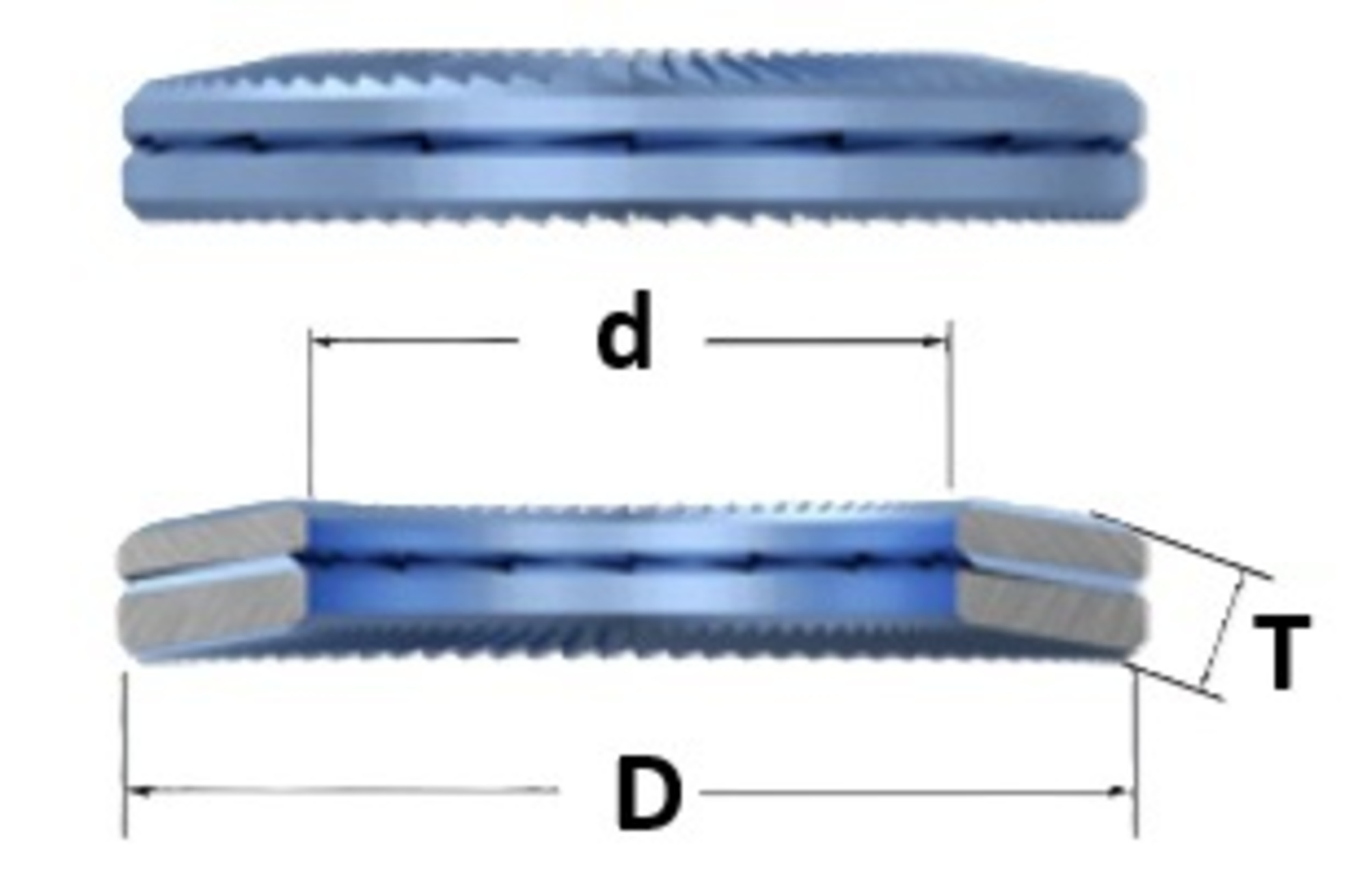

Size Dimension D [mm] Dimension d [mm] T [mm] Variety of coating Availability Show More
1454060108DPNLXS
M6 10.8 6.3 1.6 Delta Protect KL100
1454080135DPNLXS
M8 13.5 8.4 2.2 Delta Protect KL100
1454100166DPNLXS
M10 16.6 10.5 2.8 Delta Protect KL100
1454120195DPNLXS
M12 19.5 12.5 2.4 Delta Protect KL100
1454140230DPNLXS
M14 23.0 14.6 3.9 Delta Protect KL100
1454160254DPNLXS
M16 25.4 16.6 4.6 Delta Protect KL100
1454200307DPNLXS
M20 30.7 20.7 5.9 Delta Protect KL100
