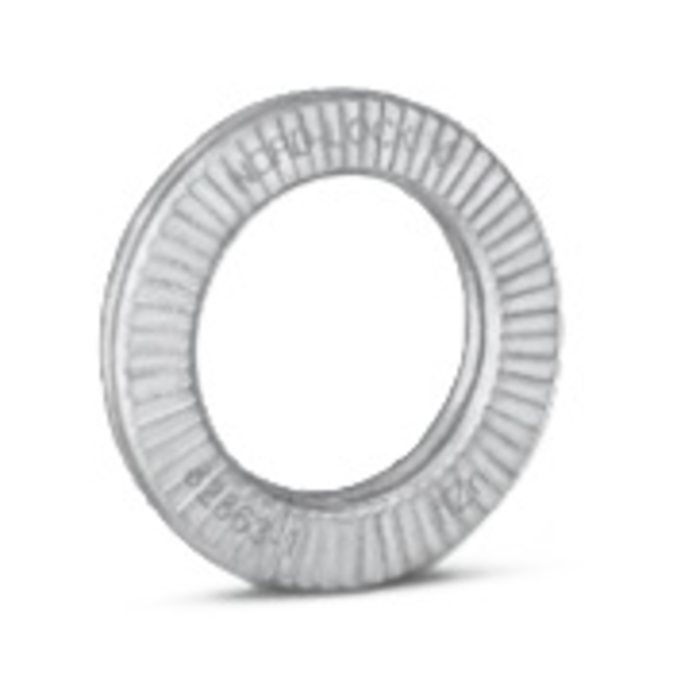

Nord Lock NLX Extended Self-Welding Washer

14
.
55

To ensure the unique mechanical locking function of Nord-Lock X-series washers, the hardness of the mating surfaces must be lower than the hardness of the Nord-Lock X-series washers.

Material Standard: Steel EN 1.7225

Hardening: Hardened

Coating: Base Coat: Delta Protekt® KL100 zinc flake coating Top Coat: VH 302 GZ

Corrosion Resistance: Minimum 1,000 hours in salt spray according to ISO 9227

Temperature Range: -40°C to 150°C

Send product inquiry

Product inquiry form

Recommended

Group
1455

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Size
Dimension D [mm]
Dimension d [mm]
T [mm]
Variety of coating
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes

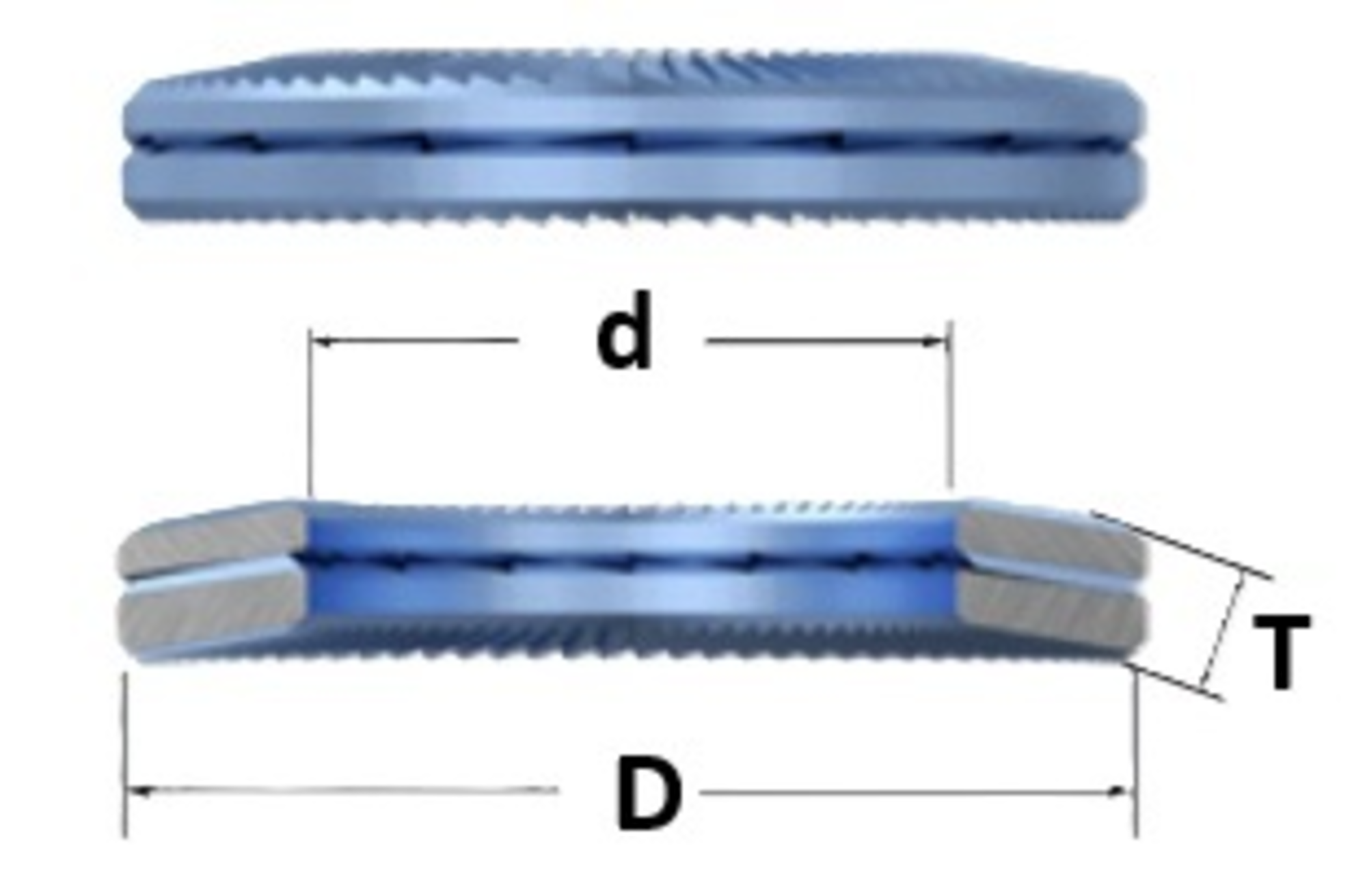

Size Dimension D [mm] Dimension d [mm] T [mm] Variety of coating Availability Show More
1455060135DPNLXSPS
M6 13.5 6.3 2.0 Delta Protect KL100
1455080166DPNLXSPS
M8 16.6 8.4 2.2 Delta Protect KL100
1455100210DPNLXSPS
M10 21.0 10.5 3.3 Delta Protect KL100
1455120254DPNLXSPS
M12 25.4 12.5 4.0 Delta Protect KL100
1455160307DPNLXSPS
M16 30.7 16.6 4.6 Delta Protect KL100
