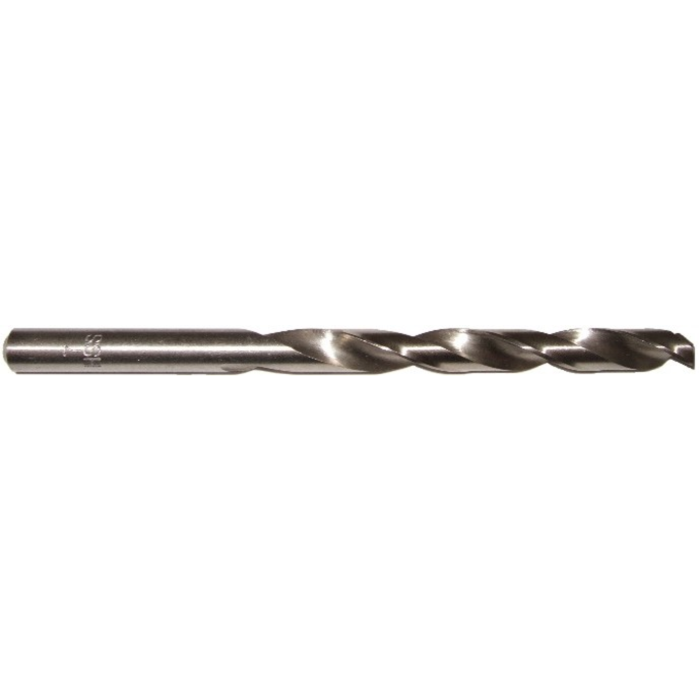

Polished metal drill bit Standard

67
.
68

Standard drill bits for metal made of high-speed steel (HSS) conforming to European DIN 338 length standards. Right-hand twist drill bits, polished white, ground, with a point angle of 118° and hole tolerance H12. Type N. Cylindrical shank.

Advantages:

  • Available in a wide range of sizes from 0.5 to 20.0 mm.
  • Highly economical, making it ideal for individual users.

Applications:
Suitable for alloy and non-alloy steels, cast steel, gray and ductile cast iron, sintered metal powders, alpaca, graphite, and non-ferrous metals.

View in store

Recommended

Group
6768

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Dimension d [mm]
Dimension L [mm]
Brand
Number of pieces in the package
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Brand Number of pieces in the package Unit of measure Availability Show More
6768005022POLFESS
0.5 22 Festa PCS
6768006024POLFESS
0.6 24 Festa PCS
6768007028POLFESS
0.7 28 Festa PCS
6768008030POLFESS
0.8 30 Festa PCS
6768009032POLFESS
0.9 32 Festa PCS
6768010034POLFESS
1.0 34 Festa PCS
6768011036POLFESS
1.1 36 Festa PCS
6768012038POLFESS
1.2 38 Festa PCS
6768013038POLFESS
1.3 38 Festa PCS
6768014040POLFESS
1.4 40 Festa PCS
6768015040POLFESS
1.5 40 Festa PCS
6768016043POLFESS
1.6 43 Festa PCS
6768017043POLFESS
1.7 43 Festa PCS
6768018046POLFESS
1.8 46 Festa PCS
6768019046POLFESS
1.9 46 Festa PCS
6768020049POLFESS
2.0 49 Festa PCS
6768021049POLFESS
2.1 49 Festa PCS
6768022053POLFESS
2.2 53 Festa PCS
6768023053POLFESS
2.3 53 Festa PCS
6768024057POLFESS
2.4 57 Festa PCS
6768025057POLFESS
2.5 57 Festa PCS
6768026057POLFESS
2.6 57 Festa PCS
6768027061POLFESS
2.7 61 Festa PCS
6768028061POLFESS
2.8 61 Festa PCS
6768029061POLFESS
2.9 61 Festa PCS
6768030061POLFESS
3.0 61 Festa PCS
6768031065POLFESS
3.1 65 Festa PCS
6768032065POLFESS
3.2 65 Festa PCS
6768033065POLFESS
3.3 65 Festa PCS
6768034070POLFESS
3.4 70 Festa PCS
6768035070POLFESS
3.5 70 Festa PCS
6768036070POLFESS
3.6 70 Festa PCS
6768037070POLFESS
3.7 70 Festa PCS
6768038075POLFESS
3.8 75 Festa PCS
6768039075POLFESS
3.9 75 Festa PCS
6768040075POLFESS
4.0 75 Festa PCS
6768041075POLFESS
4.1 75 Festa PCS
6768042075POLFESS
4.2 75 Festa PCS
6768043080POLFESS
4.3 80 Festa PCS
6768044080POLFESS
4.4 80 Festa PCS
6768045080POLFESS
4.5 80 Festa PCS
6768046080POLFESS
4.6 80 Festa PCS
6768047080POLFESS
4.7 80 Festa PCS
6768048086POLFESS
4.8 86 Festa PCS
6768049086POLFESS
4.9 86 Festa PCS
6768050086POLFESS
5.0 86 Festa PCS
6768051086POLFESS
5.1 86 Festa PCS
6768052086POLFESS
5.2 86 Festa PCS
6768053086POLFESS
5.3 86 Festa PCS
6768054093POLFESS
5.4 93 Festa PCS
6768055093POLFESS
5.5 93 Festa PCS
6768056093POLFESS
5.6 93 Festa PCS
6768057093POLFESS
5.7 93 Festa PCS
6768058093POLFESS
5.8 93 Festa PCS
6768059093POLFESS
5.9 93 Festa PCS
6768060093POLFESS
6.0 93 Festa PCS
6768061101POLFESS
6.1 101 Festa PCS
6768062101POLFESS
6.2 101 Festa PCS
6768063101POLFESS
6.3 101 Festa PCS
6768064101POLFESS
6.4 101 Festa PCS
6768065101POLFESS
6.5 101 Festa PCS
6768066101POLFESS
6.6 101 Festa PCS
6768067101POLFESS
6.7 101 Festa PCS
6768068109POLFESS
6.8 109 Festa PCS
6768069109POLFESS
6.9 109 Festa PCS
6768070109POLFESS
7.0 109 Festa PCS
6768071109POLFESS
7.1 109 Festa PCS
6768072109POLFESS
7.2 109 Festa PCS
6768073109POLFESS
7.3 109 Festa PCS
6768074109POLFESS
7.4 109 Festa PCS
6768075109POLFESS
7.5 109 Festa PCS
6768076117POLFESS
7.6 117 Festa PCS
6768077117POLFESS
7.7 117 Festa PCS
6768078117POLFESS
7.8 117 Festa PCS
6768079117POLFESS
7.9 117 Festa PCS
6768080117POLFESS
8.0 117 Festa PCS
6768081117POLFESS
8.1 117 Festa PCS
6768082117POLFESS
8.2 117 Festa PCS
6768083117POLFESS
8.3 117 Festa PCS
6768084117POLFESS
8.4 117 Festa PCS
6768085117POLFESS
8.5 117 Festa PCS
6768086125POLFESS
8.6 125 Festa PCS
6768087125POLFESS
8.7 125 Festa PCS
6768088125POLFESS
8.8 125 Festa PCS
6768089125POLFESS
8.9 125 Festa PCS
6768090125POLFESS
9.0 125 Festa PCS
6768091125POLFESS
9.1 125 Festa PCS
6768092125POLFESS
9.2 125 Festa PCS
6768093125POLFESS
9.3 125 Festa PCS
6768094125POLFESS
9.4 125 Festa PCS
6768095125POLFESS
9.5 125 Festa PCS
6768096133POLFESS
9.6 133 Festa PCS
6768097133POLFESS
9.7 133 Festa PCS
6768098133POLFESS
9.8 133 Festa PCS
6768099133POLFESS
9.9 133 Festa PCS
6768100133POLFESS
10.0 133 Festa PCS
6768102133POLFESS
10.2 133 Festa PCS
6768105133POLFESS
10.5 133 Festa PCS
6768110133POLMTXO
11.0 133 Matrix 5 PCS
6768110142POLFESS
11.0 142 Festa PCS
6768115142POLFESS
11.5 142 Festa PCS
6768120151POLFESS
12.0 151 Festa PCS
6768120151POLMTXO
12.0 151 Matrix 5 PCS
6768125151POLFESS
12.5 151 Festa PCS
6768130151POLFESS
13.0 160 Festa PCS
6768130151POLMTXO
13.0 151 Matrix 5 PCS
6768135160POLFESS
13.5 160 Festa PCS
6768140160POLFESS
14.0 160 Festa PCS
6768145169POLFESS
14.5 169 Festa PCS
6768150169POLFESS
15.0 169 Festa PCS
6768155178POLFESS
15.5 178 Festa PCS
6768160178POLFESS
16.0 178 Festa PCS
6768165178POLFESS
16.5 178 Festa PCS
6768170178POLFESS
17.0 178 Festa PCS
6768175191POLFESS
17.5 191 Festa PCS
6768180191POLFESS
18.0 191 Festa PCS
6768185198POLFESS
18.5 198 Festa PCS
6768190198POLFESS
19.0 198 Festa PCS
6768195205POLFESS
19.5 205 Festa PCS
6768200205POLFESS
20.0 205 Festa PCS
6768715109MTXO
1.0 34 Matrix 10 BOX
6768715159MTXO
1.5 40 Matrix 10 BOX
6768715209MTXO
2.0 57 Matrix 10 BOX
6768715259MTXO
2.5 57 Matrix 10 BOX
6768715309MTXO
3.0 61 Matrix 10 BOX
6768715359MTXO
3.5 70 Matrix 10 BOX
6768715409MTXO
4.0 75 Matrix 10 BOX
6768715459MTXO
4.5 80 Matrix 10 BOX
6768715509MTXO
5.0 86 Matrix 10 BOX
6768715559MTXO
5.5 93 Matrix 10 BOX
6768715609MTXO
6.0 93 Matrix 10 BOX
6768715659MTXO
6.5 101 Matrix 10 BOX
6768715709MTXO
7.0 109 Matrix 10 BOX
6768715759MTXO
7.5 109 Matrix 10 BOX
6768715809MTXO
8.0 117 Matrix 10 BOX
6768715859MTXO
8.5 117 Matrix 10 BOX
6768715909MTXO
9.0 125 Matrix 10 BOX
6768715999MTXO
10.0 133 Matrix 10 BOX
