QMC 409 Mini Disc

66
.
F1

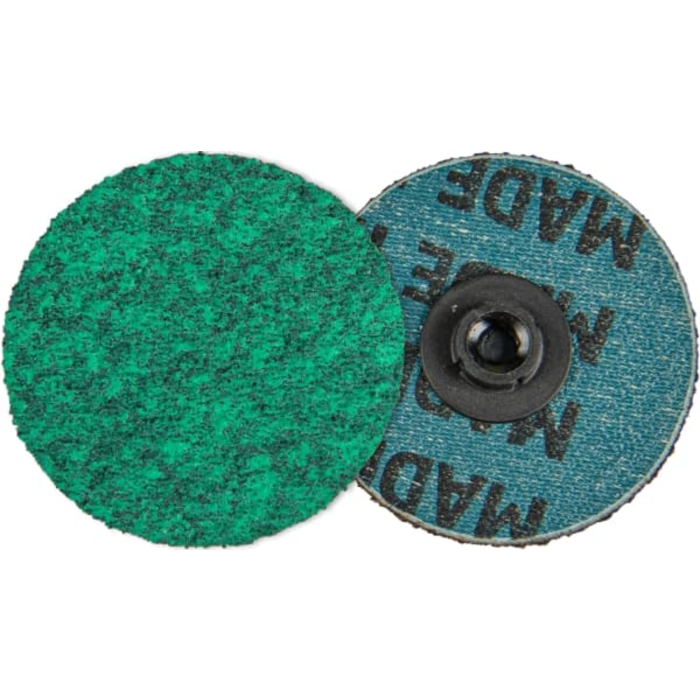

QMC 409 – universal Quick Change Disc mini discs for grinding stainless steel and other metals
Quick Change Disc mini discs are small abrasive discs for use in high-speed grinders. They have metal catches that ensure high work safety even at high speeds of up to 20,000 or 30,000 rpm. Another advantage of Quick Change Disc mini discs with metal catches is the possibility of quick replacement with one hand movement. Thanks to this, abrasive discs can be quickly replaced practically without interrupting work. This shortens the changeover times and increases work efficiency. The basis of the construction of these mini discs is a plastic cloth. On it is a high-quality grain made of zirconium electrocorundum in the form of a full fill. The bond is made of synthetic resin. On the back side there is a metal catch for mounting on the support disc. Thanks to this construction of mini discs and the additional Multi layer, it is possible to reduce the grinding temperature. This is particularly beneficial when grinding stainless steel and at the same time ensures a high grinding performance. The QMC 409 mini discs also have practical advantages when grinding aluminium, because with the multi-coating there is little clogging when grinding aluminium. The Quick Change Disc mini discs with metal claw attachment are the right choice for grinding

stainless steel,
other metals,
non-ferrous metals,
high-alloy steels and
fillers, paints and varnishes.
Wide range of applications with the matching backing disc
Backing discs in different hardnesses are available for the mini discs. Hard backing discs are the right choice for achieving a high stock removal rate. For fine grinding or for processing profiled surfaces, the soft and flexible backing disc is the ideal solution. The Quick Change Disc mini discs with metal claw attachment are very easy to attach. Simply place the mini disc on the backing disc and screw the mini disc on using the internal threaded pin on the back. In addition to their ease of use, the great advantage of quick-release mini discs is their very quiet operation. This allows you to achieve even sanding results and work without fatigue.

Send product inquiry

Product inquiry form

Recommended

Group
66F1

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Granulation
Dimension [mm]
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Granulation Dimension [mm] Availability Show More
66F1060050UVS
60 50
66F1080050UVS
80 50
66F1120050UVS
120 50
