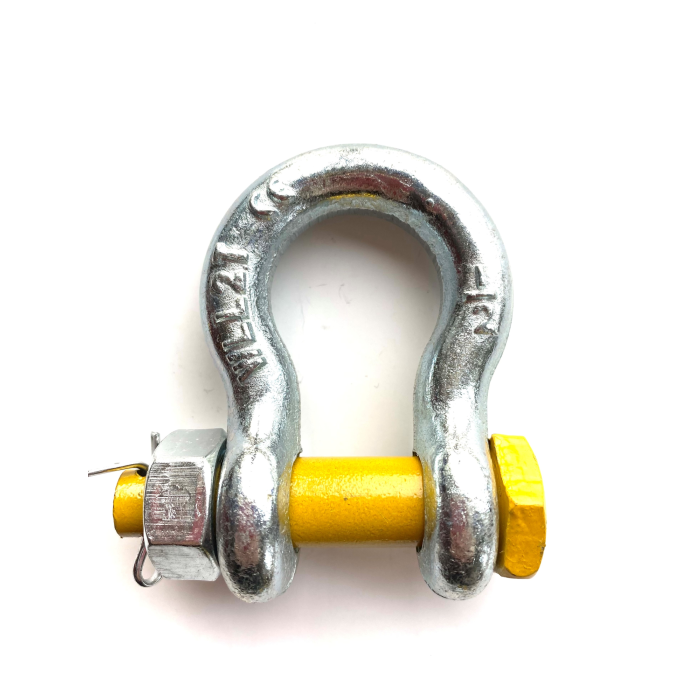

Reinforced round shackle type c

63
.
53

The reinforced round shackle Type C is a robust fastening element designed for maximum strength and reliability in demanding conditions. Made from high-quality steel, it features excellent resistance to loads and corrosion. Its reinforced construction and specially designed shape ensure stability in connections, making it an ideal solution for professional applications.

Applications

Reinforced round shackles Type C are widely used in marine, construction, transportation, and extreme sports industries. They are employed for connecting ropes, chains, and other structural elements, as well as in lifting and towing systems. With their high strength, these shackles excel in applications requiring significant force and reliability.

Benefits

  • High Strength: The reinforced design offers high resistance to loads and dynamic forces, minimizing the risk of damage.
  • Corrosion Resistance: Made from premium-grade steel, it ensures long-lasting durability and resistance to adverse weather conditions.
  • Safety: Stable connections eliminate the risk of loosening and failures, which is crucial in applications requiring high strength.
  • Versatility: Can be used in various applications, making it an essential component in many industries, both professional and recreational.
Send product inquiry

Product inquiry form

Recommended

Group
6353

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Type
Dimension D [mm]
Dimension L [mm]
Dimension A [mm]
Dimension B [mm]
Acceptable load [kg]
Dimension C [mm]
Dimension H [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Type Dimension D [mm] Dimension L [mm] Dimension A [mm] Dimension B [mm] Acceptable load [kg] Dimension C [mm] Dimension H [mm] Unit of measure Availability Show More
6353160T0200O06ZS
1/2" 16 21 12 31 2 83 47 PCS
6353190T0325O06ZS
5/8" 19 28 16 38 3,25 106 61 PCS
6353220T0475O06ZS
3/4" 22 33 19 47 4,75 124 71 PCS
6353250T0650O06ZS
7/8" 25 36 22 53 6,5 141 83 PCS
6353280T0850O06ZS
1" 28 42 25 59 8,5 165 94 PCS
6353320T0950O06ZS
1 1/8" 32 44 29 64 9,5 185 105 PCS
6353350T1200O06ZS
1 1/4" 35 48 33 76 12 205 117 PCS
6353410T1700O06ZS
1 1/2" 41 63 39 89 17 255 145 PCS
