Round spacer INOX

I14
.
21

The round spacer is an indispensable component in the mounting system, designed to maintain precise distances between structural elements. Made from high-quality stainless steel (inox), this spacer combines durability, corrosion resistance, and precise geometric parameters.

Applications:
The round spacer is used wherever there is a need to maintain uniform distances between structural elements. It is ideal for metal and wooden constructions, as well as in any application where precision and durability are required.

Benefits:

  • Durability: Made from stainless steel, the spacer is resistant to corrosion, ensuring long-lasting performance.
  • Precise Dimensions: Carefully controlled dimensions allow for consistent spacing between structural elements.
  • Versatility: Suitable for various types of constructions, making it a universal solution.
  • Weather Resistance: Stainless steel ensures that the spacer performs well in outdoor conditions.
  • Ease of Installation: Standard dimensions and ergonomic design facilitate installation, speeding up the assembly process.
Send product inquiry

Product inquiry form

Recommended

Group
I1421

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

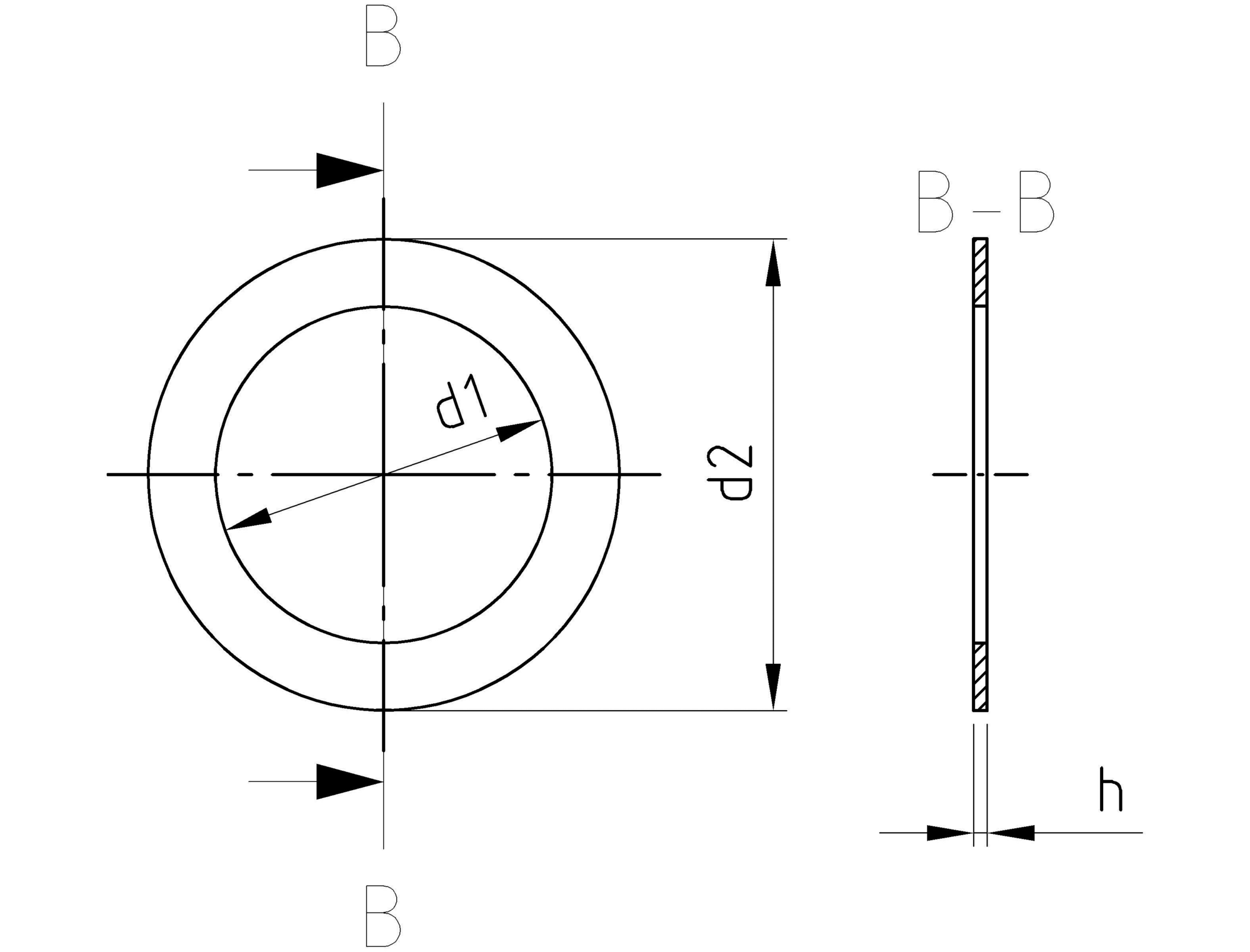

Outer diameter d2 [mm]
Inner diameter d1 [mm]
Height h [mm]
Standard
Material
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Material index
More attributes
Outer diameter d2 [mm] Inner diameter d1 [mm] Height h [mm] Standard Material Unit of measure Availability Show More
I142104008002A288T
4 8 0.2 DIN 988 A2 THS
I142104008005A288T
4 8 0.5 DIN 988 A2 THS
I142105010001A288T
5 10 0.1 DIN 988 A2 THS
I142105010002A288T
5 10 0.2 DIN 988 A2 THS
I142105010003A288T
5 10 0.3 DIN 988 A2 THS
I142105010005A288T
5 10 0.5 DIN 988 A2 THS
I142106012001A288T
6 12 0.1 DIN 988 A2 THS
I142106012002A288T
6 12 0.2 DIN 988 A2 THS
I142106012003A288T
6 12 0.3 DIN 988 A2 THS
I142106012005A288T
6 12 0.5 DIN 988 A2 THS
I142106012010A288T
6 12 1.0 DIN 988 A2 THS
I142108014001A288T
8 14 0.1 DIN 988 A2 THS
I142108014002A288T
8 14 0.2 DIN 988 A2 THS
I142108014005A288T
8 14 0.5 DIN 988 A2 THS
I142108014010A288T
8 14 1.0 DIN 988 A2 THS
I142110016001A288T
10 16 0.1 DIN 988 A2 THS
I142110016002A288T
10 16 0.2 DIN 988 A2 THS
I142110016005A288T
10 16 0.5 DIN 988 A2 THS
I142110016010A288T
10 16 1.0 DIN 988 A2 THS
I142111017002A288T
11 17 0.2 DIN 988 A2 THS
I142111017010A288T
11 17 1.0 DIN 988 A2 THS
I142112018001A288T
12 18 0.1 DIN 988 A2 THS
I142112018002A288T
12 18 0.2 DIN 988 A2 THS
I142112018003A288T
12 18 0.3 DIN 988 A2 THS
I142112018005A288T
12 18 0.5 DIN 988 A2 THS
I142112018010A288T
12 18 1.0 DIN 988 A2 THS
I142113019002A288T
13 19 0.2 DIN 988 A2 THS
I142113019010A288T
13 19 1.0 DIN 988 A2 THS
I142114020002A288T
14 20 0.2 DIN 988 A2 THS
I142114020003A288T
14 20 0.3 DIN 988 A2 THS
I142114020005A288T
14 20 0.5 DIN 988 A2 THS
I142114020010A288T
14 20 1.0 DIN 988 A2 THS
I142115021002A288T
15 21 0.2 DIN 988 A2 THS
I142115021005A288T
15 21 0.5 DIN 988 A2 THS
I142115021010A288T
15 21 1.0 DIN 988 A2 THS
I142116022001A288T
16 22 0.1 DIN 988 A2 THS
I142116022002A288T
16 22 0.2 DIN 988 A2 THS
I142116022003A288T
16 22 0.3 DIN 988 A2 THS
I142116022005A288T
16 22 0.5 DIN 988 A2 THS
I142116022010A288T
16 22 1.0 DIN 988 A2 THS
I142117024003A288T
17 24 0.3 DIN 988 A2 THS
I142117024005A288T
17 24 0.5 DIN 988 A2 THS
I142117024010A288T
17 24 1.0 DIN 988 A2 THS
I142120028001A288T
20 28 0.1 DIN 988 A2 THS
I142120028002A288T
20 28 0.2 DIN 988 A2 THS
I142120028003A288T
20 28 0.3 DIN 988 A2 THS
I142120028005A288T
20 28 0.5 DIN 988 A2 THS
I142120028010A288T
20 28 1.0 DIN 988 A2 THS
I142122030001A288T
22 30 0.1 DIN 988 A2 THS
I142122030005A288T
22 30 0.5 DIN 988 A2 THS
I142125035001A288T
25 35 0.1 DIN 988 A2 THS
I142125035002A288T
25 35 0.2 DIN 988 A2 THS
I142125035005A288T
25 35 0.5 DIN 988 A2 THS
I142125035010A288T
25 35 1.0 DIN 988 A2 THS
I142125036010A288T
25 36 1.0 DIN 988 A2 THS
I142128040001A288T
28 40 0.1 DIN 988 A2 THS
I142128040005A288T
28 40 0.5 DIN 988 A2 THS
I142128040010A288T
28 40 1.0 DIN 988 A2 THS
I142130042001A288T
30 42 0.1 DIN 988 A2 THS
I142130042005A288T
30 42 0.5 DIN 988 A2 THS
I142130042010A288T
30 42 1.0 DIN 988 A2 THS
I142135045005A288T
35 45 0.5 DIN 988 A2 THS
I142135045010A288T
35 45 1.0 DIN 988 A2 THS
I142140050001A288T
40 50 0.1 DIN 988 A2 THS
I142140050005A288T
40 50 0.5 DIN 988 A2 THS
I142140050010A288T
40 50 1.0 DIN 988 A2 THS
