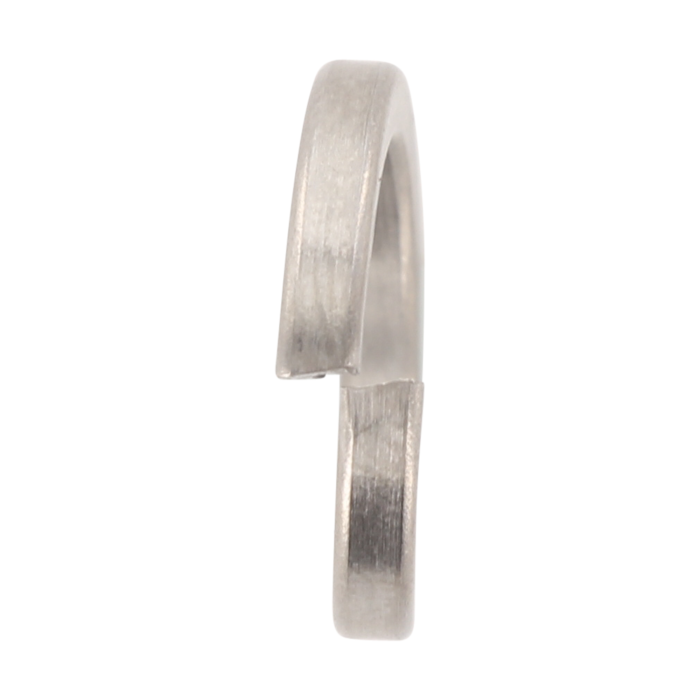

Round spring washer for wheels

Product:

Inquiry:

Firstname and lastname:

Company:

Country:

Phone:

E‑mail:

Attachment:

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

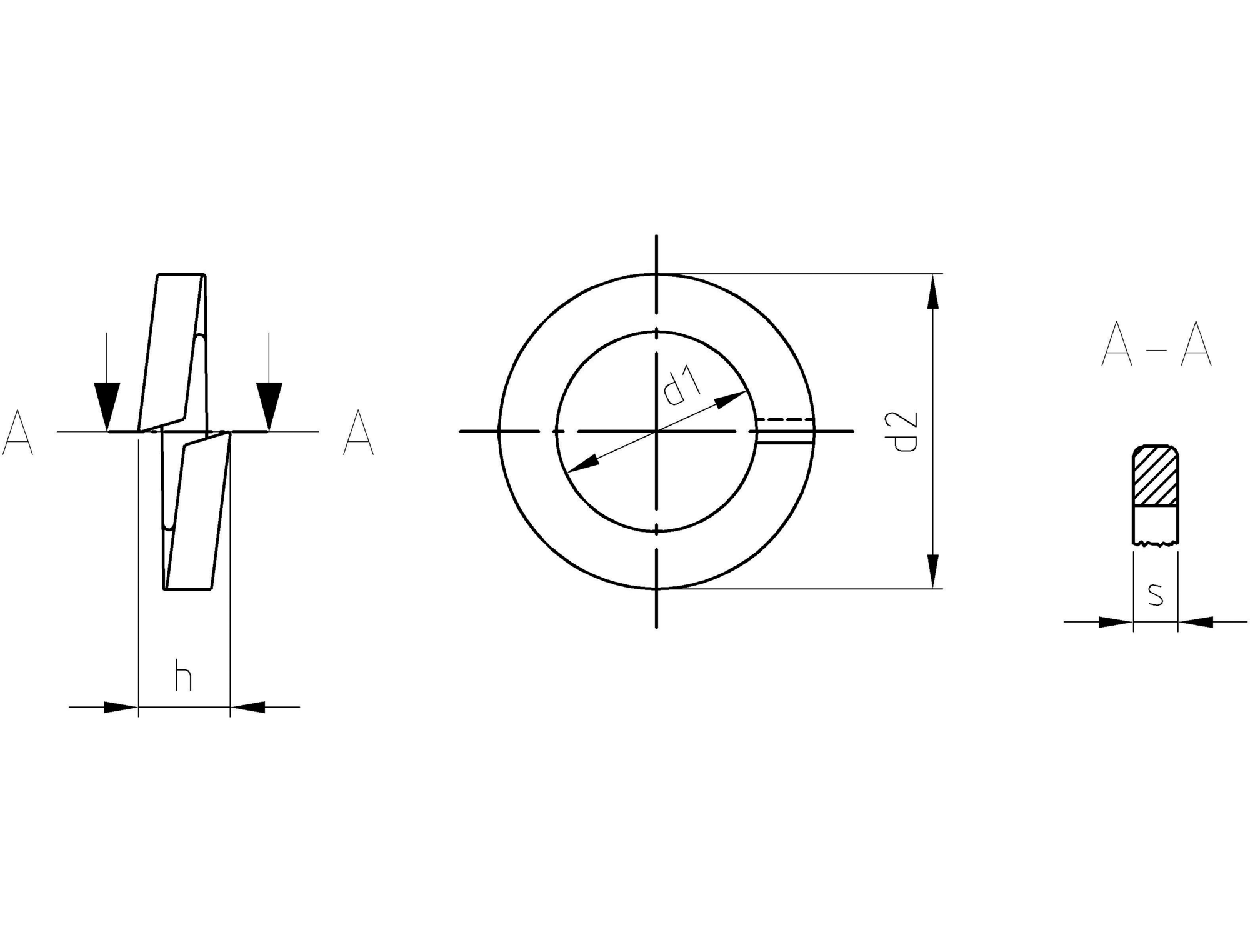

Size

Dimension D [mm]

Dimension d [mm]

Dimension h [mm]

Variety of coating

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Size	Dimension D [mm]	Dimension d [mm]	Dimension h [mm]	Variety of coating	Standard	Unit of measure	Availability

1438120230R74361CT	M12	23	12.5	6	geomet	DIN 74361C	THS	Product on request
1438140260R74361CT	M14	26	14.5	6	geomet	DIN 74361C	THS	Product on request
1438160270R74361CT	M16	27	16.5	7	geomet	DIN 74361C	THS	Product on request
1438180290R74361CT	M18	29	18.5	7	geomet	DIN 74361C	THS	Product on request
1438200340R74361CT	M20	34	20.5	8	geomet	DIN 74361C	THS	Product on request
1438220340R74361CT	M22	34	22.5	8	geomet	DIN 74361C	THS	Product on request
