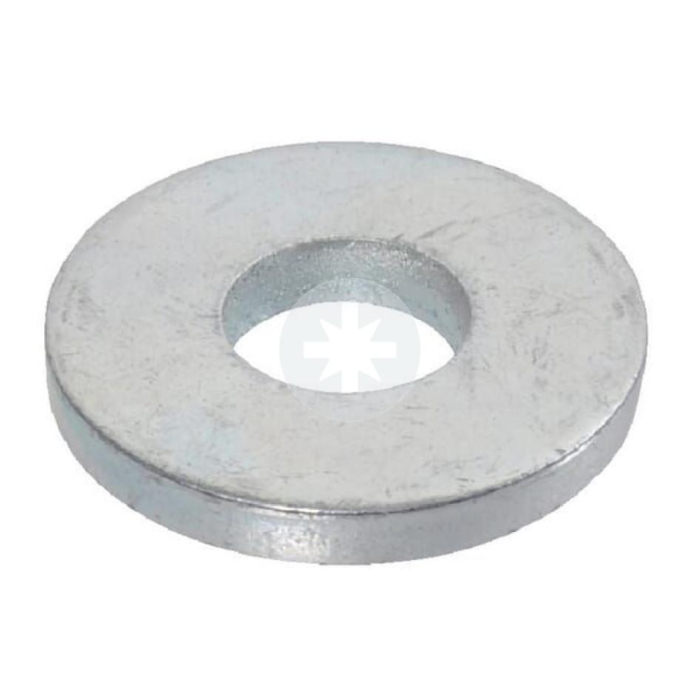

Round washer for steel structures

14
.
27

The round washer for steel structures is a mounting component primarily used in construction and industry, where it is essential for fastening elements to steel frameworks. Its main function is to distribute loads evenly and provide stability in mechanical connections, contributing to the overall strength and durability of the entire structure.

Applications

Round washers for steel structures are mainly used in:

  • Construction: In the assembly of structural elements, frames, beams, columns, etc.

  • Industry: In the installation of steel structures in manufacturing halls, warehouses, bridge constructions, etc.

Benefits

  • Even Load Distribution: The washer distributes loads evenly, preventing deformation and damage to structural elements.

  • Connection Stability: It ensures a stable and reliable connection of elements to steel structures, eliminating play and undesirable movements.

  • Weather Resistance: Made from durable material, the washer is resistant to corrosion, ensuring long-lasting durability of the connection even in challenging environmental conditions.

Send product inquiry

Product inquiry form

Recommended

Group
1427

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Hole diameter M [mm]
Outer diameter D [mm]
Inner diameter d [mm]
Thickness h [mm]
Variety of coating
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes

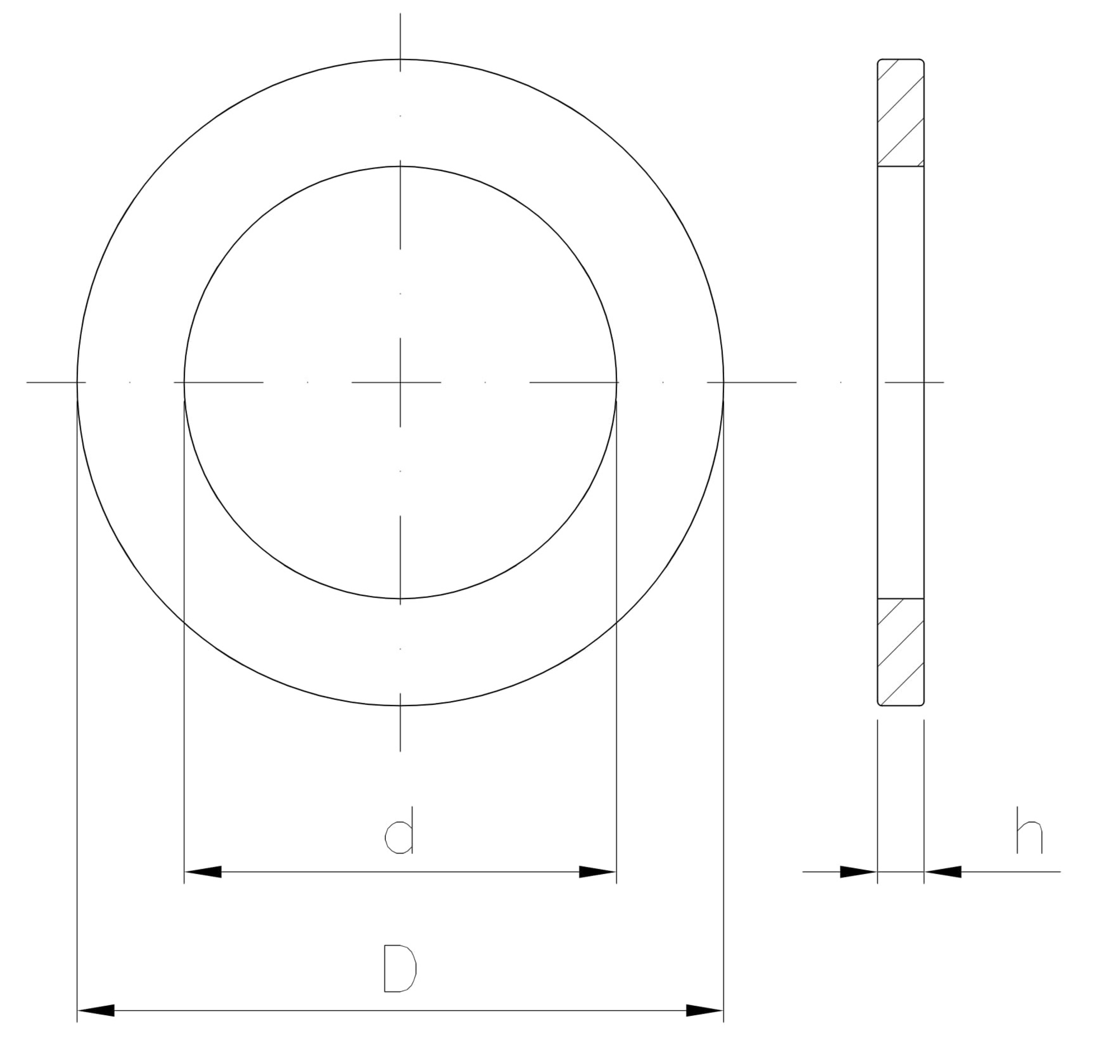

Hole diameter M [mm] Outer diameter D [mm] Inner diameter d [mm] Thickness h [mm] Variety of coating Standard Unit of measure Availability Show More
1427100GD7989T
M10 20 11 8 hot-dip galvanized DIN 7989 THS
1427120GD7989T
M12 24 14 8 hot-dip galvanized DIN 7989 THS
1427160GD7989T
M16 30 18 8 hot-dip galvanized DIN 7989 THS
1427200GD7989T
M20 37 22 8 hot-dip galvanized DIN 7989 THS
1427240GD7989T
M24 44 26 8 hot-dip galvanized DIN 7989 THS
1427270GD7989T
M27 50 30 8 hot-dip galvanized DIN 7989 THS
1427300GD7989T
M30 56 33 8 hot-dip galvanized DIN 7989 THS
1427360GD7989T
M36 66 39 8 hot-dip galvanized DIN 7989 THS
