Round washer for wooden constructions INOX

I14
.
02

The round enlarged washer inox is a structural component with an increased bearing surface, made from durable stainless steel (inox). The widened shape of this washer ensures additional stability and even distribution of load during fastening.

Applications: The round enlarged washer inox is widely used in construction, woodworking, metalworking industries, and wherever strong and stable fastening is required.

Benefits:

  • Corrosion Resistance: Stainless steel inox guarantees long-lasting resistance to corrosion, making the washer ideal for outdoor use.
  • Extra Stability: The widened shape provides extra stability during fastening.
  • Even Force Distribution: The larger bearing surface helps evenly distribute forces on the substrate.
  • Versatility: Suitable for a range of applications in both wooden and steel structures.
  • Easy Installation: Its smooth surface facilitates installation and minimizes the risk of damage to other structural components.
View in store

Recommended

Group
I1402

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

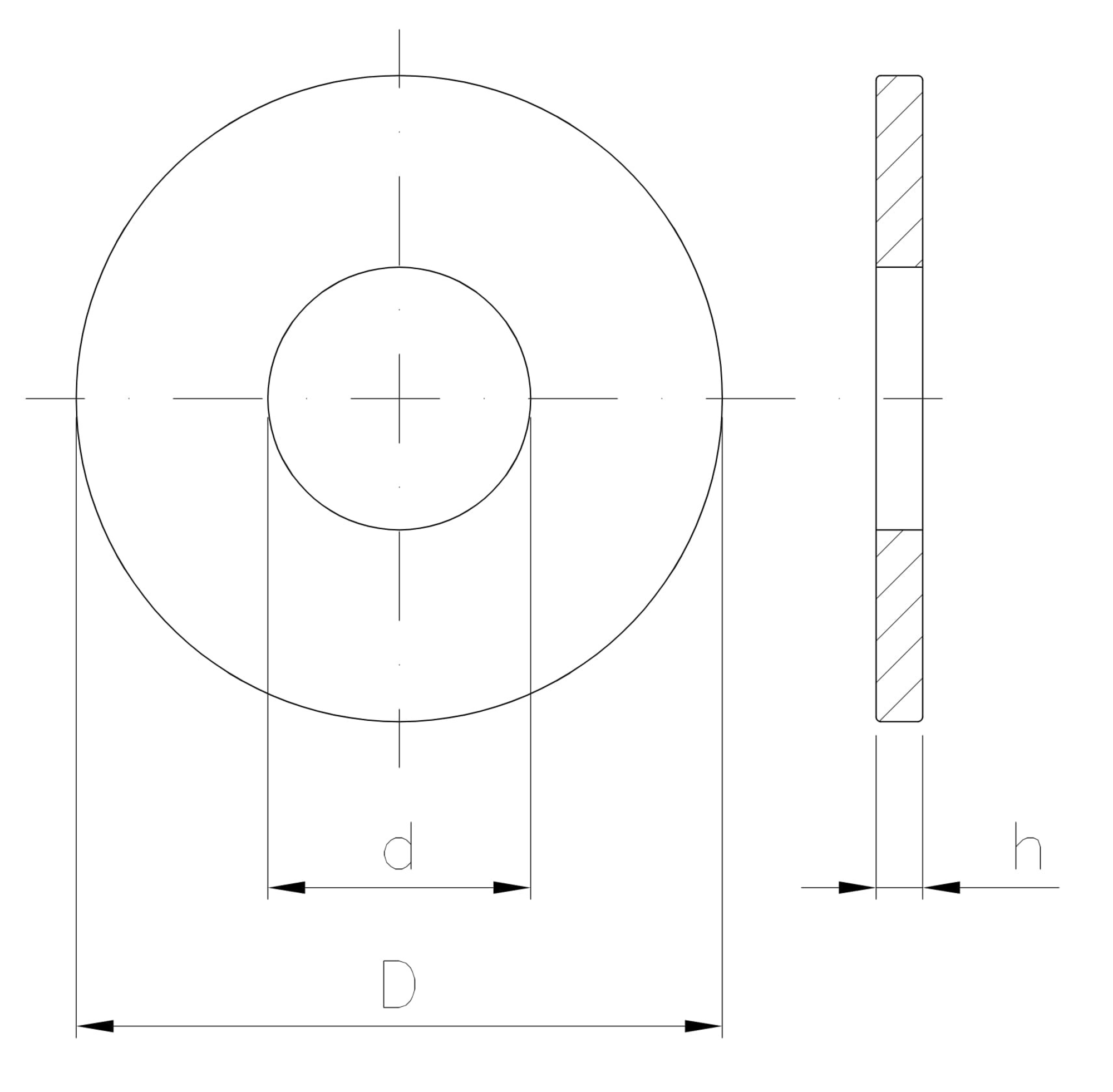

Hole diameter M [mm]
Outer diameter D [mm]
Inner diameter d [mm]
Height h [mm]
Standard
Material
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Hole diameter M [mm] Outer diameter D [mm] Inner diameter d [mm] Height h [mm] Standard Material Unit of measure Availability Show More
I1402050A2D440T
M5 5.5 18.0 2.0 DIN440 A2 THS
I1402050A4D440T
M5 5.5 18.0 2.0 DIN 440 A4 THS
I1402060A2D440T
M6 6.6 22.0 2.0 DIN440 A2 THS
I1402060A4D440T
M6 6.6 22.0 2.0 DIN 440 A4 THS
I1402080A2D440T
M8 9.0 28.0 3.0 DIN 440 A2 THS
I1402080A4D440T
M8 9.0 28.0 3.0 DIN 440 A4 THS
I1402100A2D440T
M10 11.0 34.0 3.0 DIN 440 A2 THS
I1402100A4D440T
M10 11.0 34.0 3.0 DIN440 A4 THS
I1402120A2D440T
M12 13.5 44.0 4.0 DIN 440 A2 THS
I1402120A4D440T
M12 13.5 44.0 4.0 DIN440 A4 THS
I1402140A2D440T
M14 15.5 50.0 4.0 DIN440 A2 THS
I1402140A4D440T
M14 15.5 50.0 4.0 DIN440 A4 THS
I1402160A2D440T
M16 17.5 56.0 5.0 DIN440 A2 THS
I1402160A4D440T
M16 17.5 56.0 5.0 DIN440 A4 THS
I1402200A2D440T
M20 22.0 72.0 6.0 DIN440 A2 THS
I1402200A4D440T
M20 22.0 72.0 6.0 DIN440 A4 THS
I1402220A2D440T
M22 24.0 80.0 6.0 DIN440 A2 THS
I1402220A4D440T
M22 24.0 80.0 6.0 DIN440 A4 THS
I1402240A2D440T
M24 26.0 85.0 6.0 DIN440 A2 THS
I1402240A4D440T
M24 26.0 85.0 6.0 DIN440 A4 THS
