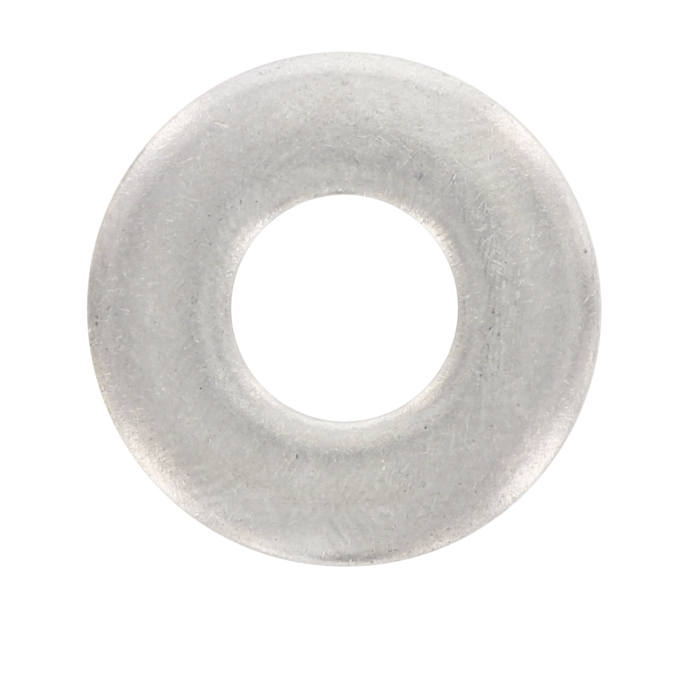

Round washer thickened

Name: Round washer thickened
Price: 1 PLN
Availability: InStock

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Hole diameter M [mm]

Outer diameter D [mm]

Inner diameter d [mm]

Dimension h [mm]

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Hole diameter M [mm]	Outer diameter D [mm]	Inner diameter d [mm]	Dimension h [mm]	Standard	Unit of measure	Availability

1437030090BD7349T	M3	9	3.2	1.0	DIN 7349	THS	Product on request
1437040120BD7349T	M4	12	4.3	1.6	DIN 7349	THS	Product on request
1437050150BD7349T	M5	15	5.3	2.0	DIN 7349	THS	Product on request
1437060170BD7349T	M6	17	6.4	3.0	DIN 7349	THS	Product on request
1437080210BD7349T	M8	21	8.4	4.0	DIN 7349	THS	The product is available
1437100250BD7349T	M10	25	10.5	4.0	DIN 7349	THS	Product on request
1437120300BD7349T	M12	30	13	6.0	DIN 7349	THS	Product on request
1437140360BD7349T	M14	36	15	6.0	DIN 7349	THS	Product on request
1437160400BD7349T	M16	40	17	6.0	DIN 7349	THS	Product on request
1437200440BD7349T	M20	44	21	8.0	DIN 7349	THS	Product on request
1437220500BD7349T	M22	50	23	8.0	DIN 7349	THS	Product on request
1437240500BD7349T	M24	50	25	10.0	DIN 7349	THS	Product on request
1437270600BD7349T	M27	60	28	10.0	DIN 7349	THS	Product on request
1437300680BD7349T	M30	68	31	10.0	DIN 7349	THS	Product on request
