Sandwich panel screw with EPDM washer for wood and concentrate

WSPWD

View in store

DOWNLOADABLE DOCUMENTS

ETA

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Dimension L [mm]

Dimension D [mm]

Dimension s [mm]

Head

Dimension d1 [mm]

Dimension d2 [mm]

Variety of coating

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

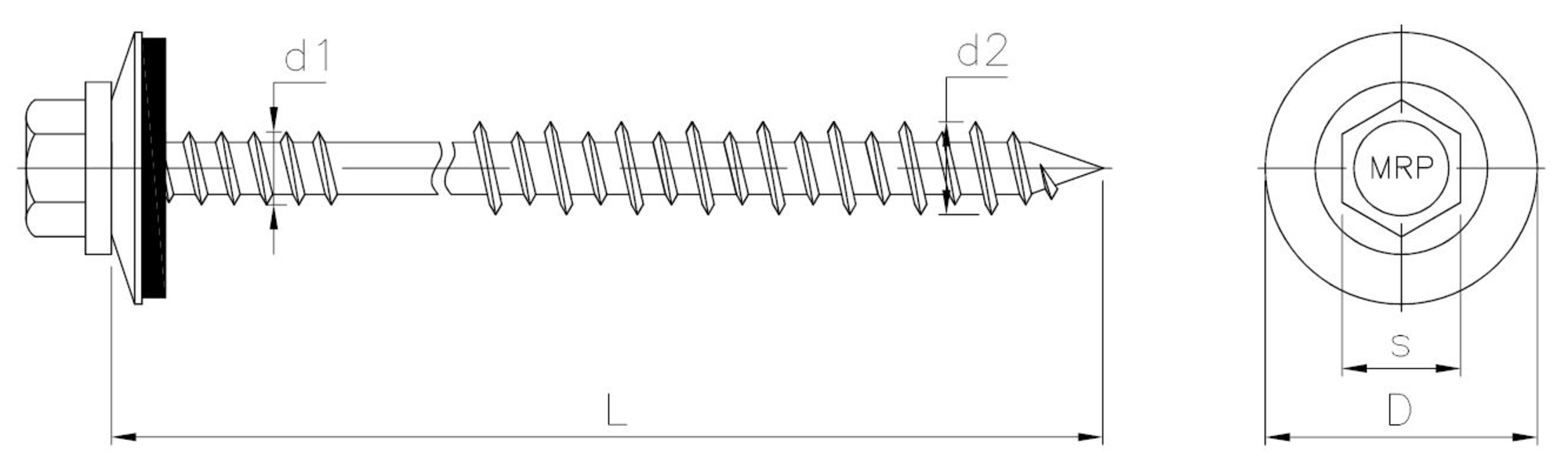

Material index More attributes	Dimension L [mm]	Dimension D [mm]	Dimension s [mm]	Head	Dimension d1 [mm]	Dimension d2 [mm]	Variety of coating	Unit of measure	Availability

5204063100BDBT	100	19	8	6P	6.3	7	white zinc plating	THS	The product is available
5204063120BDBT	120	19	8	6P	6.3	7	white zinc plating	THS	The product is available
5204063140BDBT	140	19	8	6P	6.3	7	white zinc plating	THS	The product is available
5204063160BDBT	160	19	8	6P	6.3	7	white zinc plating	THS	The product is available
