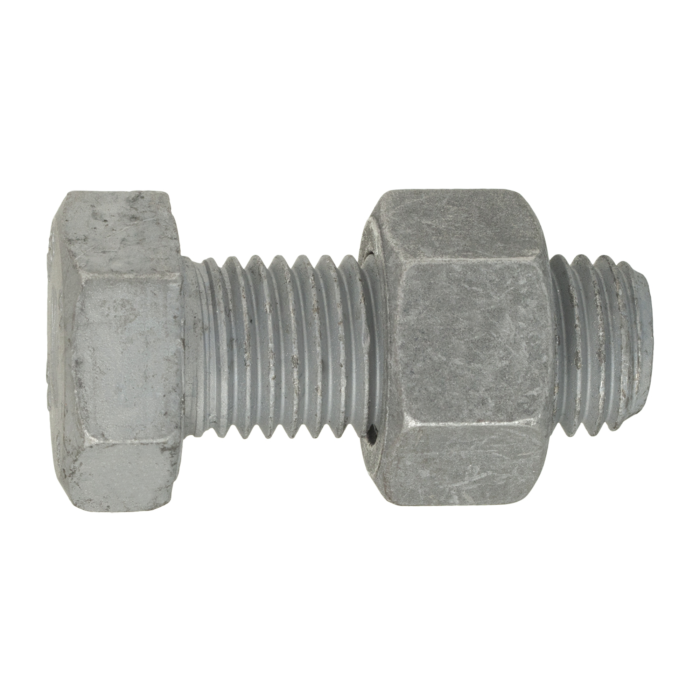

SB non-preloaded structural bolt set, fully threaded

The most commonly used coatings are hot-dip galvanizing (HDG) or electro-galvanizing, produced in mechanical property class 8.8.

SB screw sets for non-preloaded connections are used for assembling steel structures (as typical friction lap joints of category A according to Eurocode EN 1993-1-8:2005 and butt joints of category D according to Eurocode EN 1993-1-8:2005). SB sets should be used for all structural connections subjected to shear or tensile loads where preloading is not required. The rules for designing and executing bolted joints using SB sets are described in Eurocode 3 and EN 1090-2.

Advantages:

Hot-dip galvanized protective coating, allowing use in C4 environments according to PN-EN 12944-1:6:2018
Individual traceability based on marking

The requirements for SB screw sets are defined by the harmonized standard EN 15048-1:2:2016.

View in store

DOWNLOADABLE DOCUMENTS

Declarations of conformity

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

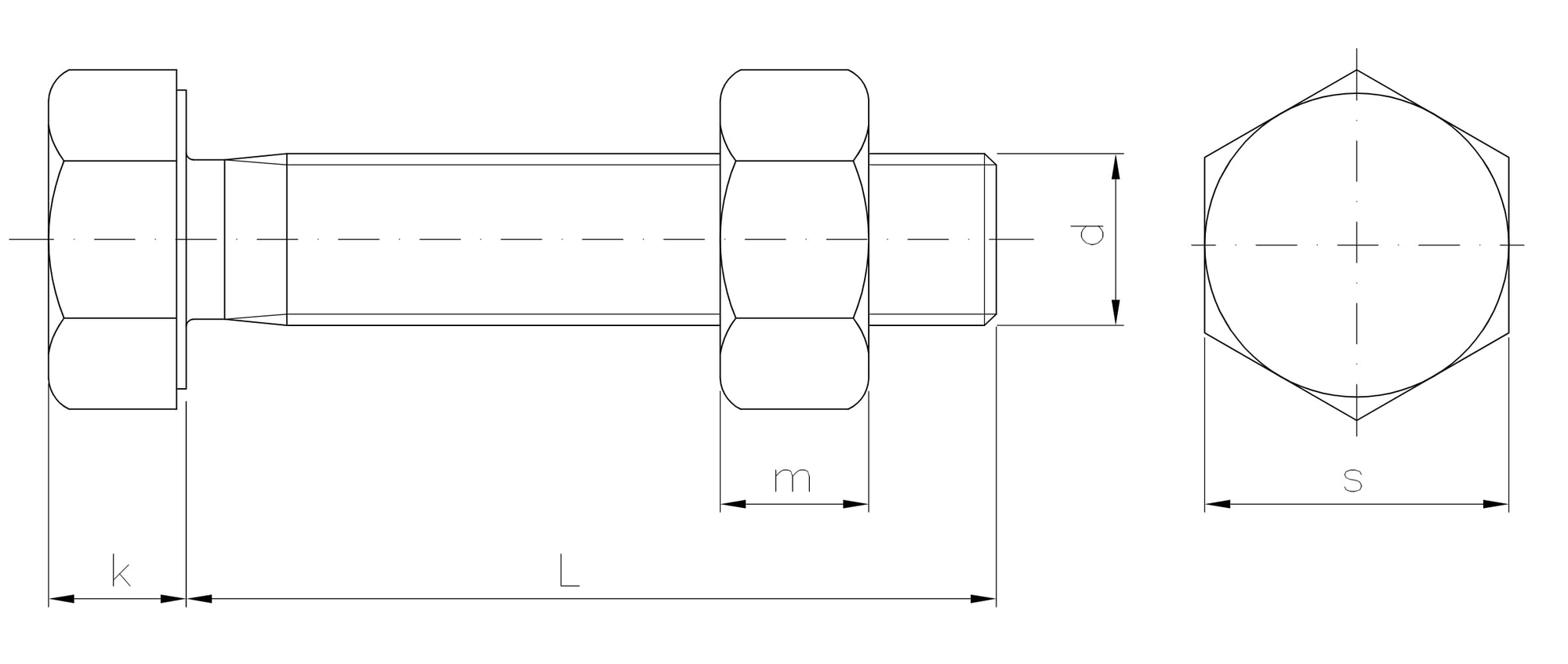

Dimension d [mm]

Dimension L [mm]

Class of mechanical properties

Variety of coating

Dimension s [mm]

Dimension k [mm]

Dimension m [mm]

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension L [mm]	Class of mechanical properties	Variety of coating	Dimension s [mm]	Dimension k [mm]	Dimension m [mm]	Standard	Unit of measure	Availability

1134120030G88SBP	M12	30	8.8	hot-dip galvanized	19	8	10.0	ISO 4017	SET	The product is available
1134120035G88SBP	M12	35	8.8	hot-dip galvanized	19	8	10.0	ISO 4017	SET	The product is available
1134120040G88SBP	M12	40	8.8	hot-dip galvanized	19	8	10.0	ISO 4017	SET	The product is available
1134120045G88SBP	M12	45	8.8	hot-dip galvanized	19	8	10.0	ISO 4017	SET	The product is available
1134120050G88SBP	M12	50	8.8	hot-dip galvanized	19	8	10.0	ISO 4017	SET	The product is available
1134120055G88SBP	M12	55	8.8	hot-dip galvanized	19	8	10.0	ISO 4017	SET	The product is available
1134120060G88SBP	M12	60	8.8	hot-dip galvanized	19	8	10.0	ISO 4017	SET	The product is available
1134120065G88SBP	M12	65	8.8	hot-dip galvanized	19	8	10.0	ISO 4017	SET	The product is available
1134160035G88SBP	M16	35	8.8	hot-dip galvanized	24	10	13.0	ISO 4017	SET	The product is available
1134160040G88SBP	M16	40	8.8	hot-dip galvanized	24	10	13.0	ISO 4017	SET	The product is available
1134160045G88SBP	M16	45	8.8	hot-dip galvanized	24	10	13.0	ISO 4017	SET	The product is available
1134160050G88SBP	M16	50	8.8	hot-dip galvanized	24	10	13.0	ISO 4017	SET	The product is available
1134160055G88SBP	M16	55	8.8	hot-dip galvanized	24	10	13.0	ISO 4017	SET	The product is available
1134160060G88SBP	M16	60	8.8	hot-dip galvanized	24	10	13.0	ISO 4017	SET	The product is available
1134160065G88SBP	M16	65	8.8	hot-dip galvanized	24	10	13.0	ISO 4017	SET	The product is available
1134160070G88SBP	M16	70	8.8	hot-dip galvanized	24	10	13.0	ISO 4017	SET	The product is available
1134200045G88SBP	M20	45	8.8	hot-dip galvanized	30	70	16,0	ISO 4017	SET	The product is available
1134200050G88SBP	M20	50	8.8	hot-dip galvanized	30	13	16.0	ISO 4017	SET	The product is available
1134200055G88SBP	M20	55	8.8	hot-dip galvanized	30	13	16.0	ISO 4017	SET	The product is available
1134200060G88SBP	M20	60	8.8	hot-dip galvanized	30	13	16.0	ISO 4017	SET	The product is available
1134200065G88SBP	M20	65	8.8	hot-dip galvanized	30	13	16.0	ISO 4017	SET	The product is available
1134200070G88SBP	M20	70	8.8	hot-dip galvanized	30	13	16.0	ISO 4017	SET	The product is available
1134200130G88SBP			8.8	hot-dip galvanized				ISO 4017	SET	The product is available
1134240055G88SBP	M24	55	8.8	hot-dip galvanized	36	15	19.0	ISO 4017	SET	The product is available
1134240060G88SBP	M24	60	8.8	hot-dip galvanized	36	15	19.0	ISO 4017	SET	The product is available
1134240070G88SBP	M24	70	8.8	hot-dip galvanized	36	15	19.0	ISO 4017	SET	The product is available
1134270110G88SBP			8.8	hot-dip galvanized				ISO 4017	SET	The product is available
