INOX

Schackle, OMEGA type INOX

I63

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Dimension d [mm]

Dimension D [mm]

Dimension L [mm]

Dimension B [mm]

Material

Dimension A [mm]

Dimension C [mm]

Dimension H [mm]

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

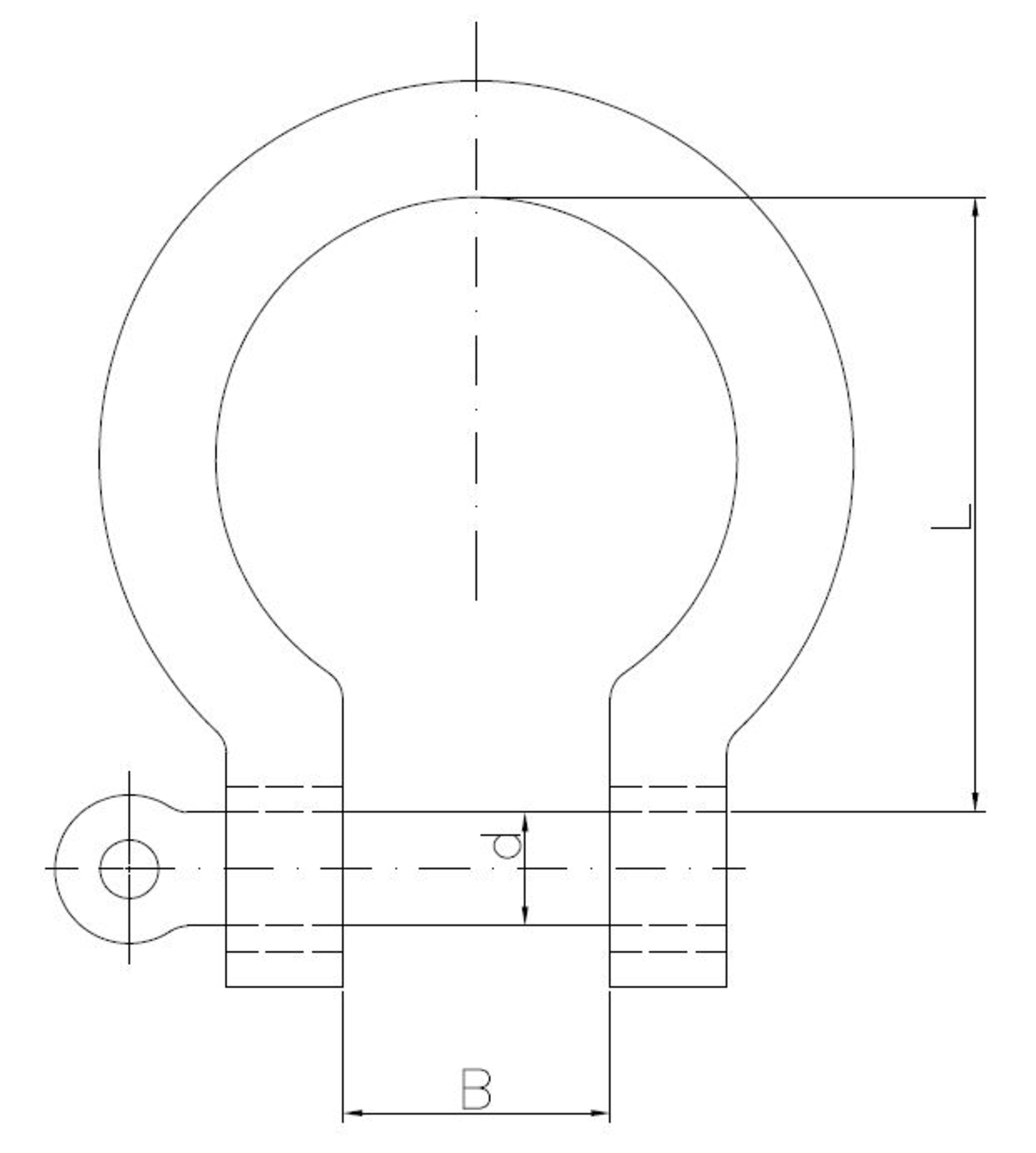

Material index More attributes	Dimension d [mm]	Dimension D [mm]	Dimension L [mm]	Dimension B [mm]	Material	Dimension A [mm]	Dimension C [mm]	Dimension H [mm]	Unit of measure	Availability

I6338040SZEKOA4S	4	4	8,5	9	A4	4	27	16	PCS	The product is available
I6338050SZEKOA4S	5	5	10,5	10	A4	5	32	20	PCS	The product is available
I6338060SZEKOA4S	6	6	13	13	A4	6	41	27	PCS	The product is available
I6338080SZEKOA4S	8	8	17	16	A4	8	52	32	PCS	The product is available
I6338100SZEKOA4S	10	10	21	21	A4	10	65	39	PCS	The product is available
I6338120SZEKOA4S	12	12	24	25	A4	12	85	51	PCS	The product is available
I6338160SZEKOA4S		16	34	32		15	107	68	PCS	Product on request
I6338190SZEKOA4S		19	38	38		18	127	82	PCS	Product on request
