Schackle, OMEGA type

View in store

DOWNLOADABLE DOCUMENTS

Declarations of conformity

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Type

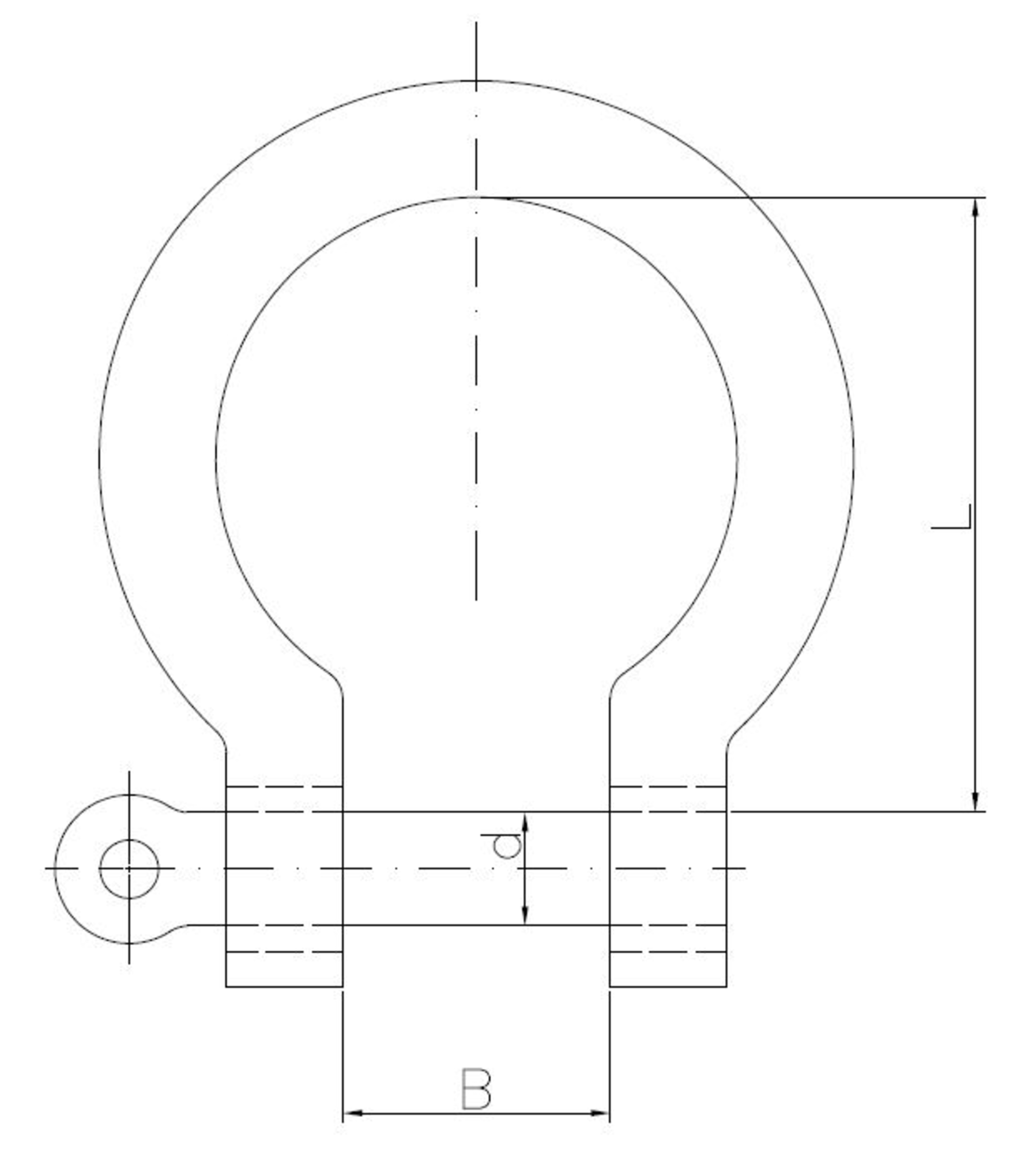

Dimension d [mm]

Dimension D [mm]

Dimension L [mm]

Dimension A [mm]

Dimension B [mm]

Acceptable load [kg]

Dimension C [mm]

Dimension H [mm]

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Type	Dimension d [mm]	Dimension D [mm]	Dimension L [mm]	Dimension A [mm]	Dimension B [mm]	Acceptable load [kg]	Dimension C [mm]	Dimension H [mm]	Unit of measure	Availability

6338050SZEKOS	5		5	10	5	11	80	33	20	PCS	Product on request
6338060SZEKOS	6	6	6	13	6	12	100	40	26	PCS	The product is available
6338078T005OKL6S										PCS	The product is available
6338080SZEKOS	8	8	8	16	7	15	200	49	31	PCS	The product is available
6338093T0075OKL6S										PCS	The product is available
6338100SZEKOS	10	10	10	20	9	18	300	61	38	PCS	The product is available
6338110T010OKL6S										PCS	The product is available
6338120SZEKOS	12	12	12	25	11	23	500	80	52	PCS	The product is available
6338140SZEKOS	14		14	27	13	28	600	87	55	PCS	Product on request
6338157T020OKL6S										PCS	The product is available
6338157T020OKL6ZS										PCS	The product is available
6338160SZEKOS	16		16	35	15	30	800	105	68	PCS	Product on request
6338185T0325OKL6S										PCS	The product is available
6338185T0325OKL6ZS										PCS	The product is available
6338190SZEKOS	19		19	40	19	37	1100	120	76	PCS	Product on request
6338215T0475OKL6S										PCS	The product is available
6338215T0475OKL6ZS										PCS	The product is available
6338245T065OKL6S										PCS	The product is available
6338245T065OKL6ZS										PCS	The product is available
6338275T085OKL6S										PCS	The product is available
6338275T085OKL6ZS										PCS	The product is available
6338320T095OKL6S										PCS	The product is available
6338320T120OKL6ZS										PCS	The product is available
6338350T120OKL6S										PCS	The product is available
