Screw for mounting terraces with HCP’coat

32
.
20
WTR

The screw for mounting terrace boards is a high-quality fastener specifically designed for the convenient and durable installation of decking boards on various substrates. Its construction and materials ensure stable and aesthetically pleasing connections, preventing damage and corrosion to the boards.

These terrace screws are primarily intended for the installation of outdoor wooden decks and vertical cladding. They feature a double thread design. The lower thread secures the screw in the substrate, while the upper thread has a reverse winding direction, reducing the torque required for installation. The special conical shape of the screw head perfectly conceals the fastening in the substrate. The HCP’coat protective coating, utilizing nanotechnology, provides exceptional corrosion resistance exceeding 1000 hours in a salt spray chamber, offering reliable protection against external weather conditions. These terrace screws are recommended for fastening spruce, pine, Douglas fir, cedar, mahogany, oak, maple, American walnut, as well as composite materials.

Applications:

The screw for mounting terrace boards is indispensable in the construction of decks and platforms. It is ideal for professional construction projects as well as DIY work. It can be used to install boards made from natural wood or composite materials.

Benefits:

  • Secure and durable mounting of terrace boards.
  • Minimizes the risk of wood damage and corrosion thanks to durable materials.
  • Special threading ensures efficient screwing into various types of wood and substrates.
  • Washer head evenly distributes load and prevents decking from settling.
  • Resistance to weather conditions due to the protective coating or corrosion-resistant material.
DOWNLOADABLE DOCUMENTS
Declarations of conformity

Recommended

Group
3220

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

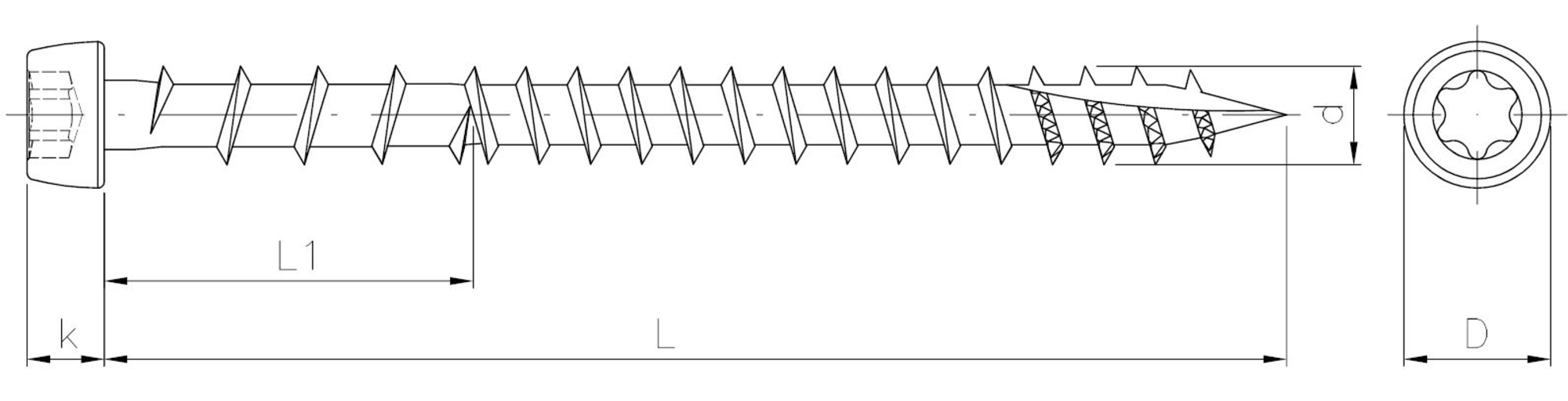

Dimension d [mm]
Dimension L [mm]
Dimension D [mm]
Dimension k [mm]
Dimension L1 [mm]
Type
Variety of coating
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Dimension D [mm] Dimension k [mm] Dimension L1 [mm] Type Variety of coating Unit of measure Availability Show More
3220050040TXBRAT
5.0 40 7.0 3.0 16 brown HCP Coat THS
3220050040TXSZAT
5.0 40 7.0 3.0 16 grey HCP Coat THS
3220050050TXBRAT
5.0 50 7.0 3.0 16 brown HCP Coat THS
3220050050TXPIAT
5.0 50 7.0 3.0 16 sand HCP Coat THS
3220050050TXSZAT
5.0 50 7.0 3.0 16 grey HCP Coat THS
3220050050TXZLOT
5.0 50 7.0 3.0 16 golden HCP Coat THS
3220050060TXBRAT
5.0 60 7.0 3.0 16 brown HCP Coat THS
3220050060TXPIAT
5.0 60 7.0 3.0 16 sand HCP Coat THS
3220050060TXSZAT
5.0 60 7.0 3.0 16 grey HCP Coat THS
3220050060TXZLOT
5.0 60 7.0 3.0 16 golden HCP Coat THS
3220050070TXBRAT
5.0 70 7.0 3.0 16 brown HCP Coat THS
3220050070TXPIAT
5.0 70 7.0 3.0 16 sand HCP Coat THS
3220050070TXSZAT
5.0 70 7.0 3.0 16 grey HCP Coat THS
