Self-drilling sandwich panel screw (ceramic coating). Drilling capacity m

MPT 25 SP

View in store

DOWNLOADABLE DOCUMENTS

Declarations of conformity

ETA

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

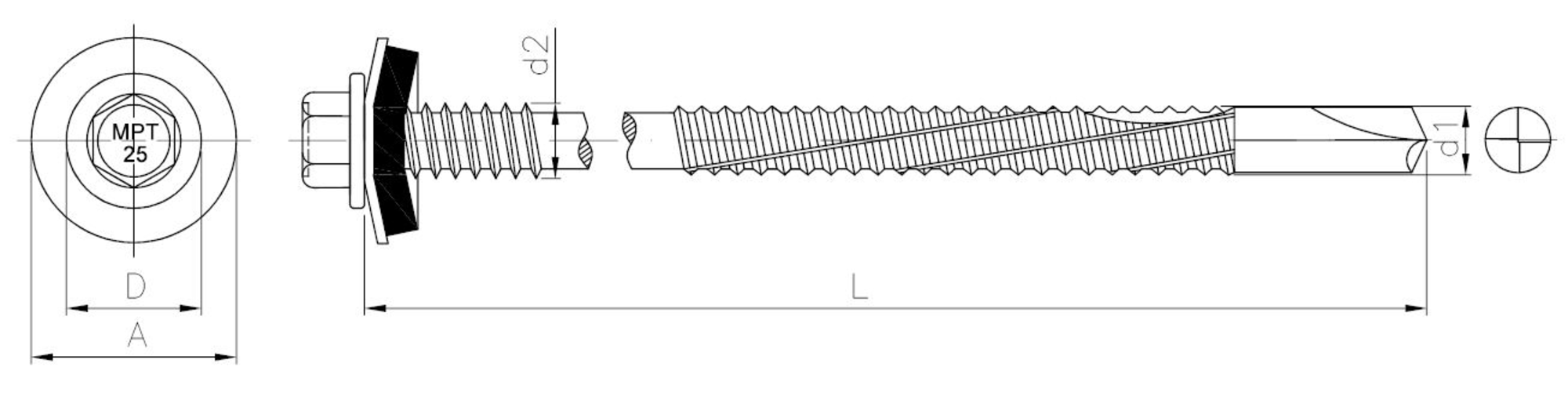

Dimension L [mm]

Dimension D [mm]

Head

Dimension d1 [mm]

Dimension d2 [mm]

Dimension A [mm]

Variety of coating

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension L [mm]	Dimension D [mm]	Head	Dimension d1 [mm]	Dimension d2 [mm]	Dimension A [mm]	Variety of coating	Unit of measure	Availability

5226063145A19H10S	145	13.0	6P	6.3	7.0	19	ceramic coating	PCS	The product is available
5226063165A19H10S	165	13.0	6P	6.3	7.0	19	ceramic coating	PCS	The product is available
5226063185A19H10S	185	13.0	6P	6.3	7.0	19	ceramic coating	PCS	The product is available
5226063205A19H10S	205	13.0	6P	6.3	7.0	19	ceramic coating	PCS	The product is available
5226063225A19H10S	225	13.0	6P	6.3	7.0	19	ceramic coating	PCS	The product is available
5226063245A19H10S	245	13.0	6P	6.3	7.0	19	ceramic coating	PCS	The product is available
5226063265A19H10S	265	13.0	6P	6.3	7.0	19	ceramic coating	PCS	The product is available
