Self-drilling sandwich panel screw (ceramic coating). Drilling capacity m

MPT 6 SP

Screw coated with a Ruspert Silver ceramic coating and an aluminum washer with a diameter of 19 mm.

Corrosion class C4-H, C5-M.

Available for order in RAL color palette.

View in store

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

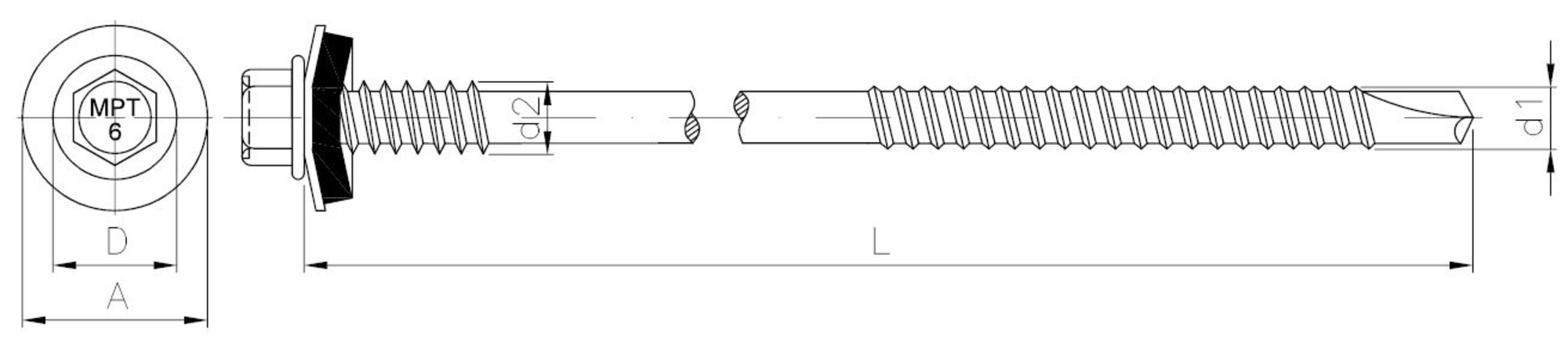

Dimension L [mm]

Dimension D [mm]

Colour RAL

Head

Dimension d1 [mm]

Dimension d2 [mm]

Dimension A [mm]

Variety of coating

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Material index More attributes	Dimension L [mm]	Dimension D [mm]	Colour RAL	Head	Dimension d1 [mm]	Dimension d2 [mm]	Dimension A [mm]	Variety of coating	Unit of measure	Availability

5215055065A19H10S	65	11		6P	5.5	6.3	19	ceramic coating	PCS	The product is available
5215055085A19H10S	85	11		6P	5.5	6.3	19	ceramic coating	PCS	The product is available
5215055085R9002S								ceramic coating	PCS	The product is available
5215055085R9006S	85		9006		5,5	6,3	19	ceramic coating	PCS	The product is available
5215055105A19H10S	105	11		6P	5.5	6.3	19	ceramic coating	PCS	The product is available
5215055105R9002S								ceramic coating	PCS	The product is available
5215055125A19H10S	125	11		6P	5.5	6.3	19	ceramic coating	PCS	The product is available
5215055125R9010S								ceramic coating	PCS	The product is available
5215055155A19H10S	155	11		6P	5.5	6.3	19	ceramic coating	PCS	The product is available
5215055175A19H10S	175	11		6P	5.5	6.3	19	ceramic coating	PCS	The product is available
5215055205A19H10S	205	11		6P	5.5	6.3	19	ceramic coating	PCS	The product is available
5215055205R7035S								ceramic coating	PCS	The product is available
5215055235A19H10S	235	11		6P	5.5	6.3	19	ceramic coating	PCS	The product is available
5215055235R7035S								ceramic coating	PCS	The product is available
5215055235R9005S								ceramic coating	PCS	The product is available
5215055275A19H10S	275	11		6P	5.5	6.3	19	ceramic coating	PCS	The product is available
5215055275AR7016S								ceramic coating	PCS	The product is available
5215055275R9002S								ceramic coating	PCS	The product is available
