Self-drilling screw (ceramic coating). Drilling capacity max. 2 x 1,25 mm

52
.
31
MPT 02

Self-drilling Screw (Ceramic Coating). Drilling Capacity Max. 2 x 1.25 mm

The self-drilling screw with a ceramic coating is a reliable fastening element used in a wide range of applications. It has a drilling capacity of 2 x 1.25 mm, making it an ideal solution for fastening on various substrates.

Applications:

  • Fastening structural elements, strips, profiles, insulation, and various materials to different types of substrates, including wood, metal, and plastics.

Benefits:

  • Self-Drilling: The self-drilling thread eliminates the need for pre-drilling holes, speeding up the installation process.
  • Corrosion Resistance: The ceramic coating ensures the screw's durability and strength in various weather conditions.
  • Versatility: Suitable for fastening on different substrates, making it useful in many projects.

Also available in a version with an aluminum washer (Φ 14) and in a RAL color palette.

Corrosion Class: C4.

Recommended

Group
5231

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

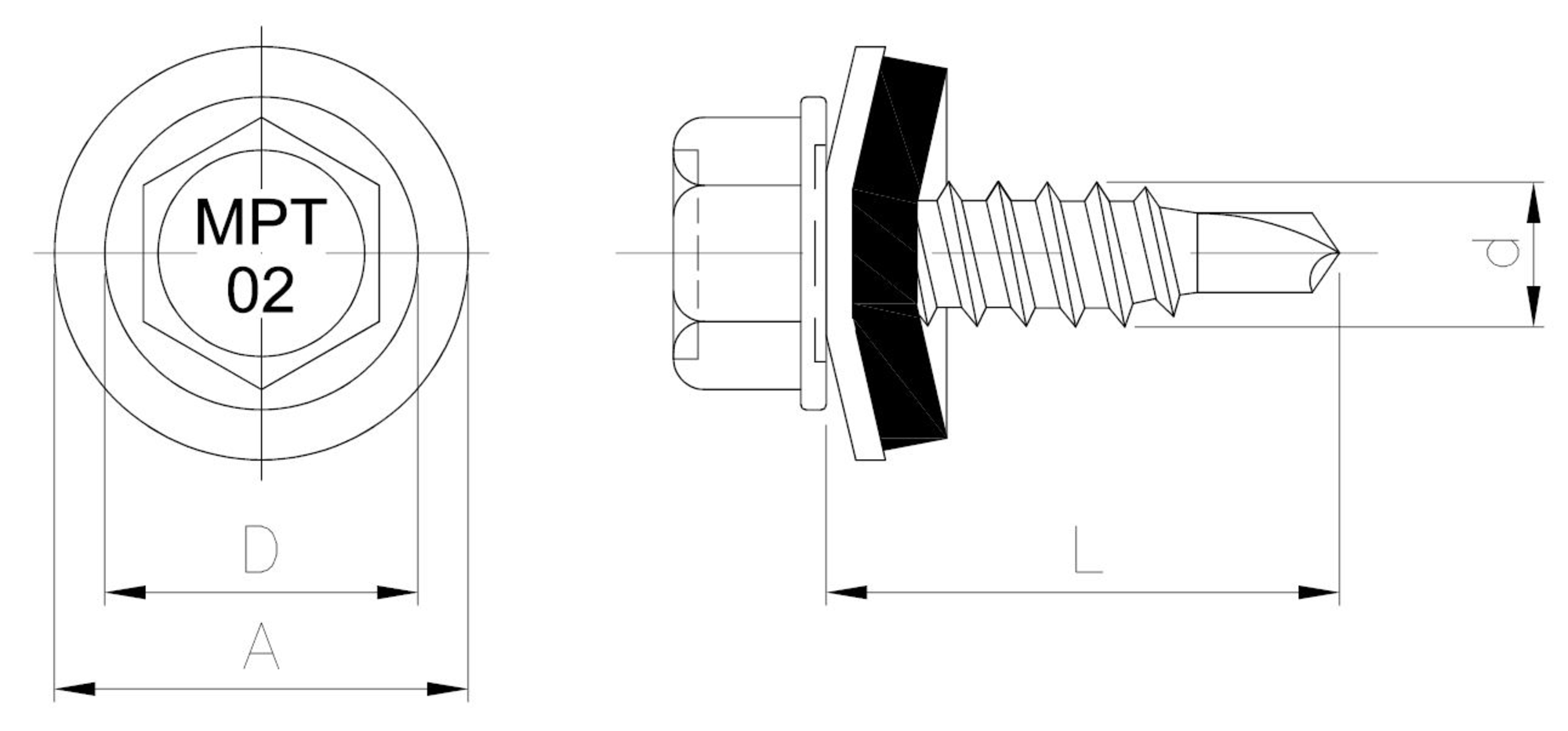

Dimension d [mm]
Dimension L [mm]
Dimension D [mm]
Variety of coating
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Dimension D [mm] Variety of coating Unit of measure Availability Show More
5231048020A14H05T
4.8 20 10.5 ceramic coating THS
5231048020BT
4.8 20 10.5 ceramic coating THS
5231048020H05T
4.8 20 10.5 ceramic coating THS
