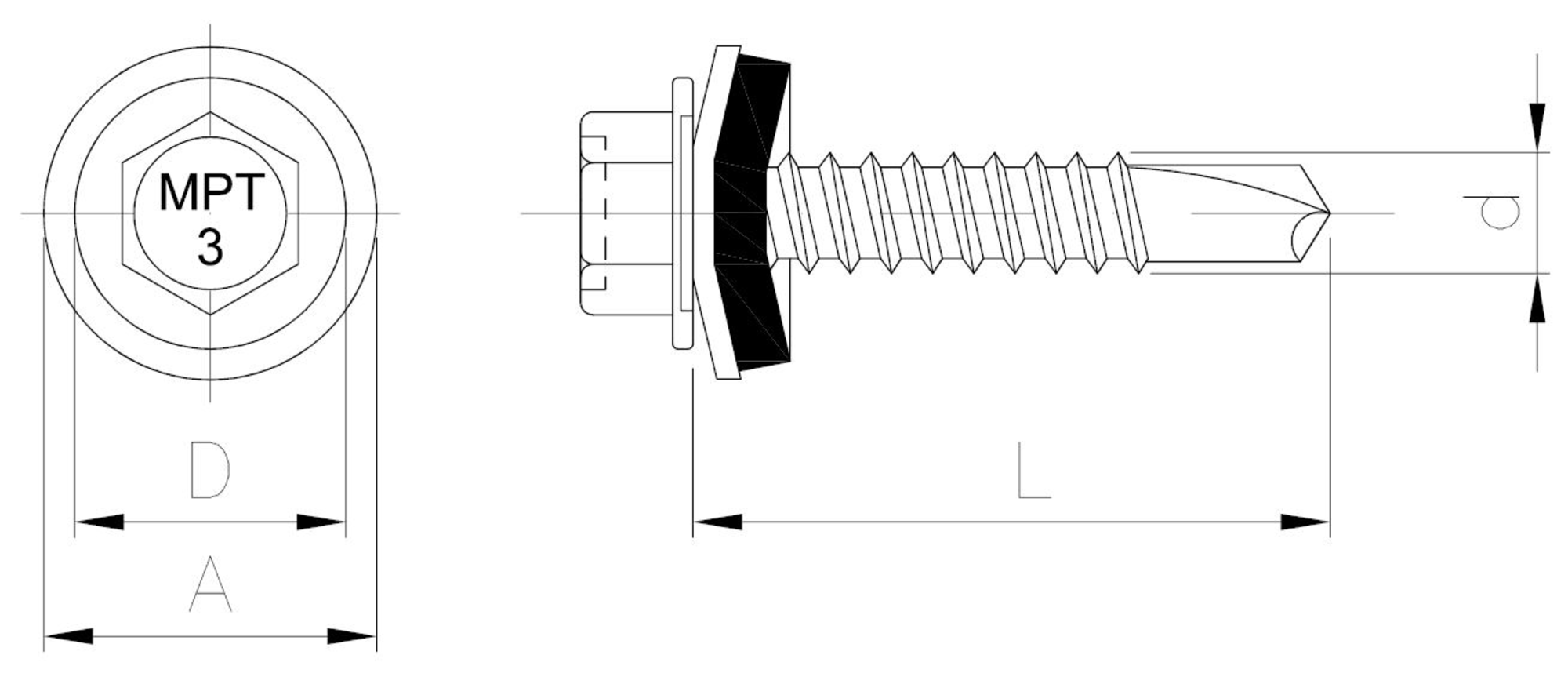

Self-drilling screw (ceramic coating). Drilling capacity max. 3 mm

52
.
35
MPT 3

he self-drilling screw with ceramic coating is an innovative fastening tool that performs excellently in various construction and assembly applications. This specific model has the ability to drill holes with a diameter of 3 mm, making it a versatile solution for fastening on different substrates.

Applications:

  • Installation of structural elements, insulation, panels, profiles, and various materials on different types of substrates, including wood, metal, and plastics.

Benefits:

  • Self-Drilling: The self-drilling thread eliminates the need for pre-drilling holes, saving time and effort.
  • Corrosion Resistance: The ceramic coating provides excellent protection against corrosion, which is crucial in outdoor applications and humid conditions.
  • Durability: The screw is robust and resistant to damage, extending its lifespan.
  • Versatility: Suitable for fastening on various substrates, making it a universal fastening tool.

Recommended

Group
5235

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Dimension d [mm]
Dimension L [mm]
Dimension D [mm]
Dimension A [mm]
Variety of coating
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Dimension D [mm] Dimension A [mm] Variety of coating Unit of measure Availability Show More
52350048016A14H05T
4.8 16 10.5 14 ceramic coating THS
52350048016H05T
4.8 16 10.5 - ceramic coating THS
52350048019A14H05T
4.8 19 10.5 14 ceramic coating THS
52350048019H05T
4.8 19 10.5 - ceramic coating THS
52350048022A14H05T
4.8 22 10.5 14 ceramic coating THS
52350048022H05T
4.8 22 10.5 - ceramic coating THS
52350048025A14H05T
4.8 25 10.5 14 ceramic coating THS
52350048025H05T
4.8 25 10.5 - ceramic coating THS
