Self-drilling screw with integrated washer (ceramic coating). Drilling ca

52
.
33
MPT 03 IW

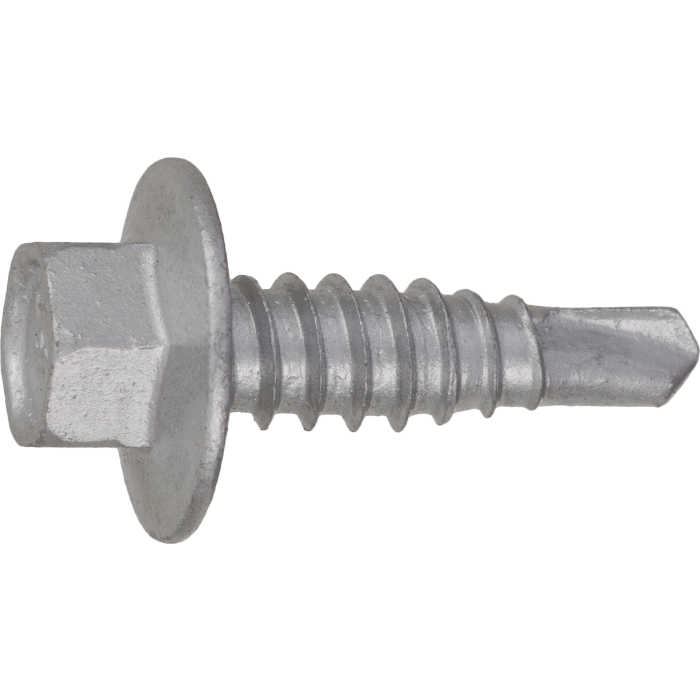

The self-drilling screw with an integrated washer and ceramic coating is a highly efficient fastening tool that combines the benefits of a self-drilling screw with a durable and resistant ceramic coating. It has a drilling capacity of 3 mm, making it an ideal solution for fastening on various substrates.

Applications:

  • Fastening structural elements, strips, profiles, insulation, and various materials to different types of substrates, including wood, metal, and plastics.

Benefits:

  • Self-Drilling: The self-drilling thread eliminates the need for pre-drilling holes, speeding up the installation process.
  • Integrated Washer: The washer integrated into the design ensures even pressure distribution and stability of the mounted element.
  • Corrosion Resistance: The ceramic coating guarantees the screw's durability and strength in various weather conditions.
  • Versatility: Suitable for fastening on different substrates, making it useful in many projects.

Available with an integrated washer in Ruspert Silver coating.

Corrosion Class C4.

Recommended

Group
5233

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

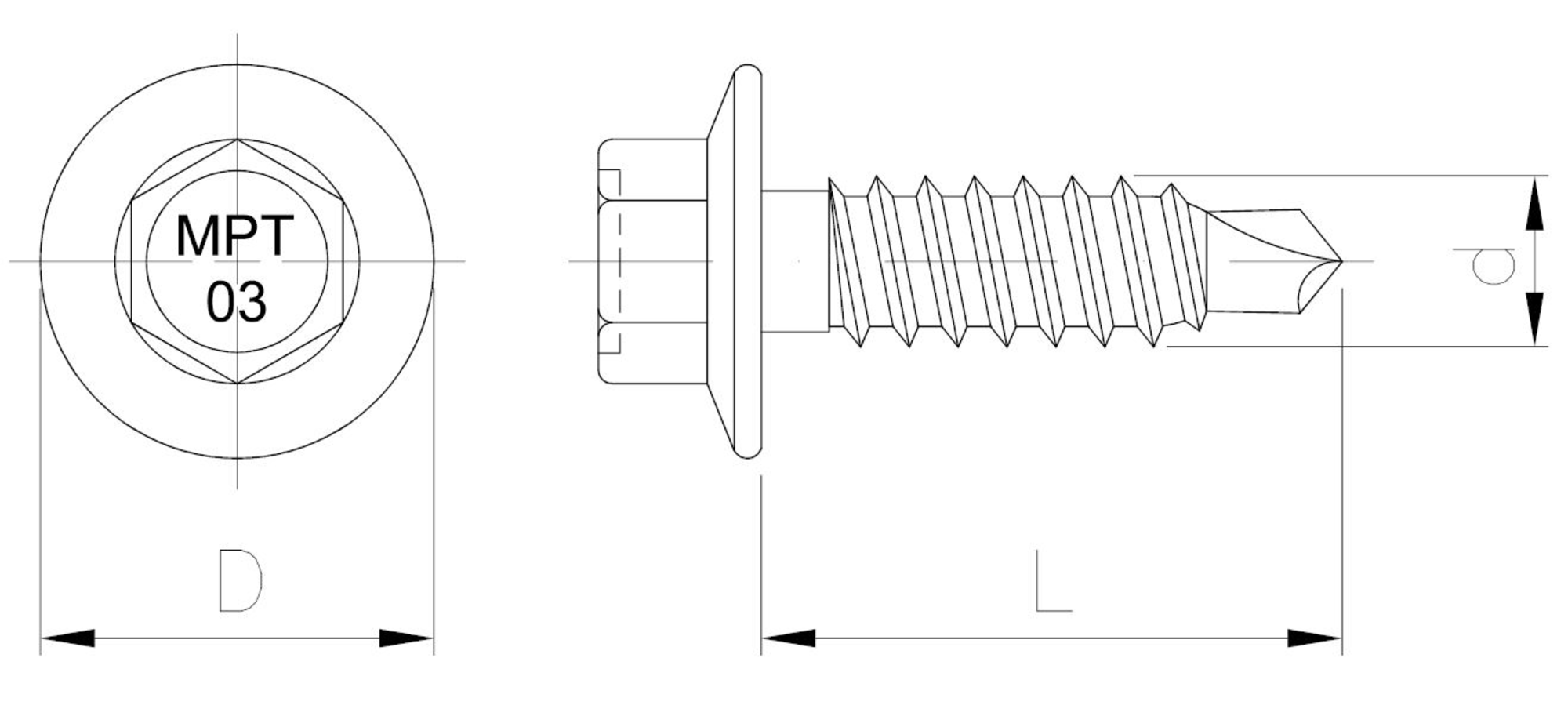

Dimension d [mm]
Dimension L [mm]
Dimension D [mm]
Head
Variety of coating
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Dimension D [mm] Head Variety of coating Unit of measure Availability Show More
5233063022IWH05T
6.3 22 15 P ceramic coating THS
