Self-locking hexagon nut with polyamide insert with fine thread thread

15
.
29

The self-locking hexagon nut with polyamide insert and fine thread inox is an advanced fastening element that combines the durability of stainless steel, the precision of fine threads, and the functionality of a polyamide insert. This innovative product ensures a secure fastening while eliminating the risk of self-loosening, making it ideal for applications that require certainty and stability in connections.

Applications:
The self-locking hexagon nut with polyamide insert and fine thread inox finds use in various industries, from machinery manufacturing and electronics to steel constructions, wherever reliable and durable fastening is essential.

Benefits:

  • Durability: Made from stainless steel inox, this nut guarantees corrosion resistance, extending its lifespan.
  • Self-Locking Mechanism: The polyamide insert eliminates the risk of self-loosening, enhancing the stability of the connection.
  • Precise Threading: The fine thread provides accuracy in fastening, which is crucial in applications requiring precision.
  • Versatility: This nut excels across different industries and applications, making it a versatile fastening component.
  • Ease of Installation: The hexagonal shape allows for easy handling with standard tools, speeding up the installation process.
Send product inquiry

Product inquiry form

Recommended

Group
I1529

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Dimension d [mm]
Dimension s [mm]
Thread pitch
Material
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes

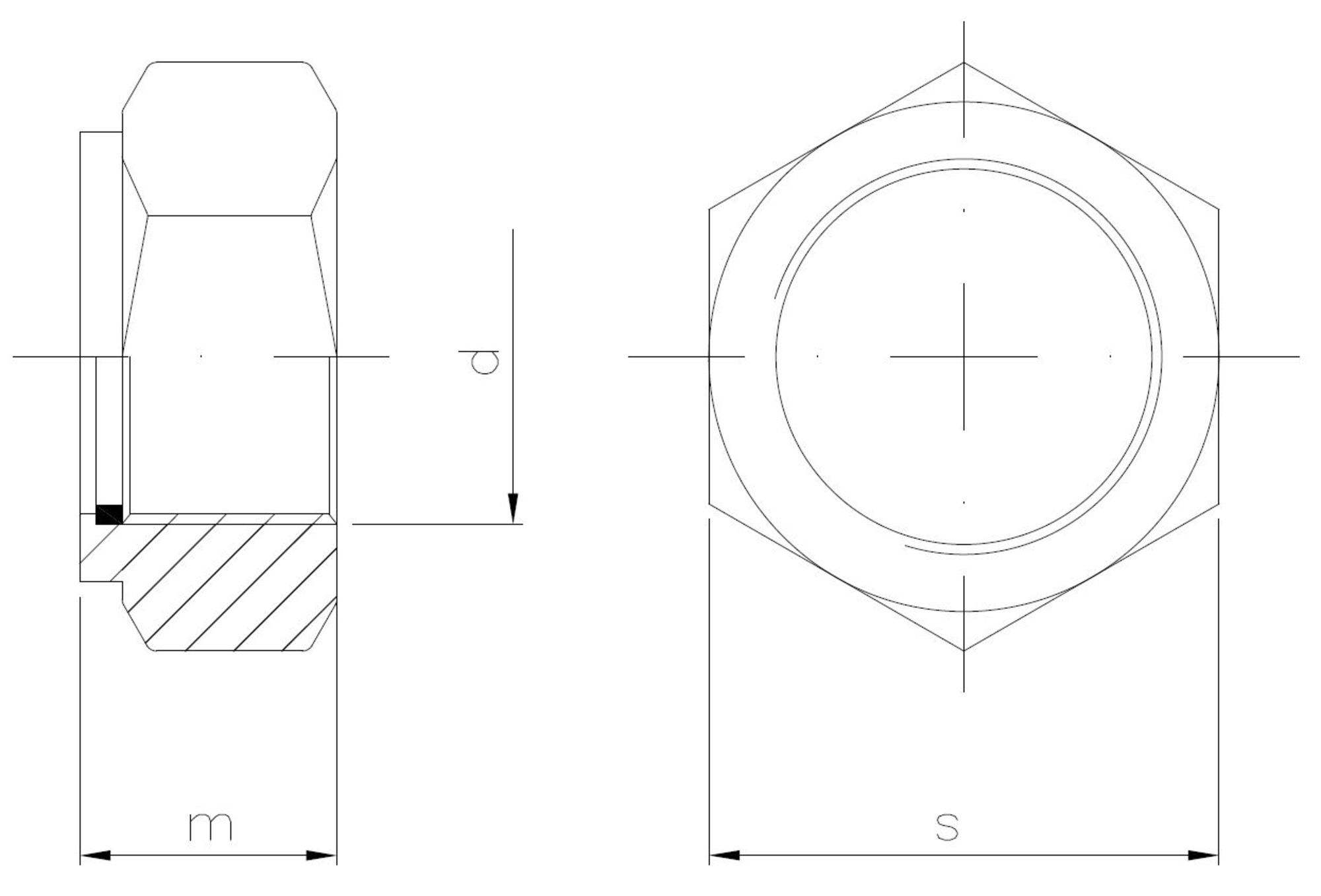

Dimension d [mm] Dimension s [mm] Thread pitch Material Standard Unit of measure Availability Show More
I1529080100A27985T
M8 13 1.00 A2-70 DIN985 THS
I1529080100A48985T
M8 13 1.00 A4-80 DIN985 THS
I1529100100A27985T
M10 17 1.00 A2-70 DIN985 THS
I1529100100A48985T
M10 17 1.00 A4-80 DIN985 THS
I1529120150A27985T
M12 19 1.50 A2-70 DIN 985 THS
I1529120150A48985T
M12 19 1.50 A4-80 DIN985 THS
I1529140150A27985T
M14 22 1.50 A2-70 DIN985 THS
I1529140150A48985T
M14 22 1.50 A4-80 DIN985 THS
I1529160150A27985T
M16 24 1.50 A2-70 DIN985 THS
I1529160150A48985T
M16 24 1.50 A4-80 DIN985 THS
I1529180150A27985T
M18 27 1.50 A2-70 DIN985 THS
I1529180150A48985T
M18 27 1.50 A4-80 DIN985 THS
I1529200150A27985T
M20 30 1.50 A2-70 DIN985 THS
I1529200150A48985T
M20 30 1.50 A4-80 DIN985 THS
I1529220150A27985T
M22 32 1.50 A2-70 DIN985 THS
I1529220150A48985T
M22 32 1.50 A4-80 DIN985 THS
I1529240200A27985T
M24 36 2.00 A2-70 DIN985 THS
I1529240200A47985T
M24 36 2.00 A4-70 DIN985 THS
