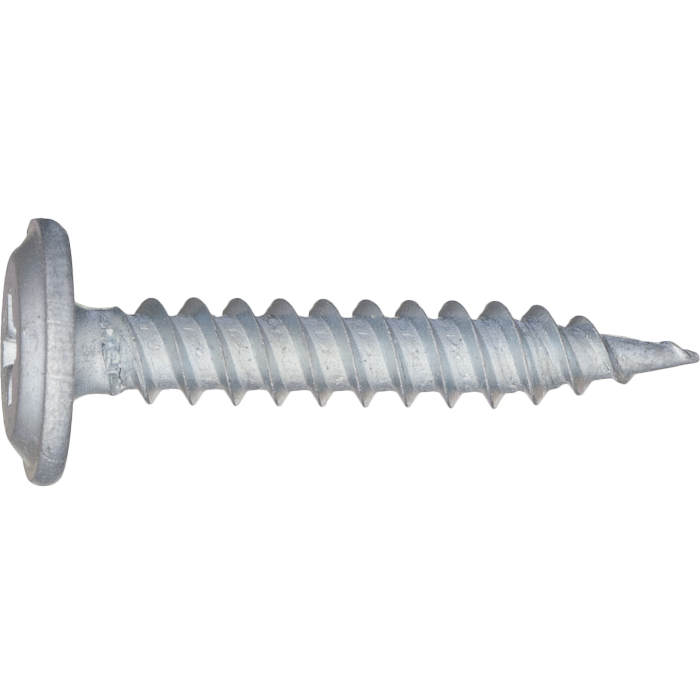

Sheet metal flange head screw

BPMNT

A mounting screw for sheet metal with a washer head is a specialized component designed for secure and stable fastening of sheets and other thin materials. Its unique washer head design ensures even load distribution and minimizes the risk of material damage.

Applications:

The mounting screw for sheet metal with a washer head is widely used in industries such as construction, metalworking, automotive, and many others. It is ideal for fastening sheets, panels, structural elements, and anywhere durable and reliable connections in thin materials are essential.

Features and Benefits:

Unique Washer Head Design: Ensures even load distribution on the material and minimizes the risk of damage.
High-Quality Construction: Made from durable materials for long-lasting performance.
Available in Various Sizes: Offered in different lengths and diameters to suit specific application needs.

View in store

DOWNLOADABLE DOCUMENTS

Certificates

Znak Certyfikacji 020-UWB-0799.Z_7.pdf

Declarations of conformity

ETA

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

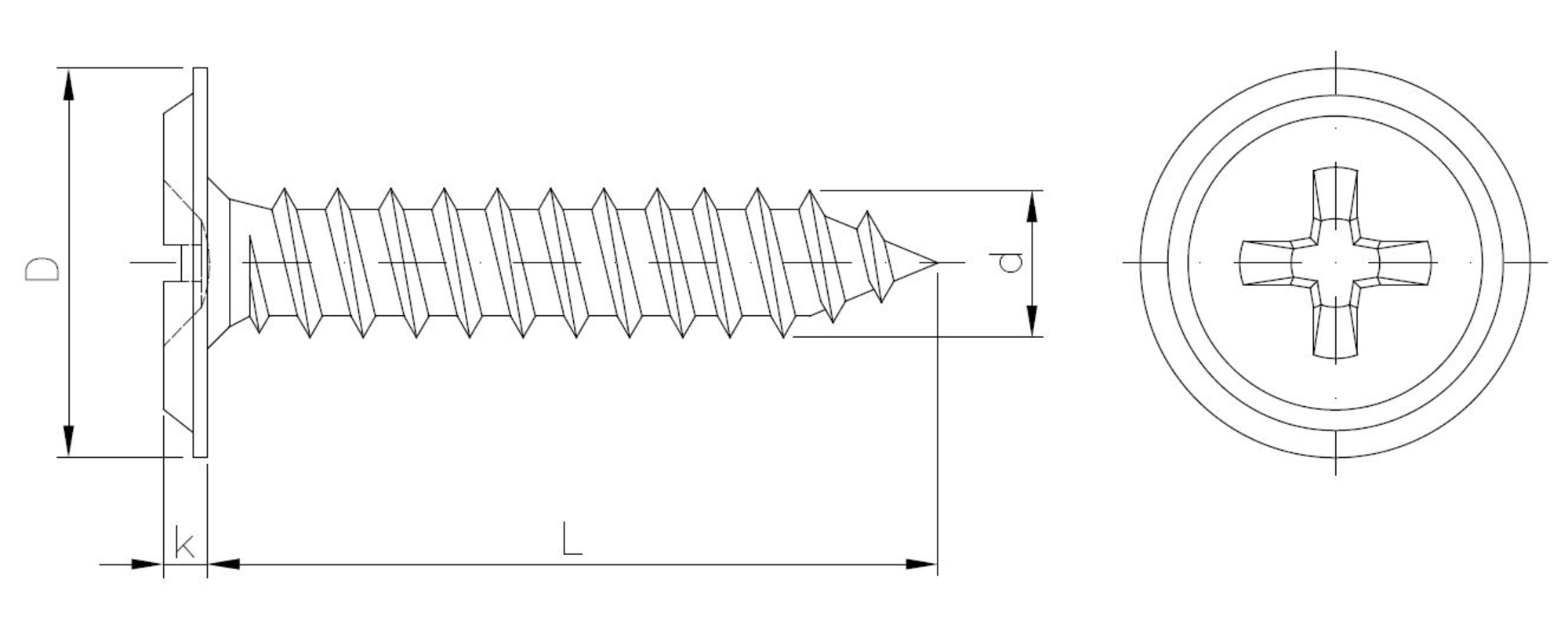

Dimension d [mm]

Dimension L [mm]

Colour RAL

Thread ending

Variety of coating

Recess

Dimension D [mm]

Dimension k [mm]

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension L [mm]	Colour RAL	Thread ending	Variety of coating	Recess	Dimension D [mm]	Dimension k [mm]	Unit of measure	Availability

23150420130PHB747T	4.2	13	7047	O (sharp)	white zinc plating	PH	11.5	3.05	THS	The product is available
23150420130PHB905T	4.2	13	9005	O (sharp)	white zinc plating	PH	11.5	3.05	THS	The product is available
23150420130PHBT	4.2	13		O (sharp)	white zinc plating	PH	11.5	3.05	THS	The product is available
23150420130PHFDXT	4.2	13		O (sharp)	phosphated coating	PH	11.5	3.05	THS	Product on request
23150420130PHFT	4.2	13		O (sharp)	phosphated coating	PH	11.5	3.05	THS	Product on request
23150420160PHBT	4.2	16		O (sharp)	white zinc plating	PH	11.5	3.05	THS	The product is available
23150420160PHCT	4.2	16		O (sharp)	black zinc plating	PH	11.5	3.05	THS	The product is available
23150420160PHFDXT	4.2	16		O (sharp)	phosphated coating	PH	11.5	3.05	THS	Product on request
23150420160PHFT	4.2	16		O (sharp)	phosphated coating	PH	11.5	3.05	THS	Product on request
23150420190PHBT	4.2	19		O (sharp)	white zinc plating	PH	11.5	3.05	THS	The product is available
23150420190PHFDXT	4.2	19		O (sharp)	phosphated coating	PH	11.5	3.05	THS	Product on request
23150420190PHFT	4.2	19		O (sharp)	phosphated coating	PH	11.5	3.05	THS	The product is available
23150420250PHBT	4.2	25		O (sharp)	white zinc plating	PH	11.5	3.05	THS	The product is available
23150420250PHFDXT	4.2	25		O (sharp)	phosphated coating	PH	11.5	3.05	THS	Product on request
23150420250PHFT	4.2	25		O (sharp)	phosphated coating	PH	11.5	3.05	THS	Product on request
23150420300PHBT	4.2	30		O (sharp)	white zinc plating	PH	11.5	3.05	THS	Product on request
23150420300PHFT	4.2	30		O (sharp)	phosphated coating	PH	11.5	3.05	THS	Product on request
23150420320PHBF28T	4.2	32		O (sharp)	white zinc plating	PH	11.5	3.05	THS	The product is available
23150420320PHBT	4.2	32		O (sharp)	white zinc plating	PH	11.5	3.05	THS	The product is available
23150420320PHFDXT	4.2	32		O (sharp)	phosphated coating	PH	11.5	3.05	THS	Product on request
23150420380PHBT	4.2	38		O (sharp)	white zinc plating	PH	11.5	3.05	THS	Product on request
23150420380PHFT	4.2	38		O (sharp)	phosphated coating	PH	11.5	3.05	THS	Product on request
23150420400PHBT	4.2	40		O (sharp)	white zinc plating	PH	11.5	3.05	THS	The product is available
23150420400PHFDXT	4.2	40		O (sharp)	phosphated coating	PH	11.5	3.05	THS	Product on request
23150420500PHBT	4.2	50		O (sharp)	white zinc plating	PH	11.5	3.05	THS	Product on request
23150420500PHFT	4.2	50		O (sharp)	phosphated coating	PH	11.5	3.05	THS	Product on request
23150420650PHBT	4.2	65		O (sharp)	white zinc plating	PH	11.5	3.05	THS	Product on request
23150420650PHFT	4.2	65		O (sharp)	phosphated coating	PH	11.5	3.05	THS	Product on request
