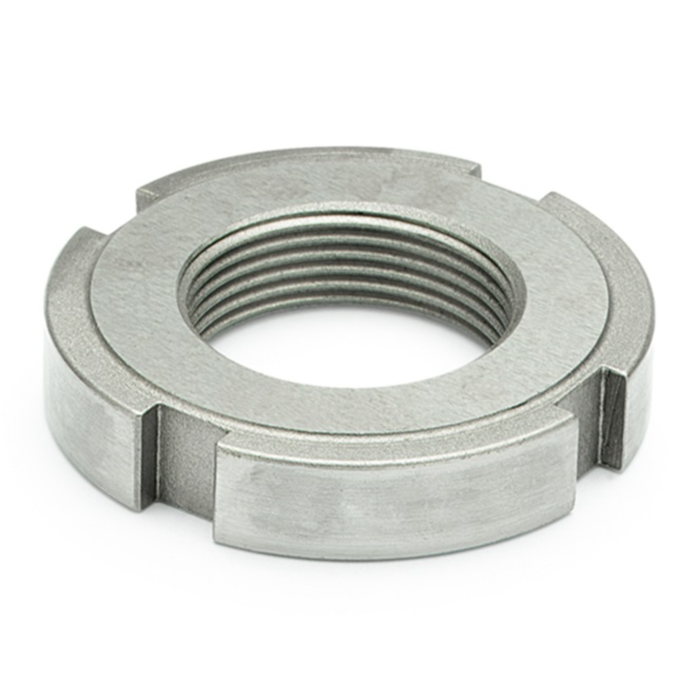

Slotted round nut

The grooved round nut is a fastening component characterized by its round shape and grooves located on its outer surface. This design allows for better resistance to loosening, making it an ideal solution in applications where vibrations or temperature changes occur. This nut is often used in situations requiring secure and durable connections, and its shape facilitates easy assembly and disassembly.

Application:

Mechanical Engineering: Used for fastening components in machinery and equipment constructions, where securing against accidental loosening is essential.
Construction: Employed in building applications where reliable connections are necessary, especially in structures exposed to vibrations.
Furniture Industry: Can be used in furniture to provide durable and aesthetically pleasing connections.

Benefits:

Loosening Resistance: The grooves on the outer surface enhance the nut's grip on the component, reducing the risk of the connection becoming loose.
Ease of Assembly and Disassembly: The round shape makes the nut easy to handle, facilitating quick assembly and disassembly of components.
Versatility: Can be used in various industries and applications, making it a universal solution for fastening in diverse projects.

Send product inquiry

Product:

Inquiry:

Firstname and lastname:

Company:

Country:

Phone:

E‑mail:

Attachment:

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Dimension d [mm]

Dimension m [mm]

Class of mechanical properties

Variety of coating

Thread pitch

Dimension D [mm]

Dimension a [mm]

Dimension D1 [mm]

Dimension e [mm]

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension m [mm]	Class of mechanical properties	Variety of coating	Thread pitch	Dimension D [mm]	Dimension a [mm]	Dimension D1 [mm]	Dimension e [mm]	Standard	Unit of measure	Availability

1574120150SHD1804T	M12	6.5	17H	raw	1.50	28	5	23	2	DIN 1804	THS	Product on request
1574160150SHD1804T	M16	7.5	14H	raw	1.50	32	5	27	2	DIN 1804	THS	Product on request
1574180150SHD1804T	M18	8.5	14H	raw	1.50	34	6	28	2.5	DIN 1804	THS	Product on request
1574200150SHD1804T	M20	8.5	14H	raw	1.50	36	6	30	2.5	DIN 1804	THS	Product on request
1574220150SHD1804T	M22	9.5	14H	raw	1.50	40	6	34	2.5	DIN 1804	THS	Product on request
1574240150SHD1804T	M24	9.5	14H	raw	1.50	42	6	36	2.5	DIN 1804	THS	Product on request
1574280150SHD1804T	M28	10.5	14H	raw	1.50	50	7	43	3	DIN 1804	THS	Product on request
1574300150SHD1804T	M30	10.5	14H	raw	1.50	50	7	43	3	DIN 1804	THS	Product on request
1574320150SHD1804T	M32	11.5	14H	raw	1.50	52	7	45	3	DIN 1804	THS	Product on request
1574350150SHD1804T	M35	11.5	14H	raw	1.50	55	7	48	3	DIN 1804	THS	Product on request
1574420150SHD1804T	M42	12.5	14H	raw	1.50	62	8	54	3.5	DIN 1804	THS	Product on request
1574480150SHD1804T	M48	13.5	14H	raw	1.50	75	8	67	3.5	DIN 1804	THS	Product on request
1574100200SHD1804T	M100	17	14H	raw	2.00	145	12	130	5	DIN 1804	THS	Product on request
1574110200SHD1804T	M110	17	14H	raw	2.00	155	12	140	5	DIN 1804	THS	Product on request
1574120200SHD1804T	M120	19	14H	raw	2.00	165	12	150	5	DIN 1804	THS	Product on request
1574260150SHD1804T	M26	10.5	14H	raw	1.50	45	7	38	3	DIN 1804	THS	Product on request
1574380150SHD1804T	M38	11.5	14H	raw	1.50	58	8	50	3.5	DIN 1804	THS	Product on request
1574400150SHD1804T	M40	12.5	14H	raw	1.50	62	8	54	3.5	DIN 1804	THS	Product on request
1574450150SHD1804T	M45	12.5	14H	raw	1.50	68	8	60	3.5	DIN 1804	THS	Product on request
1574500150SHD1804T	M50	13.5	14H	raw	1.50	75	8	67	3.5	DIN 1804	THS	Product on request
1574520150SHD1804T	M52	13.5	14H	raw	1.50	80	10	70	4	DIN 1804	THS	Product on request
1574550150SHD1804T	M55	13.5	14H	raw	1.50	80	10	70	4	DIN 1804	THS	Product on request
1574580150SHD1804T	M58	13.5	14H	raw	1.50	90	10	80	4	DIN 1804	THS	Product on request
1574600150SHD1804T	M60	13.5	14H	raw	1.50	90	10	80	4	DIN 1804	THS	Product on request
1574620150SHD1804T	M62	14.5	14H	raw	1.50	95	10	85	4	DIN 1804	THS	Product on request
1574650150SHD1804T	M65	14.5	14H	raw	1.50	95	10	85	4	DIN 1804	THS	Product on request
1574680150SHD1804T	M68	14.5	14H	raw	1.50	100	10	90	4	DIN 1804	THS	Product on request
1574700150SHD1804T	M70	14.5	14H	raw	1.50	100	10	90	4	DIN 1804	THS	Product on request
1574720150SHD1804T	M72	14.5	14H	raw	1.50	110	10	100	4	DIN 1804	THS	Product on request
1574750150SHD1804T	M75	14.5	14H	raw	1.50	110	10	100	4	DIN 1804	THS	Product on request
1574800150SHD1804T	M80	17	14H	raw	2.00	115	10	105	4	DIN 1804	THS	Product on request
1574850150SHD1804T	M85	17	14H	raw	2.00	120	10	110	4	DIN 1804	THS	Product on request
1574900150SHD1804T	M90	17	14H	raw	2.00	130	10	120	4	DIN 1804	THS	Product on request
1574950150SHD1804T	M95	17	14H	raw	2.00	135	12	120	5	DIN 1804	THS	Product on request
1574120150S17HDT	M12	6.5	17H	raw	1.50	28	5	23	2	DIN 1804	THS	Product on request
1574160150S17HDT	M16	7.5	17H	raw	1.50	32	5	27	2	DIN 1804	THS	Product on request
1574180150S17HDT	M18	8.5	17H	raw	1.50	34	6	28	2.5	DIN 1804	THS	Product on request
1574200150S17HDT	M20	8.5	17H	raw	1.50	36	6	30	2.5	DIN 1804	THS	Product on request
1574220150S17HDT	M22	9.5	17H	raw	1.50	40	6	34	2.5	DIN 1804	THS	Product on request
1574240150S17HDT	M24	9.5	17H	raw	1.50	42	6	36	2.5	DIN 1804	THS	Product on request
1574280150S17HDT	M28	10.5	17H	raw	1.50	50	7	43	3	DIN 1804	THS	Product on request
1574300150S17HDT	M30	10.5	17H	raw	1.50	50	7	43	3	DIN 1804	THS	Product on request
1574320150S17HDT	M32	11.5	17H	raw	1.50	52	7	45	3	DIN 1804	THS	Product on request
1574350150S17HDT	M35	11.5	17H	raw	1.50	55	7	48	3	DIN 1804	THS	Product on request
1574420150S17HDT	M42	12.5	17H	raw	1.50	62	8	54	3.5	DIN 1804	THS	Product on request
1574480150S17HDT	M48	13.5	17H	raw	1.50	75	8	67	3.5	DIN 1804	THS	Product on request
