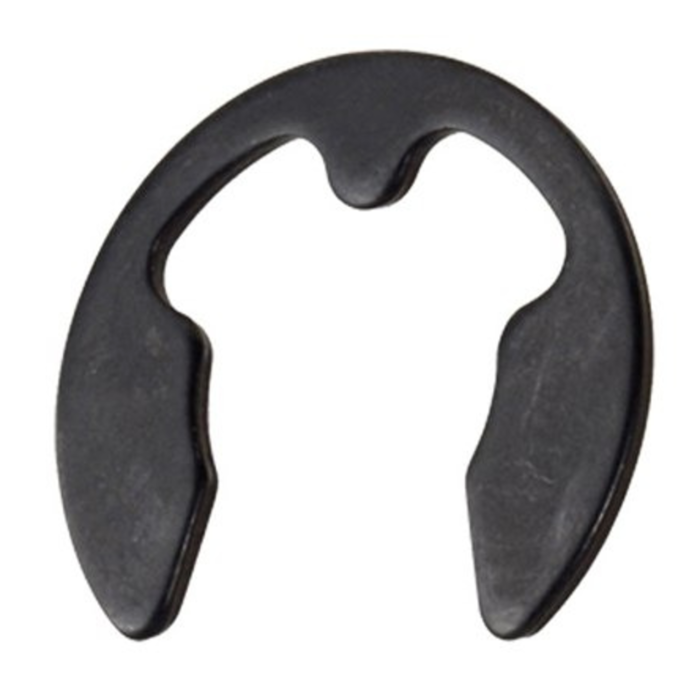

Snap plate

16
.
15

A snape plate is a fastening mechanism component designed to provide a durable and secure attachment for various parts. It is engineered for easy installation and effective connections, ensuring stability and safety in a wide range of applications.

Applications:

Snap plates are used in diverse applications, such as the assembly of electronic, mechanical, or structural components, where stable and secure fastening is required.

Benefits:

  • Versatility:
    Available in various sizes and designs, these retaining plates can be used in a wide range of applications.

  • Ease of Installation:
    The straightforward installation process of spring retaining plates accelerates production and assembly tasks.

  • Durability:
    Made from high-quality materials, they ensure a long-lasting connection even under extreme conditions.

  • Flexibility:
    The springy design allows the plates to adapt to irregular shapes and mounting surfaces.

Recommended

Group
1615

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Dimension d [mm]
Variety of coating
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Variety of coating Standard Unit of measure Availability Show More
1615012FD6799T
1.2 phosphated coating DIN 6799 THS
1615015FD6799T
1.5 phosphated coating DIN 6799 THS
1615019FD6799T
1.9 phosphated coating DIN 6799 THS
1615019SD6799T
1.9 phosphated coating DIN 6799 THS
1615023FD6799T
2.3 phosphated coating DIN 6799 THS
1615032FD6799T
3.2 phosphated coating DIN 6799 THS
1615032SD6799T
3.2 raw DIN 6799 THS
1615040FD6799T
4.0 phosphated coating DIN 6799 THS
1615040SD6799T
4.0 raw DIN 6799 THS
1615050BD6799T
5.0 white zinc plating DIN 6799 THS
1615050FD6799T
5.0 phosphated coating DIN 6799 THS
1615050SD6799T
5.0 raw DIN 6799 THS
1615060FD6799T
6.0 phosphated coating DIN 6799 THS
1615060SD6799T
6.0 raw DIN 6799 THS
1615070FD6799T
7.0 phosphated coating DIN 6799 THS
1615070SD6799T
7.0 raw DIN 6799 THS
1615080FD6799T
8.0 phosphated coating DIN 6799 THS
1615090FD6799T
9.0 phosphated coating DIN 6799 THS
1615100FD6799T
10.0 phosphated coating DIN 6799 THS
1615120FD6799T
12.0 phosphated coating DIN 6799 THS
1615150FD6799T
15.0 phosphated coating DIN 6799 THS
1615190FD6799T
19.0 phosphated coating DIN 6799 THS
1615240FD6799T
24.0 phosphated coating DIN 6799 THS
