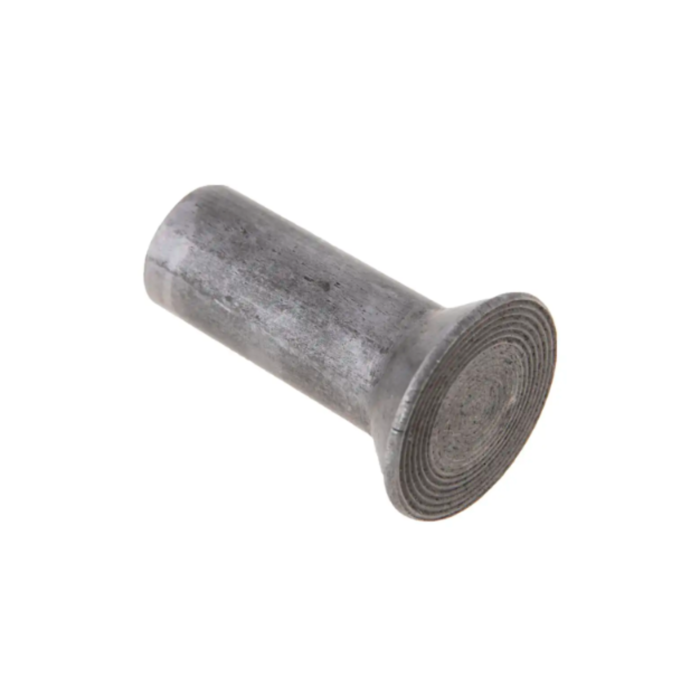

Solid taped rivet with countersunk head

24
.
35

The full countersunk head solid rivet is a robust fastening element that, once installed, creates a strong, permanent connection. Made from high-quality material, this rivet can withstand high mechanical loads. Its countersunk head allows for a smooth, flush installation, making it ideal for applications that require a clean finish. Full solid rivets are commonly used in the construction, automotive, aerospace, and furniture industries.

Applications:
The full countersunk head solid rivet is used in:

  • Construction Industry: For durable connections of metal and structural components.
  • Automotive Industry: In car bodies, panels, and structures where strong and aesthetically pleasing connections are needed.
  • Aerospace Industry: In structures requiring high strength and safety standards.
  • Furniture Manufacturing: For connections where both aesthetic finish and structural durability are important.

Benefits:

  • Strong Connection: The full solid rivet provides a strong, permanent connection capable of withstanding high loads.
  • Aesthetic Finish: The countersunk head allows for a flush installation, ensuring a smooth, clean appearance post-installation.
  • Mechanical Strength: This rivet is resistant to shear and tensile forces, ensuring durability in demanding conditions.

Recommended

Group
2435

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Diameter d [mm]
Length L [mm]
Head diameter D [mm]
Dimension s [mm]
Head height k [mm]
Standard
Material
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Diameter d [mm] Length L [mm] Head diameter D [mm] Dimension s [mm] Head height k [mm] Standard Material Unit of measure Availability Show More
2435020120SD661T
2.0 12 3.5 1 1 DIN 661 St (carbon steel) THS
2435030060ALD661T
3.0 6 5.2 1.5 1.4 DIN 661 Zn Al THS
2435030080ALD661T
3.0 8 5.2 1.5 1.4 DIN 661 Zn Al THS
2435030080CUD661T
3.0 8 5.2 1.5 1.4 DIN 661 Cu THS
2435030100ALD661T
3.0 10 5.2 1.5 1.4 DIN 661 Zn Al THS
2435030100CUD661T
3.0 10 5.2 1.5 1.4 DIN 661 Cu THS
2435030100MD661T
3.0 10 5.2 1.5 1.4 DIN 661 Cu Zn THS
2435030100SD661T
3.0 10 5.2 1.5 1.4 DIN 661 St (carbon steel) THS
2435030160ALD661T
3.0 16 5.2 1.5 1.4 DIN 661 Zn Al THS
2435030200ALD661T
3.0 20 5.2 1.5 1.4 DIN 661 Zn Al THS
2435030200CUD661T
3.0 20 5.2 1.5 1.4 DIN 661 Cu THS
2435040080ALD661T
4.0 8 7 2 2 DIN 661 Zn Al THS
2435040080SD661T
4.0 8 7 2 2 DIN 661 St (carbon steel) THS
2435040100ALD661T
4.0 10 7 2 2 DIN 661 Zn Al THS
2435040100MD661T
4.0 10 7 2 DIN 661 Cu Zn THS
2435040100SD661T
4.0 10 7 2 2 DIN 661 St (carbon steel) THS
2435040120ALD661T
4.0 12 7 2 2 DIN 661 Zn Al THS
2435040120SD661T
4.0 12 7 2 2 DIN 661 St (carbon steel) THS
2435040160ALD661T
4.0 16 7 2 2 DIN 661 Zn Al THS
2435040160SD661T
4.0 16 7 2 2 DIN 661 St (carbon steel) THS
2435040200ALD661T
4.0 20 7 2 2 DIN 661 Zn Al THS
2435040200MD661T
4.0 20 7 2 2 DIN 661 Cu Zn THS
2435040200SD661T
4.0 20 7 2 2 DIN 661 St (carbon steel) THS
2435040300ALD661T
4.0 30 7 2 2 DIN 661 Zn Al THS
2435050100ALD661T
5.0 10 8.8 2.5 2.5 DIN 661 Zn Al THS
2435050100MD661T
5.0 10 8.8 2.5 2.5 DIN 661 Cu Zn THS
2435050100SD661T
5.0 10 8.8 2.5 2.5 DIN 661 St (carbon steel) THS
2435050120SD661T
5.0 12 8.8 2.5 2.5 DIN 661 St (carbon steel) THS
2435050140SD661T
5.0 14 8.8 2.5 2.5 DIN 661 St (carbon steel) THS
2435050160ALD661T
5.0 16 8.8 2.5 2.5 DIN 661 Zn Al THS
2435050160SD661T
5.0 16 8.8 2.5 2.5 DIN 661 St (carbon steel) THS
2435050200ALD661T
5.0 20 8.8 2.5 2.5 DIN 661 Zn Al THS
2435050200SD661T
5.0 20 8.8 2.5 2.5 DIN 661 St (carbon steel) THS
2435050250ALD661T
5.0 25 8.8 2.5 2.5 DIN 661 Zn Al THS
2435050250SD661T
5.0 25 8.8 2.5 2.5 DIN 661 St (carbon steel) THS
2435050300ALD661T
5.0 30 8.8 2.5 2.5 DIN 661 Zn Al THS
2435050300SD661T
5.0 30 8.8 2.5 2.5 DIN 661 St (carbon steel) THS
2435050400ALD661T
5.0 40 8.8 2.5 2.5 DIN 661 Zn Al THS
2435050400SD661T
5.0 40 8.8 2.5 2.5 DIN 661 St (carbon steel) THS
2435060160ALD661T
6.0 16 10.5 3 3 DIN 661 Zn Al THS
2435060160SD661T
6.0 16 10.5 3 3 DIN 661 St (carbon steel) THS
2435060180SD661T
6.0 18 10.5 3 3 DIN 661 St (carbon steel) THS
2435060200ALD661T
6.0 20 10.5 3 3 DIN 661 Zn Al THS
2435060200SD661T
6.0 20 10.5 3 3 DIN 661 St (carbon steel) THS
2435060240SD661T
6.0 24 10.5 3 3 DIN 661 St (carbon steel) THS
2435060250SD661T
6.0 10.5 3 3 DIN 661 St (carbon steel) THS
2435060280SD661T
6.0 28 10.5 3 3 DIN 661 St (carbon steel) THS
2435060300ALD661T
6.0 30 10.5 3 3 DIN 661 Zn Al THS
2435060300SD661T
6.0 30 10.5 3 3 DIN 661 St (carbon steel) THS
2435060350SD661T
6.0 10.5 3 3 DIN 661 St (carbon steel) THS
2435060400SD661T
6.0 40 10.5 3 3 DIN 661 St (carbon steel) THS
2435060550SD661T
6.0 55 10.5 3 3 DIN 661 St (carbon steel) THS
2435080120SD661T
8.0 12 14 4 4 DIN 661 St (carbon steel) THS
2435080160SD661T
8.0 16 14 4 4 DIN 661 St (carbon steel) THS
2435080200SD661T
8.0 20 14 4 4 DIN 661 St (carbon steel) THS
2435080250SD661T
8.0 25 14 4 4 DIN 661 St (carbon steel) THS
2435080350SD661T
8.0 35 14 4 4 DIN 661 St (carbon steel) THS
2435080400ALD661T
8.0 40 14 4 4 DIN 661 Zn Al THS
2435020040ALD661T
DIN 661 THS
2435020050ALD661T
DIN 661 THS
2435020060ALD661T
DIN 661 THS
2435020080ALD661T
DIN 661 THS
2435020100ALD661T
DIN 661 THS
2435020160ALD661T
DIN 661 THS
2435025060ALD661T
DIN 661 THS
2435025080ALD661T
DIN 661 THS
2435025100ALD661T
DIN 661 THS
2435025120ALD661T
DIN 661 THS
2435030120ALD661T
DIN 661 THS
2435030180ALD661T
DIN 661 THS
2435030250ALD661T
DIN 661 THS
2435030300ALD661T
DIN 661 THS
2435040060ALD661T
DIN 661 THS
2435040140ALD661T
DIN 661 THS
2435040180ALD661T
DIN 661 THS
2435040250ALD661T
DIN 661 THS
2435040400ALD661T
DIN 661 THS
2435050080ALD661T
DIN 661 THS
2435050120ALD661T
DIN 661 THS
2435050350ALD661T
DIN 661 THS
2435050500ALD661T
DIN 661 THS
2435060100ALD661T
DIN 661 THS
2435060120ALD661T
DIN 661 THS
2435060180ALD661T
DIN 661 THS
2435060250ALD661T
DIN 661 THS
2435060350ALD661T
DIN 661 THS
2435060400ALD661T
DIN 661 THS
2435060500ALD661T
DIN 661 THS
2435060600ALD661T
DIN 661 THS
2435080160ALD661T
DIN 661 THS
2435080200ALD661T
DIN 661 THS
2435080250ALD661T
DIN 661 THS
2435080300ALD661T
DIN 661 THS
2435080350ALD661T
DIN 661 THS
2435080450ALD661T
DIN 661 THS
2435080500ALD661T
DIN 661 THS
2435080600ALD661T
DIN 661 THS
