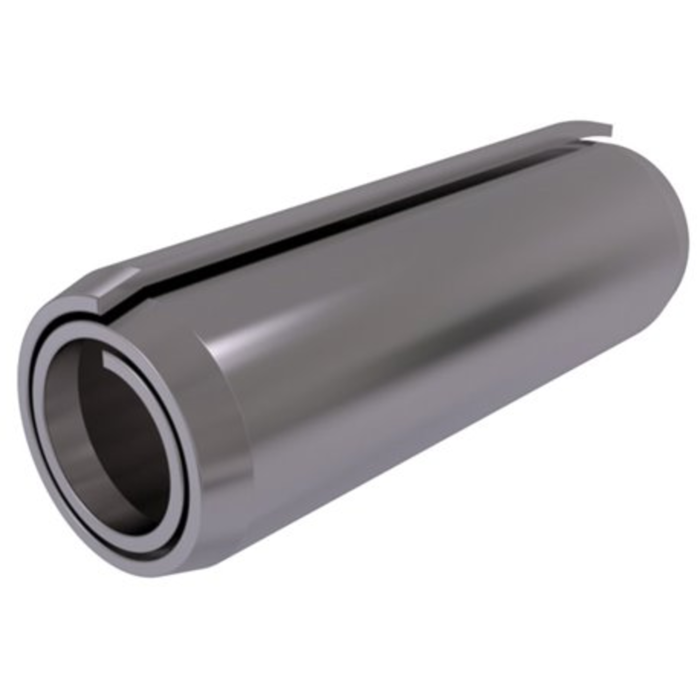

Spring pin

16
.
46

Spring pins are essential components in the field of assembly and maintaining the stability of structures. Their versatility makes them invaluable in various industries where reliable retention of components in specific positions is required.

Applications:

Spring pins are utilized across numerous fields, including:

  • Automotive Industry
  • Electronics
  • Furniture Manufacturing
  • Home Appliance Production

They primarily serve to hold components in place while absorbing vibrations and shocks.

Benefits:

  • Flexible Design:
    Adapts to the dimensions of the hole for a secure fit.

  • Vibration and Shock Absorption:
    Enhances stability by mitigating the effects of vibrations and shocks.

  • Quick and Easy Installation:
    Facilitates efficient assembly and disassembly processes.

  • Resistance to Deformation:
    Offers mechanical durability and retains shape under stress.

  • Variety of Sizes:
    Available in different sizes to accommodate flexible applications.

View in store

Recommended

Group
1646

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Dimension d [mm]
Dimension L [mm]
Dimension a [mm]
Variety of coating
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Dimension a [mm] Variety of coating Standard Unit of measure Availability Show More
1646015005SD7343T
1.5 5 0.5 raw DIN 7343 THS
1646015005SI8750T
1.5 5 0.5 raw ISO 8750 THS
1646015006SD7343T
1.5 6 0.5 raw DIN 7343 THS
1646015006SI8750T
1.5 6 0.5 raw ISO 8750 THS
1646015008SD7343T
1.5 8 0.5 raw DIN 7343 THS
1646015008SI8750T
1.5 8 0.5 raw ISO 8750 THS
1646015010SD7343T
1.5 10 0.5 raw DIN 7343 THS
1646015010SI8750T
1.5 10 0.5 raw ISO 8750 THS
1646015012SD7343T
1.5 12 0.5 raw DIN 7343 THS
1646015012SI8750T
1.5 12 0.5 raw ISO 8750 THS
1646020006SD7343T
2 6 0.7 raw DIN 7343 THS
1646020006SI8750T
2 6 0.7 raw ISO 8750 THS
1646020008SD7343T
2 8 0.7 raw DIN 7343 THS
1646020008SI8750T
2 8 0.7 raw ISO 8750 THS
1646020010SD7343T
2 10 0.7 raw DIN 7343 THS
1646020010SI8750T
2 10 0.7 raw ISO 8750 THS
1646020012SD7343T
2 12 0.7 raw DIN 7343 THS
1646020012SI8750T
2 12 0.7 raw ISO 8750 THS
1646020014SD7343T
2 14 0.7 raw DIN 7343 THS
1646020014SI8750T
2 14 0.7 raw ISO 8750 THS
1646020016SD7343T
2 16 0.7 raw DIN 7343 THS
1646020016SI8750T
2 16 0.7 raw ISO 8750 THS
1646020018SD7343T
2 18 0.7 raw DIN 7343 THS
1646020018SI8750T
2 18 0.7 raw ISO 8750 THS
1646020020SD7343T
2 20 0.7 raw DIN 7343 THS
1646020020SI8750T
2 20 0.7 raw ISO 8750 THS
1646025008SI8750T
2.5 8 0.8 raw ISO 8750 THS
1646025010SD7343T
2.5 10 0.8 raw DIN 7343 THS
1646025010SI8750T
2.5 10 0.8 raw ISO 8750 THS
1646025012SD7343T
2.5 12 0.8 raw DIN 7343 THS
1646025012SI8750T
2.5 12 0.8 raw ISO 8750 THS
1646025016SD7343T
2.5 16 0.8 raw DIN 7343 THS
1646025016SI8750T
2.5 16 0.8 raw ISO 8750 THS
1646025020SD7343T
2.5 20 0.8 raw DIN 7343 THS
1646025020SI8750T
2.5 20 0.8 raw ISO 8750 THS
1646030006SI8750T
3 6 1 raw ISO 8750 THS
1646030008SD7343T
3 8 1 raw DIN 7343 THS
1646030008SI8750T
3 8 1 raw ISO 8750 THS
1646030010SD7343T
3 10 1 raw DIN 7343 THS
1646030010SI8750T
3 10 1 raw ISO 8750 THS
1646030012SD7343T
3 12 1 raw DIN 7343 THS
1646030012SI8750T
3 12 1 raw ISO 8750 THS
1646030014SD7343T
3 14 1 raw DIN 7343 THS
1646030014SI8750T
3 14 1 raw ISO 8750 THS
1646030016SD7343T
3 16 1 raw DIN 7343 THS
1646030016SI8750T
3 16 1 raw ISO 8750 THS
1646030018SD7343T
3 18 1 raw DIN 7343 THS
1646030018SI8750T
3 18 1 raw ISO 8750 THS
1646030020SD7343T
3 20 1 raw DIN 7343 THS
1646030020SI8750T
3 20 1 raw ISO 8750 THS
1646030022SI8750T
3 22 1 raw ISO 8750 THS
1646030024SD7343T
3 24 1 raw DIN 7343 THS
1646030024SI8750T
3 24 1 raw ISO 8750 THS
1646030026SD7343T
3 26 1 raw DIN 7343 THS
1646030026SI8750T
3 26 1 raw ISO 8750 THS
1646030028SI8750T
3 28 1 raw ISO 8750 THS
1646030030SD7343T
3 30 1 raw DIN 7343 THS
1646030030SI8750T
3 30 1 raw ISO 8750 THS
1646035020SD7343T
3.5 20 1.2 raw DIN 7343 THS
1646035020SI8750T
3.5 20 1.2 raw ISO 8750 THS
1646035024SD7343T
3.5 24 1.2 raw DIN 7343 THS
1646035024SI8750T
3.5 24 1.2 raw ISO 8750 THS
1646040010SD7343T
4 10 1.3 raw DIN 7343 THS
1646040010SI8750T
4 10 1.3 raw ISO 8750 THS
1646040012SD7343T
4 12 1.3 raw DIN 7343 THS
1646040012SI8750T
4 12 1.3 raw ISO 8750 THS
1646040014SD7343T
4 14 1.3 raw DIN 7343 THS
1646040014SI8750T
4 14 1.3 raw ISO 8750 THS
1646040016SD7343T
4 16 1.3 raw DIN 7343 THS
1646040016SI8750T
4 16 1.3 raw ISO 8750 THS
1646040018SD7343T
4 18 1.3 raw DIN 7343 THS
1646040018SI8750T
4 18 1.3 raw ISO 8750 THS
1646040020SD7343T
4 20 1.3 raw DIN 7343 THS
1646040020SI8750T
4 20 1.3 raw ISO 8750 THS
1646040022SI8750T
4 22 1.3 raw ISO 8750 THS
1646040024SD7343T
4 24 1.3 raw DIN 7343 THS
1646040024SI8750T
4 24 1.3 raw ISO 8750 THS
1646040026SD7343T
4 26 1.3 raw DIN 7343 THS
1646040026SI8750T
4 26 1.3 raw ISO 8750 THS
1646040028SI8750T
4 28 1.3 raw ISO 8750 THS
1646040030SD7343T
4 30 1.3 raw DIN 7343 THS
1646040030SI8750T
4 30 1.3 raw ISO 8750 THS
1646040032SD7343T
4 32 1.3 raw DIN 7343 THS
1646040032SI8750T
4 32 1.3 raw ISO 8750 THS
1646040036SD7343T
4 36 1.3 raw DIN 7343 THS
1646040036SI8750T
4 36 1.3 raw ISO 8750 THS
1646040040SD7343T
4 40 1.3 raw DIN 7343 THS
1646040040SI8750T
4 40 1.3 raw ISO 8750 THS
1646040050SD7343T
4 50 1.3 raw DIN 7343 THS
1646040050SI8750T
4 50 1.3 raw ISO 8750 THS
1646050012SI8750T
5 12 1.7 raw ISO 8750 THS
1646050016SI8750T
5 16 1.7 raw ISO 8750 THS
1646050020SD7343T
5 20 1.7 raw DIN 7343 THS
1646050020SI8750T
5 20 1.7 raw ISO 8750 THS
1646050022SD7343T
5 22 1.7 raw DIN 7343 THS
1646050022SI8750T
5 22 1.7 raw ISO 8750 THS
1646050024SD7343T
5 24 1.7 raw DIN 7343 THS
1646050024SI8750T
5 24 1.7 raw ISO 8750 THS
1646050026SD7343T
5 26 1.7 raw DIN 7343 THS
1646050026SI8750T
5 26 1.7 raw ISO 8750 THS
1646050028SI8750T
5 28 1.7 raw ISO 8750 THS
1646050030SD7343T
5 30 1.7 raw DIN 7343 THS
1646050030SI8750T
5 30 1.7 raw ISO 8750 THS
1646050032SD7343T
5 32 1.7 raw DIN 7343 THS
1646050032SI8750T
5 32 1.7 raw ISO 8750 THS
1646050035SI8750T
5 35 1.7 raw ISO 8750 THS
1646050040SD7343T
5 40 1.7 raw DIN 7343 THS
1646050040SI8750T
5 40 1.7 raw ISO 8750 THS
1646050045SI8750T
5 45 1.7 raw ISO 8750 THS
1646050050SI8750T
5 50 1.7 raw ISO 8750 THS
1646050060SI8750T
5 60 1.7 raw ISO 8750 THS
1646060014SD7343T
6 14 2 raw DIN 7343 THS
1646060014SI8750T
6 14 2 raw ISO 8750 THS
1646060016SI8750T
6 16 2 raw ISO 8750 THS
1646060018SD7343T
6 18 2 raw DIN 7343 THS
1646060018SI8750T
6 18 2 raw ISO 8750 THS
1646060020SD7343T
6 20 2 raw DIN 7343 THS
1646060020SI8750T
6 20 2 raw ISO 8750 THS
1646060022SI8750T
6 22 2 raw ISO 8750 THS
1646060024SD7343T
6 24 2 raw DIN 7343 THS
1646060024SI8750T
6 24 2 raw ISO 8750 THS
1646060026SD7343T
6 26 2 raw DIN 7343 THS
1646060026SI8750T
6 26 2 raw ISO 8750 THS
1646060028SI8750T
6 28 2 raw ISO 8750 THS
1646060030SD7343T
6 30 2 raw DIN 7343 THS
1646060030SI8750T
6 30 2 raw ISO 8750 THS
1646060032SI8750T
6 32 2 raw ISO 8750 THS
1646060035SD7343T
6 35 2 raw DIN 7343 THS
1646060035SI8750T
6 35 2 raw ISO 8750 THS
1646060040SD7343T
6 40 2 raw DIN 7343 THS
1646060040SI8750T
6 40 2 raw ISO 8750 THS
1646060045SD7343T
6 45 2 raw DIN 7343 THS
1646060045SI8750T
6 45 2 raw ISO 8750 THS
1646060050SD7343T
6 50 2 raw DIN 7343 THS
1646060050SI8750T
6 50 2 raw ISO 8750 THS
1646060060SI8750T
6 60 2 raw ISO 8750 THS
1646060070SI8750T
6 70 2 raw ISO 8750 THS
1646080016SI8750T
8 16 3 raw ISO 8750 THS
1646080020SD7343T
8 20 3 raw DIN 7343 THS
1646080020SI8750T
8 20 3 raw ISO 8750 THS
1646080022SI8750T
8 22 3 raw ISO 8750 THS
1646080024SD7343T
8 24 3 raw DIN 7343 THS
1646080024SI8750T
8 24 3 raw ISO 8750 THS
1646080026SI8750T
8 26 3 raw ISO 8750 THS
1646080028SI8750T
8 28 3 raw ISO 8750 THS
1646080030SD7343T
8 30 3 raw DIN 7343 THS
1646080030SI8750T
8 30 3 raw ISO 8750 THS
1646080032SI8750T
8 32 3 raw ISO 8750 THS
1646080035SD7343T
8 35 3 raw DIN 7343 THS
1646080035SI8750T
8 35 3 raw ISO 8750 THS
1646080040SD7343T
8 40 3 raw DIN 7343 THS
1646080040SI8750T
8 40 3 raw ISO 8750 THS
1646080045SD7343T
8 45 3 raw DIN 7343 THS
1646080045SI8750T
8 45 3 raw ISO 8750 THS
1646080050SD7343T
8 50 3 raw DIN 7343 THS
1646080050SI8750T
8 50 3 raw ISO 8750 THS
1646080055SI8750T
8 55 3 raw ISO 8750 THS
1646080060SI8750T
8 60 3 raw ISO 8750 THS
1646080070SI8750T
8 70 3 raw ISO 8750 THS
1646100030SI8750T
10 30 3 raw ISO 8750 THS
1646100032SI8750T
10 32 3 raw ISO 8750 THS
1646100035SI8750T
10 35 3 raw ISO 8750 THS
1646100040SD7343T
10 40 3 raw DIN 7343 THS
1646100040SI8750T
10 40 3 raw ISO 8750 THS
1646100045SI8750T
10 45 3 raw ISO 8750 THS
1646100050SD7343T
10 50 3 raw DIN 7343 THS
1646100050SI8750T
10 50 3 raw ISO 8750 THS
1646100055SD7343T
10 55 3 raw DIN 7343 THS
1646100060SD7343T
10 60 3 raw DIN 7343 THS
1646100060SI8750T
10 60 3 raw ISO 8750 THS
1646100070SD7343T
10 70 3 raw DIN 7343 THS
1646100070SI8750T
10 70 3 raw ISO 8750 THS
1646120030SI8750T
12 30 4 raw ISO 8750 THS
1646120035SI8750T
12 35 4 raw ISO 8750 THS
1646120040SD7343T
12 40 4 raw DIN 7343 THS
1646120040SI8750T
12 40 4 raw ISO 8750 THS
1646120050SD7343T
12 50 4 raw DIN 7343 THS
1646120050SI8750T
12 50 4 raw ISO 8750 THS
1646120060SD7343T
12 60 4 raw DIN 7343 THS
1646120060SI8750T
12 60 4 raw ISO 8750 THS
1646120080SD7343T
12 80 4 raw DIN 7343 THS
1646120080SI8750T
12 80 4 raw ISO 8750 THS
1646140050SD7343T
14 50 4.5 raw DIN 7343 THS
1646140050SI8750T
14 50 4.5 raw ISO 8750 THS
1646140070SD7343T
14 70 4.5 raw DIN 7343 THS
1646140070SI8750T
14 70 4.5 raw ISO 8750 THS
1646160060SD7343T
16 60 5 raw DIN 7343 THS
1646160060SI8750T
16 60 5 raw ISO 8750 THS
1646160090SD7343T
16 90 5 raw DIN 7343 THS
1646160090SI8750T
16 90 5 raw ISO 8750 THS
