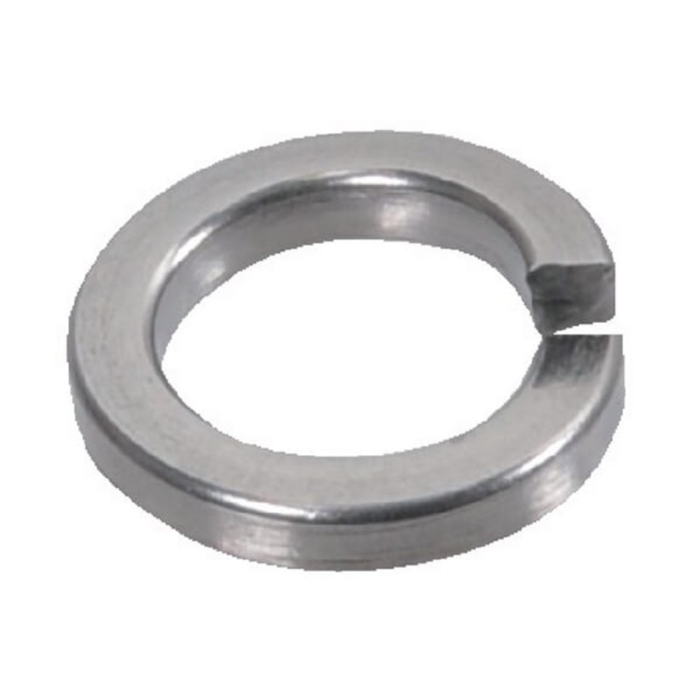

Spring round washer for cylindrical and button-head screws

Send product inquiry

Product:

Inquiry:

Firstname and lastname:

Company:

Country:

Phone:

E‑mail:

Attachment:

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Hole diameter M [mm]

Outer diameter D [mm]

Inner diameter d [mm]

Thickness h [mm]

Variety of coating

Dimension s [mm]

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Hole diameter M [mm]	Outer diameter D [mm]	Inner diameter d [mm]	Thickness h [mm]	Variety of coating	Dimension s [mm]	Standard	Unit of measure	Availability

1439030056BD7980T	M3	5.6	3	1.0	white zinc plating	2.0	DIN 7980	THS	Product on request
1439040070BD7980T	M4	7.0	4	1.2	white zinc plating	2.4	DIN 7980	THS	Product on request
1439050088BD7980T	M5	8.8	5	1.6	white zinc plating	3.2	DIN 7980	THS	Product on request
1439060099BD7980T	M6	9.9	6	1.6	white zinc plating	3.2	DIN 7980	THS	Product on request
1439080127BD7980T	M8	12.7	8	2.0	white zinc plating	4.0	DIN 7980	THS	Product on request
1439100160BD7980T	M10	16.0	10	2.5	white zinc plating	5.0	DIN 7980	THS	Product on request
1439120180BD7980T	M12	18.0	12	2.5	white zinc plating	5.0	DIN 7980	THS	Product on request
1439140211BD7980T	M14	21.1	14	3.0	white zinc plating	6.0	DIN 7980	THS	Product on request
1439160244BD7980T	M16	24.4	16	3.5	white zinc plating	7.0	DIN 7980	THS	Product on request
1439180264BD7980T	M18	26.4	18	3.5	white zinc plating	7.0	DIN 7980	THS	Product on request
1439200306BD7980T	M20	30.6	20	4.5	white zinc plating	9.0	DIN 7980	THS	Product on request
1439240359BD7980T	M24	35.9	24	5.0	white zinc plating	10.0	DIN 7980	THS	Product on request
1439240359GD7980T	M24	35.9	24	5.0	hot-dip galvanized	10.0	DIN 7980	THS	Product on request
1439270389BD7980T	M27	38.9	27	5.0	white zinc plating	10.0	DIN 7980	THS	Product on request
1439300441BD7980T	M30	44.1	30	6.0	white zinc plating	12.0	DIN 7980	THS	Product on request
1439330471BD7980T	M33	47.1	33	6.0	white zinc plating	12.0	DIN 7980	THS	Product on request
1439030056SD7980T							DIN 7980	THS	Product on request
1439040070SD7980T							DIN 7980	THS	Product on request
1439050088SD7980T							DIN 7980	THS	Product on request
1439060099SD7980T							DIN 7980	THS	Product on request
1439080127SD7980T							DIN 7980	THS	Product on request
1439100160SD7980T							DIN 7980	THS	Product on request
1439120180SD7980T							DIN 7980	THS	Product on request
1439140211SD7980T							DIN 7980	THS	Product on request
1439160244SD7980T							DIN 7980	THS	Product on request
1439180264SD7980T							DIN 7980	THS	Product on request
1439200306SD7980T							DIN 7980	THS	Product on request
1439220329BD7980T							DIN 7980	THS	Product on request
1439220329SD7980T							DIN 7980	THS	Product on request
1439240359SD7980T							DIN 7980	THS	Product on request
1439270389SD7980T							DIN 7980	THS	Product on request
1439300441SD7980T							DIN 7980	THS	Product on request
1439330471SD7980T							DIN 7980	THS	Product on request
1439360522BD7980T							DIN 7980	THS	Product on request
1439360522SD7980T							DIN 7980	THS	Product on request
1439420602BD7980T							DIN 7980	THS	Product on request
1439420602SD7980T							DIN 7980	THS	Product on request
1439480670BD7980T							DIN 7980	THS	Product on request
1439480670SD7980T							DIN 7980	THS	Product on request
