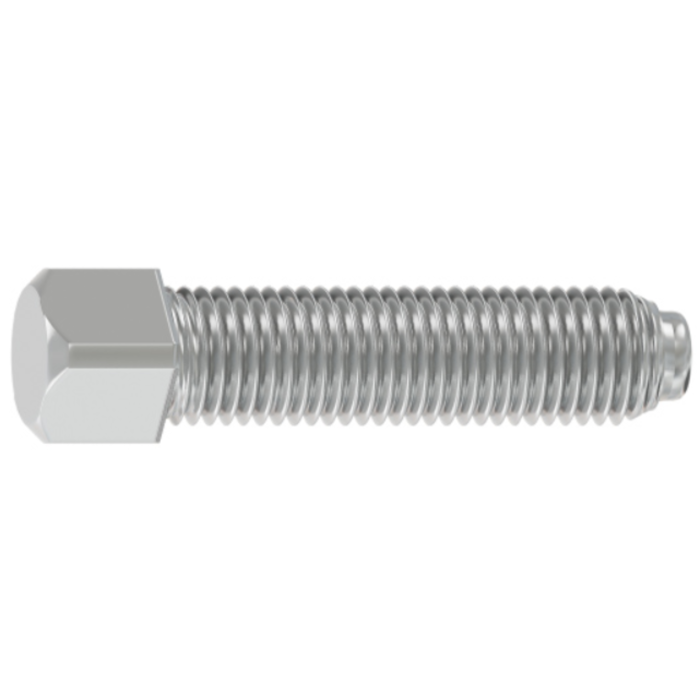

Square head locking screw with a cylindrical pin

The square head locking screw with a cylindrical pin is a fastening element designed for effectively clamping components in various industrial and craft applications. It features a specially designed head shape that enables stable fastening, along with a cylindrical pin that further aids in load distribution.

Applications:

The square head locking screw with a cylindrical pin is widely used in various fields, including:

Construction Industry: For fastening metal and wooden structures, fittings, etc.
Automotive Industry: In the assembly of engines, suspension systems, etc.
Craftsmanship: In carpentry, furniture making, blacksmithing, etc.

Benefits:

Connection Stability: The square head shape ensures even and stable clamping to the mounting surface, resulting in a solid connection.
Increased Strength: The cylindrical pin aids in load distribution, enhancing the strength and stability of the connection.
Durability: Made from high-quality materials, the screw is durable and resistant to corrosion.

View in store

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Dimension d [mm]

Dimension L [mm]

Class of mechanical properties

Variety of coating

Thread pitch

Dimension s [mm]

Dimension k [mm]

Dimension D [mm]

Dimension e [mm]

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension L [mm]	Class of mechanical properties	Variety of coating	Thread pitch	Dimension s [mm]	Dimension k [mm]	Dimension D [mm]	Dimension e [mm]	Standard	Unit of measure	Availability

1150060016S88D479T	M6	16	8.8	raw	1.00	6	6	4		DIN 479	THS	Product on request
1150060020S88D479T	M6	20	8.8	raw	1.00	6	6	4		DIN 479	THS	Product on request
1150060025S88D479T	M6	25	8.8	raw	1.00	6	6	4		DIN 479	THS	Product on request
1150080016S10D479T	M8	16	10.9	raw	1.25	8	8	5.5	2.25	DIN 479	THS	Product on request
1150080020S10D479T	M8	20	10.9	raw	1.25	8	8	5.5	2.25	DIN 479	THS	Product on request
1150080020S88D479T	M8	20	8.8	raw	1.25	8	8	5.5	2.25	DIN 479	THS	Product on request
1150080025S10D479T	M8	25	10.9	raw	1.25	8	8	5.5	2.25	DIN 479	THS	Product on request
1150080025S88D479T	M8	25	8.8	raw	1.25	8	8	5.5	2.25	DIN 479	THS	Product on request
1150080030S10D479T	M8	30	10.9	raw	1.25	8	8	5.5	2.25	DIN 479	THS	Product on request
1150080030S88D479T	M8	30	8.8	raw	1.25	8	8	5.5	2.25	DIN 479	THS	Product on request
1150080035S10D479T	M8	35	10.9	raw	1.25	8	8	5.5	2.25	DIN 479	THS	Product on request
1150080040S10D479T	M8	40	10.9	raw	1.25	8	8	5.5	2.25	DIN 479	THS	Product on request
1150080040S88D479T	M8	40	8.8	raw	1.25	8	8	5.5	2.25	DIN 479	THS	Product on request
1150080050S88D479T	M8	50	8.8	raw	1.25	8	8	5.5	2.25	DIN 479	THS	Product on request
1150100020S10D479T	M10	20	10.9	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150100025S10D479T	M10	25	10.9	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150100025S88D479T	M10	25	8.8	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150100030S10D479T	M10	30	10.9	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150100030S88D479T	M10	30	8.8	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150100035S10D479T	M10	35	10.9	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150100035S88D479T	M10	35	8.8	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150100040S10D479T	M10	40	10.9	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150100040S88D479T	M10	40	8.8	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150100050S10D479T	M10	50	10.9	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150100050S88D479T	M10	50	8.8	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150100060S10D479T	M10	60	10.9	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150100060S88D479T	M10	60	8.8	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150100070S10D479T	M10	70	10.9	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150100070S88D479T	M10	70	8.8	raw	1.5	10	10	7	2.75	DIN 479	THS	Product on request
1150120025S10D479T	M12	25	10.9	raw	1.75	13	12	8.5	3.25	DIN 479	THS	Product on request
1150120030S10D479T	M12	30	10.9	raw	1.75	13	12	8.5	3.25	DIN 479	THS	Product on request
1150120035S10D479T	M12	35	10.9	raw	1.75	13	12	8.5	3.25	DIN 479	THS	Product on request
1150120035S88D479T	M12	35	8.8	raw	1.75	13	12	8.5	3.25	DIN 479	THS	Product on request
1150120040S10D479T	M12	40	10.9	raw	1.75	13	12	8.5	3.25	DIN 479	THS	Product on request
1150120040S88D479T	M12	40	8.8	raw	1.75	13	12	8.5	3.25	DIN 479	THS	Product on request
1150120050S10D479T	M12	50	10.9	raw	1.75	13	12	8.5	3.25	DIN 479	THS	Product on request
1150120050S88D479T	M12	50	8.8	raw	1.75	13	12	8.5	3.25	DIN 479	THS	Product on request
1150120060S10D479T	M12	60	10.9	raw	1.75	13	12	8.5	3.25	DIN 479	THS	Product on request
1150120060S88D479T	M12	60	8.8	raw	1.75	13	12	8.5	3.25	DIN 479	THS	Product on request
1150120080S88D479T	M12	80	8.8	raw	1.75	13	12	8.5	3.25	DIN 479	THS	Product on request
1150160040S10D479T	M16	40	10.9	raw	2	17	16	12	4.3	DIN 479	THS	Product on request
1150160050S10D479T	M16	50	10.9	raw	2	17	16	12	4.3	DIN 479	THS	Product on request
1150160050S88D479T	M16	50	8.8	raw	2	17	16	12	4.3	DIN 479	THS	Product on request
1150160060S10D479T	M16	60	10.9	raw	2	17	16	12	4.3	DIN 479	THS	Product on request
1150160060S88D479T	M16	60	8.8	raw	2	17	16	12	4.3	DIN 479	THS	Product on request
1150160070S10D479T	M16	70	10.9	raw	2	17	16	12	4.3	DIN 479	THS	Product on request
1150160070S88D479T	M16	70	8.8	raw	2	17	16	12	4.3	DIN 479	THS	Product on request
1150160080S88D479T	M16	80	8.8	raw	2	17	16	12	4.3	DIN 479	THS	Product on request
1150160100S88D479T	M16	100	8.8	raw	2	17	16	12	4.3	DIN 479	THS	Product on request
1150160120S88D479T	M16	120	8.8	raw	2	17	16	12	4.3	DIN 479	THS	Product on request
1150200050S88D479T	M20	50	8.8	raw	2.5	22	20	15	5	DIN 479	THS	Product on request
1150200060S88D479T	M20	60	8.8	raw	2.5	22	20	15	5	DIN 479	THS	Product on request
1150200070S88D479T	M20	70	8.8	raw	2.5	22	20	15	5	DIN 479	THS	Product on request
1150200080S88D479T	M20	80	8.8	raw	2.5	22	20	15	5	DIN 479	THS	Product on request
1150200090S88D479T	M20	90	8.8	raw	2.5	22	20	15	5	DIN 479	THS	Product on request
1150200100S88D479T	M20	100	8.8	raw	2.5	22	20	15	5	DIN 479	THS	Product on request
1150200120S88D479T	M20	120	8.8	raw	2.5	22	20	15	5	DIN 479	THS	Product on request
