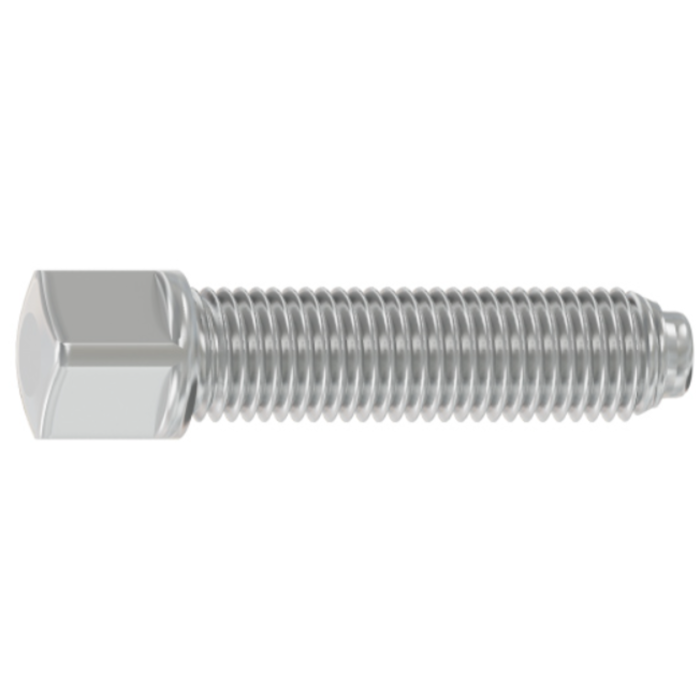

Square head locking screw with a lens pin

The square head locking screw with a lens pin is a specialized type of screw designed for securely and precisely fastening components. It features a unique head shape that allows for effective clamping of elements, while also providing additional functionality through the lens pin.

Applications:

The square head locking screw with a lens pin is used in various fields, including:

Machinery Industry: For fastening subassemblies, structural elements, etc.
Automotive Industry: In the assembly of engines, suspension systems, etc.
Craftsmanship: In carpentry, furniture making, blacksmithing, etc.

Benefits:

Connection Stability: The square head shape ensures even and stable clamping to the mounting surface.
Additional Functionality: The lens pin protects the surface from damage and allows for better load distribution.
Durability: Made from high-quality materials, the screw is durable and resistant to environmental conditions.

View in store

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Dimension d [mm]

Dimension L [mm]

Class of mechanical properties

Variety of coating

Thread pitch

Dimension s [mm]

Dimension k [mm]

Dimension D [mm]

Dimension D1 [mm]

Dimension h [mm]

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension L [mm]	Class of mechanical properties	Variety of coating	Thread pitch	Dimension s [mm]	Dimension k [mm]	Dimension D [mm]	Dimension D1 [mm]	Dimension h [mm]	Standard	Unit of measure	Availability

1149080016S10D480T	M8	16	10.9	raw	1.25	8	11	10	5.5	2.88	DIN 480	THS	Product on request
1149080018S10D480T	M8	18	10.9	raw	1.25	8	11	10	5.5	2.88	DIN 480	THS	Product on request
1149080020S10D480T	M8	20	10.9	raw	1.25	8	11	10	5.5	2.88	DIN 480	THS	Product on request
1149080025S10D480T	M8	25	10.9	raw	1.25	8	11	10	5.5	2.88	DIN 480	THS	Product on request
1149080030S10D480T	M8	30	10.9	raw	1.25	8	11	10	5.5	2.88	DIN 480	THS	Product on request
1149080040S10D480T	M8	40	10.9	raw	1.25	8	11	10	5.5	2.88	DIN 480	THS	Product on request
1149100025S10D480T	M10	25	10.9	raw	1.5	10	13	13	7	2.88	DIN 480	THS	Product on request
1149100030S10D480T	M10	30	10.9	raw	1.5	10	13	13	7	2.88	DIN 480	THS	Product on request
1149100040S10D480T	M10	40	10.9	raw	1.5	10	13	13	7	2.88	DIN 480	THS	Product on request
1149100050S10D480T	M10	50	10.9	raw	1.5	10	13	13	7	2.88	DIN 480	THS	Product on request
1149100060S10D480T	M10	60	10.9	raw	1.5	10	13	13	7	2.88	DIN 480	THS	Product on request
1149120030S10D480T	M12	30	10.9	raw	1.75	13	16	17	8.5	3.85	DIN 480	THS	Product on request
1149120040S10D480T	M12	40	10.9	raw	1.75	13	16	17	8.5	3.85	DIN 480	THS	Product on request
1149120050S10D480T	M12	50	10.9	raw	1.75	13	16	17	8.5	3.85	DIN 480	THS	Product on request
1149120060S10D480T	M12	60	10.9	raw	1.75	13	16	17	8.5	3.85	DIN 480	THS	Product on request
1149160040S10D480T	M16	40	10.9	raw	2	17	20	22	12	3.85	DIN 480	THS	Product on request
1149160050S10D480T	M16	50	10.9	raw	2	17	20	22	12	3.85	DIN 480	THS	Product on request
1149160060S10D480T	M16	60	10.9	raw	2	17	20	22	12	3.85	DIN 480	THS	Product on request
1149160070S10D480T	M16	70	10.9	raw	2	17	20	22	12	3.85	DIN 480	THS	Product on request
1149160080S10D480T	M16	80	10.9	raw	2	17	20	22	12	3.85	DIN 480	THS	Product on request
1149200060S10D480T	M20	60	10.9	raw	2.5	22	25	28	15	4.85	DIN 480	THS	Product on request
1149200070S10D480T	M20	70	10.9	raw	2.5	22	25	28	15	4.85	DIN 480	THS	Product on request
