Square nut low INOX

I15
.
30

The low square nut made of stainless steel (inox) is a robust fastening element that combines durability, aesthetics, and corrosion resistance. Its low profile makes it ideal for applications in confined spaces, where both stability and functionality of the connection are crucial.

Applications:
The low square nut finds applications in various fields, such as construction, furniture manufacturing, electronics, and other industries where secure and aesthetically pleasing fastening is required.

Benefits:

  • Durability: Stainless steel inox ensures corrosion resistance, prolonging the nut's lifespan.
  • Compact Design: The low profile allows for installation in tight spaces while maintaining connection stability.
  • Aesthetics: The square shape provides a modern and aesthetically pleasing appearance, which is important in many applications.
  • Versatility: The nut is suitable for various industries, making it a versatile fastening component.
  • Ease of Installation: The square shape simplifies the installation process, enhancing work efficiency.

Recommended

Group
I1530

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Dimension d [mm]
Dimension m [mm]
Dimension s [mm]
Material
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes

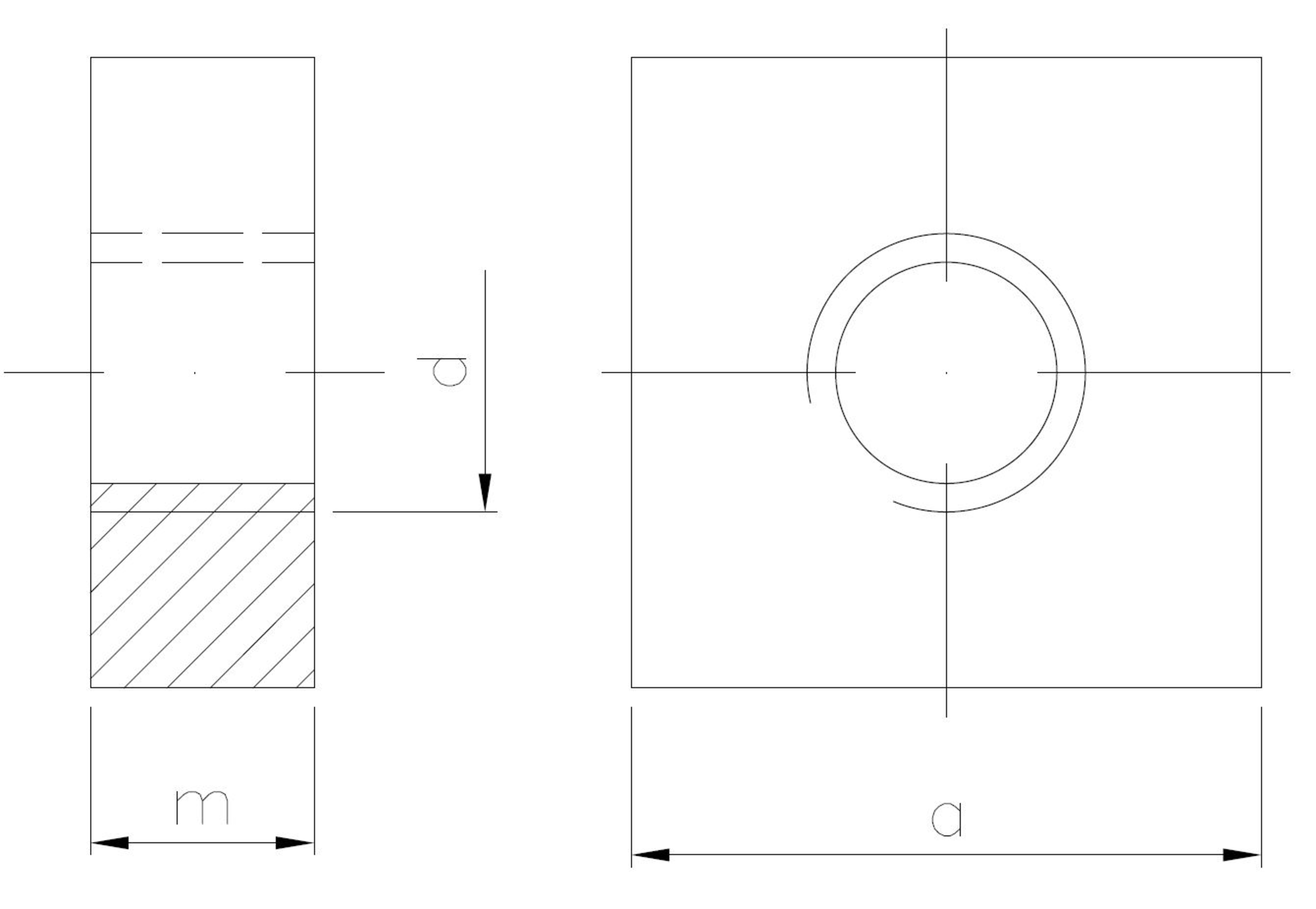

Dimension d [mm] Dimension m [mm] Dimension s [mm] Material Standard Unit of measure Availability Show More
I1530020A2D562T
M2 1.2 4 A2 DIN 562 THS
I1530020A4D562T
M2 1.2 4 A4 DIN 562 THS
I1530025A2D562T
M2.5 1.6 5 A2 DIN 562 THS
I1530025A4D562T
M2.5 1.6 5 A4 DIN 562 THS
I1530030A2D562T
M3 1.8 5.5 A2 DIN562 THS
I1530030A4D562T
M3 1.8 5.5 A4 DIN 562 THS
I1530040A2D562T
M4 2.2 7 A2 DIN562 THS
I1530040A4D562T
M4 2.2 7 A4 DIN 562 THS
I1530050A2D562T
M5 2.7 8 A2 DIN 562 THS
I1530050A4D562T
M5 2.7 8 A4 DIN 562 THS
I1530060A2D562T
M6 3.2 10 A2 DIN 562 THS
I1530060A4D562T
M6 3.2 10 A4 DIN 562 THS
I1530080A2D562T
M8 4.0 13 A2 DIN562 THS
I1530080A4D562T
M8 4.0 13 A4 DIN 562 THS
I1530100A2T
M10 5.0 17 A2 DIN 562 THS
I1530100A4T
M10 5.0 17 A4 DIN 562 THS
