Square nut

View in store

DOWNLOADABLE DOCUMENTS

Declarations of conformity

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

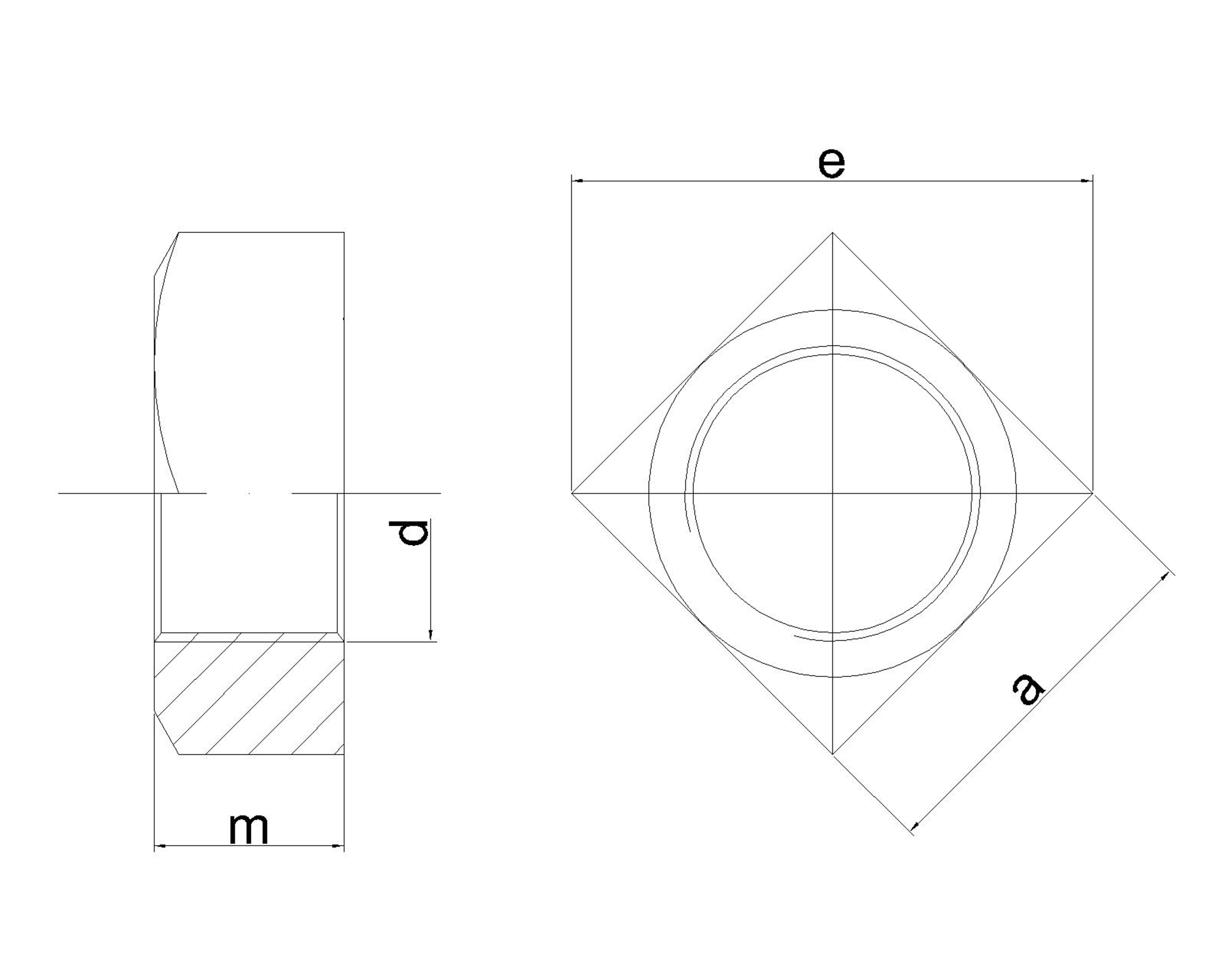

Dimension d [mm]

Dimension m [mm]

Variety of coating

Dimension s [mm]

Dimension e [mm]

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension m [mm]	Variety of coating	Dimension s [mm]	Dimension e [mm]	Standard	Unit of measure	Availability

1531050BD557T	M5	4.0		8	11.3	DIN 557	THS	Product on request
1531050SD557T	M5	4.0	raw	8	11.3	DIN 557	THS	Product on request
1531060BD557T	M6	5.0		10	14.1	DIN 557	THS	The product is available
1531060SD557T	M6	5.0	raw	10	14.1	DIN 557	THS	Product on request
1531080BD557T	M8	6.5		13	18.4	DIN 557	THS	The product is available
1531080SD557T	M8	6.5	raw	13	18.4	DIN 557	THS	Product on request
1531100BD557T	M10	8.0		17	24.0	DIN 557	THS	The product is available
1531120BD557T	M12	10.0		19	26.9	DIN 557	THS	The product is available
1531160BD557T	M16	13.0		24	33.9	DIN 557	THS	Product on request
1531160SD557T	M16	13.0	raw	24	33.9	DIN 557	THS	Product on request
