Square taper washer for C-sections

14
.
20

The wedge washer for C-sections is a practical mounting element specifically designed for C-sections and other metal profiles. Its shape allows for precise fitting and filling of any gaps or spaces in connections, leading to greater stability and efficiency in the structure.

Applications

The wedge washer for C-sections is used wherever it is necessary to fill gaps and spaces in the connections of C-sections and other metal profiles. It is an ideal solution in construction, industry, steel structures, and other applications where precise fitting is essential.

Features and Benefits

  • Wedge Shape: The wedge shape enables precise fitting and filling of gaps in connections.

  • Increased Stability: Enhances the stability of connections and the efficiency of the structure.

  • Durable Material: Made from sturdy materials, ensuring longevity and resistance to weather conditions.

  • Minimizes Pressure: Reduces stress on mounting elements, protecting against deformation and damage.

  • Easy Installation: Simple to install and integrate with C-sections and other construction elements.

  • Excellent Quality and Durability: High-quality manufacturing ensures reliability and long-lasting performance.

Recommended

Group
1420

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Hole diameter M [mm]
Inner diameter d [mm]
Height h [mm]
Variety of coating
Dimension s [mm]
Standard
Width a [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes

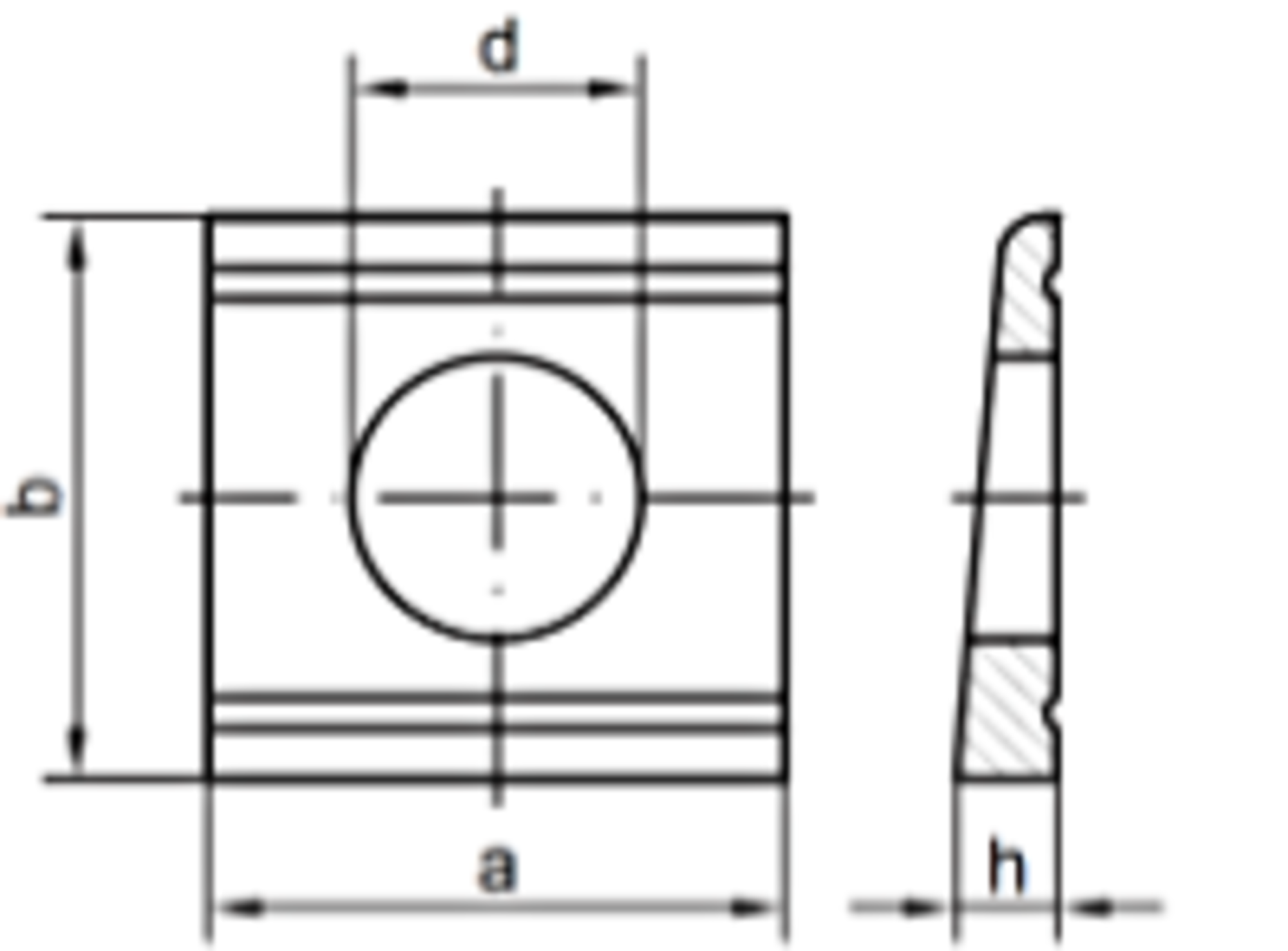

Hole diameter M [mm] Inner diameter d [mm] Height h [mm] Variety of coating Dimension s [mm] Standard Width a [mm] Unit of measure Availability Show More
1420080BD434T
M8 9 3.8 white zinc plating 22 DIN 434 22 THS
1420080GD434T
M8 9 3.8 hot-dip galvanized 22 DIN 434 22 THS
1420080SD434T
M8 9 3.8 raw 22 DIN 434 22 THS
1420100BD434T
M10 11 3.8 white zinc plating 22 DIN 434 22 THS
1420100GD434T
M10 11 3.8 hot-dip galvanized 22 DIN 434 22 THS
1420100SD434T
M10 11 3.8 raw 22 DIN 434 22 THS
1420120BD434T
M12 13.5 4.9 white zinc plating 30 DIN 434 26 THS
1420120GD434T
M12 13.5 4.9 hot-dip galvanized 30 DIN 434 26 THS
1420120SD434T
M12 13.5 4.9 raw 30 DIN 434 26 THS
1420160BD434T
M16 17.5 5.9 white zinc plating 36 DIN 434 32 THS
1420160GD434T
M16 17.5 5.9 hot-dip galvanized 36 DIN 434 32 THS
1420160SD434T
M16 17.5 5.9 raw 36 DIN 434 32 THS
1420200BD434T
M20 22 7.0 white zinc plating 44 DIN 434 40 THS
1420200GD434T
M20 22 7.0 hot-dip galvanized 44 DIN 434 40 THS
1420200SD434T
M20 22 7.0 raw 44 DIN 434 40 THS
1420220BD434T
M22 24 8.0 white zinc plating 50 DIN 434 44 THS
1420220GD434T
M22 24 8.0 hot-dip galvanized 50 DIN 434 44 THS
1420220SD434T
M22 24 8.0 raw 50 DIN 434 44 THS
1420240BD434T
M24 26 8.5 white zinc plating 56 DIN 434 56 THS
1420240GD434T
M24 26 8.5 hot-dip galvanized 56 DIN 434 56 THS
1420240SD434T
M24 26 8.5 raw 56 DIN 434 56 THS
1420300BD434T
M30 33 9 white zinc plating 62 DIN 434 62 THS
1420300GD434T
M30 33 9 hot-dip galvanized 62 DIN 434 62 THS
