Steel clamping ring

OB.ST

The Steel Clamping Ring is a robust fastening element designed for secure and durable connections of various components. Made from high-quality steel, this clamp features strength, weather resistance, and ease of installation.

Applications:

For securing sewer, water, gas, and central heating installations.
Construction: Used for securing pipes, cables, and structural elements.
Automotive: Employed for connecting components in exhaust systems, cooling systems, etc.
Industry: The clamp is utilized in industrial installations for connecting and securing various components.
Plumbing: Used in plumbing systems for securing pipes.

Benefits:

Durability: The sturdy steel construction ensures a long product lifespan.
Corrosion Resistance: A special anti-corrosion coating protects the clamp from atmospheric factors.
Versatility: Availability in various sizes allows for widespread use in different industries.
Easy Installation: The clamping mechanism guarantees simple and quick installation of the ring.

View in store

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Size

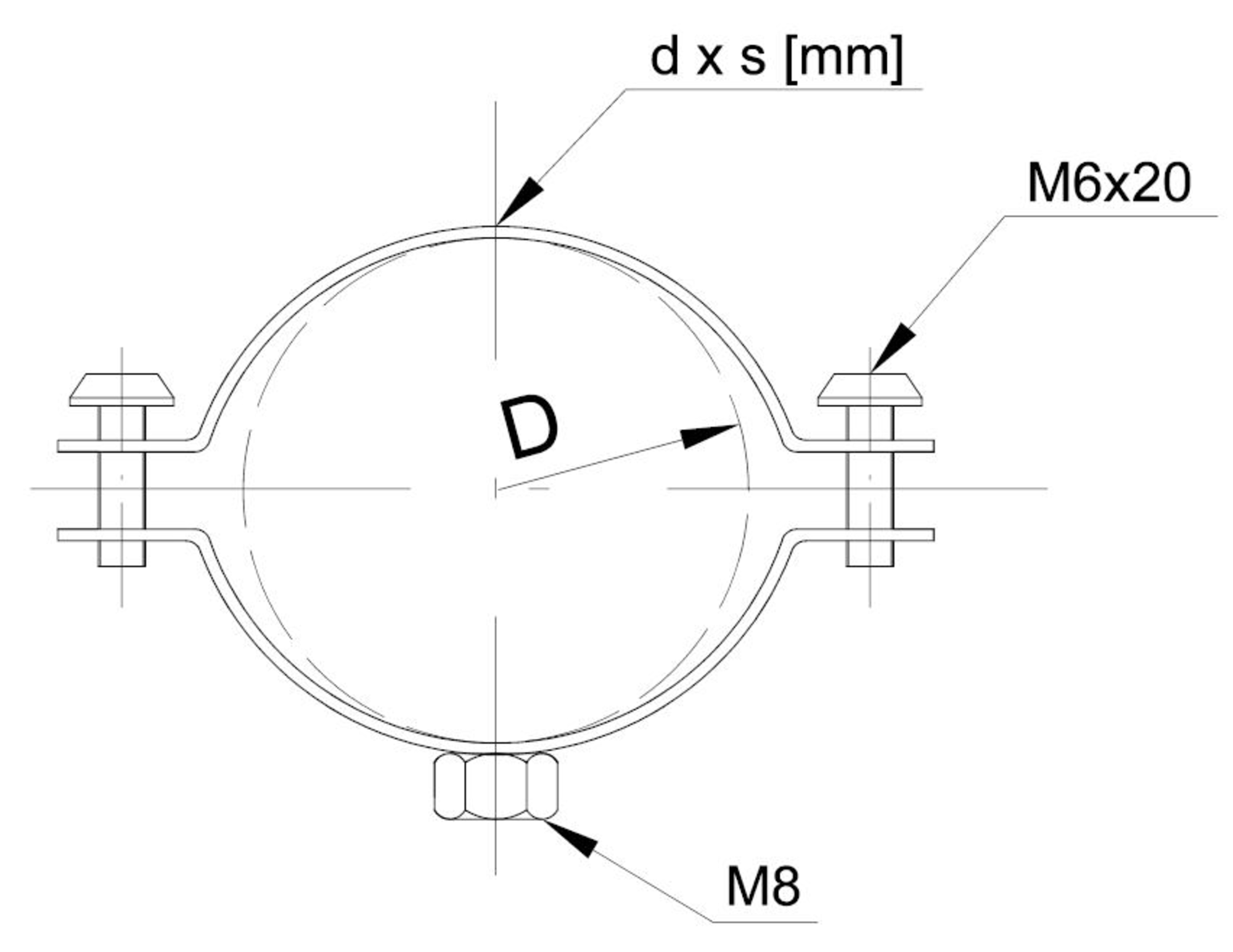

Dimension D [mm]

Dimension s [mm]

Dimension d [mm]

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Size	Dimension D [mm]	Dimension s [mm]	Dimension d [mm]	Unit of measure	Availability

64060038GWS	3/8"	14-18			PCS	Product on request
64060050GWS	1/2"	20-26			PCS	Product on request
64060050S	1/2''	20-26	1.5	20	PCS	The product is available
64060075GWS	3/4"	23-30			PCS	Product on request
64060075S	3/4''	23-30	1.5	20	PCS	The product is available
64060100GWS	1"	32-38			PCS	Product on request
64060100S	1''	32-38	1.5	20	PCS	The product is available
64060125GWS	1 1/4"	39-46			PCS	Product on request
64060125S	1 1/4''	39-46	1.5	20	PCS	The product is available
64060150GWS	1 1/2"	48-54			PCS	Product on request
64060150S	1 1/2''	48-54	1.5	20	PCS	The product is available
64060200GWS	2"	62-69			PCS	Product on request
64060200S	2''	62-69	1.5	20	PCS	The product is available
64060250GWS	2 1/2"	69-78			PCS	Product on request
64060250S	2 1/2''	69-78	1.5	20	PCS	The product is available
64060300GWS	3"	85-91			PCS	Product on request
64060350GWS	3 1/2"	97-101			PCS	Product on request
64060400GWS	4"	108-116			PCS	Product on request
64060400S	4''	108-116	2.5	20	PCS	The product is available
64060500GWS	5"	130-145			PCS	Product on request
64060600GWS	6"	159-168			PCS	Product on request
64060800GWS	8"	210-218			PCS	Product on request
64061000GWS	10"	246-252			PCS	Product on request
6406200GWS	200mm	198-205			PCS	Product on request
