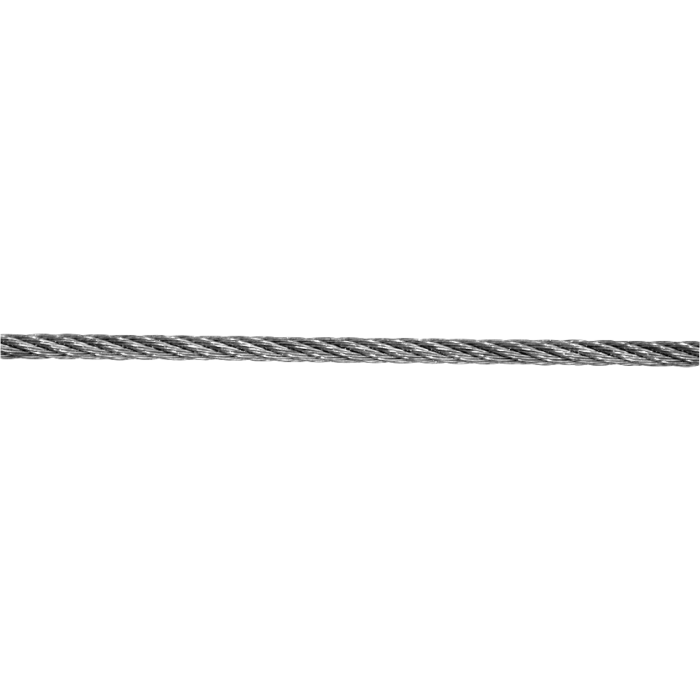

Steel galvanized rope

63
.
01

A steel galvanized rope is a structural product composed of multiple thin wires made from galvanized steel, twisted together into the form of a rope. The galvanization process involves coating the rope with a thin layer of zinc, which provides protection against corrosion and extends the product's durability. Galvanized steel ropes are available in various diameters and lengths, making them adaptable to different applications.

FC - fiber core made from natural or synthetic materials.

Applications:

  • Construction: Steel ropes are used for supporting and lifting heavy construction elements, such as on building sites.
  • Industry: They are employed in industry for lifting and moving loads, pulling tools, and many other purposes.
  • Agriculture: Ropes are utilized in agriculture for working with tractors, farming machinery, and other tools.
  • Sailing: In sailing, steel ropes serve as sheets, ladders, anchor ropes, and steering ropes on boats.
  • Other Uses: These products are also used for general purposes, climbing, vehicle towing, and in many other fields.

Benefits:

  • Strength: Steel ropes are known for their high load-bearing capacity and resistance to stress.
  • Corrosion Protection: Galvanization shields the ropes from moisture and corrosion.
  • Versatility: The product can be applied across a wide range of industries and applications.
  • Durability: Galvanized steel ropes are long-lasting and highly durable.
DOWNLOADABLE DOCUMENTS

Recommended

Group
6301

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Type of weave
Diameter d [mm]
Variety/type
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Type of weave Diameter d [mm] Variety/type Unit of measure Availability Show More
6301010OC1X07M
1X7 1.0 DIN 3052 M
6301010OC1X19M
1X19 1.0 DIN 3053 M
6301012OC1X19M
1.2 DIN 3053 M
6301015OC1X07M
1X7 1.5 DIN 3052 M
6301015OC1X19M
1X19 1.5 DIN 3053 M
6301015OC6X07M
6X7FC 1.5 DIN 3055 M
6301016OC1X07M
1X07 1.6 M
6301018OC6X07M
6X07FC 1.8 DIN 3055 M
6301020OC1X19M
1X19 2.0 DIN 3053 M
6301020OC6X7M
6X7FC 2.0 DIN 3055 M
6301025OC1X19M
1X19 2.5 M
6301025OC6X07M
6X7FC 2.5 DIN 3055 M
6301030OC6X07M
6X7FC 3.0 DIN 3055 M
6301030OC6X19M
3.0 DIN 3060 M
6301040OC6X07M
6X07FC 4.0 DIN 3055 M
6301040OC6X19M
6X19FC 4.0 DIN 3060 M
6301050OC6X07M
6X07FC 5.0 DIN 3055 M
6301050OC6X19M
5.0 DIN 3060 M
6301060OC6X07M
6x7 6.0 M
6301060OC6X19M
6X19FC 6.0 DIN 3060 M
6301063OC6X19M
6.3 M
6301080OC6X19M
6X19FC 8.0 DIN 3060 M
6301080OC6X37M
8.0 DIN 3066 M
6301100OC6X19M
6X19FC 10.0 DIN 3060 M
6301100OC6X37M
6X37FC 10.0 DIN 3066 M
6301110OC6X37M
6x37 11.0 M
6301120OC6X19M
6x19 12.0 DIN 3060 M
6301120OC6X37M
6X37FC 12.0 DIN 3066 M
6301130OC6X37M
6X37FC 13.0 DIN 3066 M
6301140OC6X37M
6X37FC 14.0 DIN 3066 M
6301160OC6X37M
6X37FC 16.0 DIN 3066 M
6301180OC6X37M
18.0 DIN 3066 M
6301200OC6X37M
6X37FC 20.0 DIN 3066 M
